Instrument Panel To Steering Column Connector:

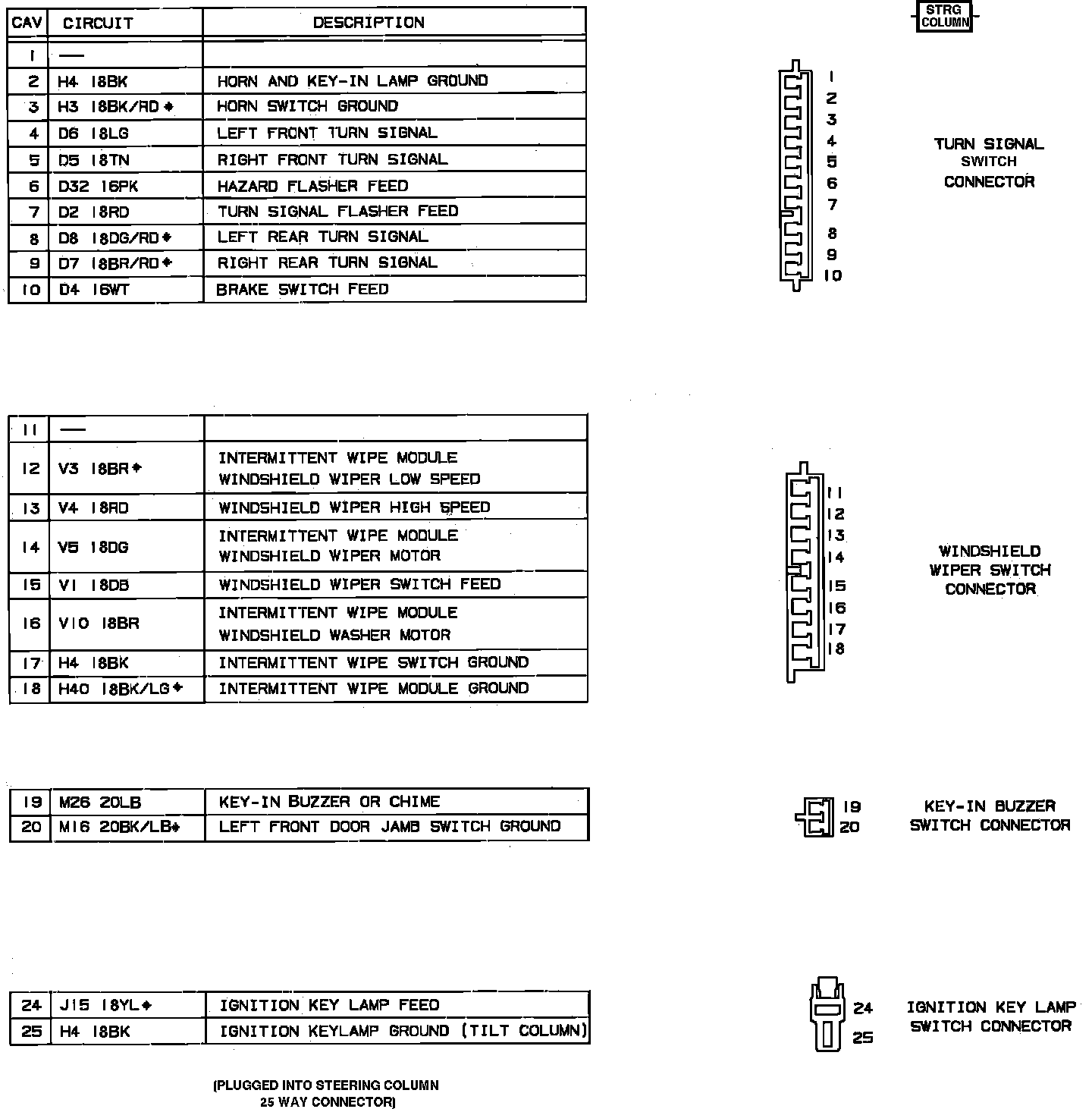

Fig. 7 Instrument Panel To Steering Column Connector (Part 1 of 2):
