Speed Control (SC) Tests
>>
SC-4A System Power Supply Circuit
SC-4A System Power Supply Circuit

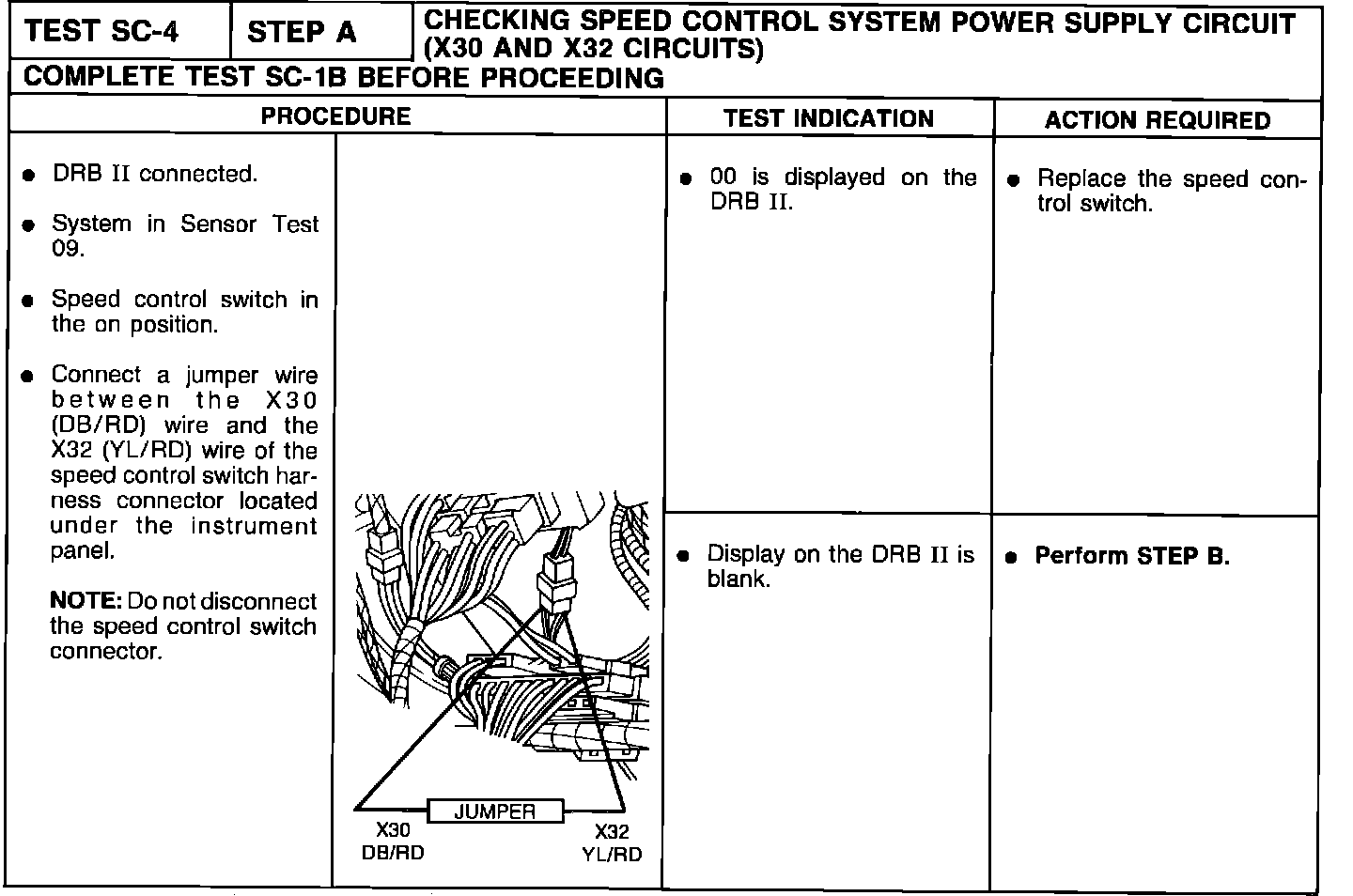

SC 4-Step A: System Power Supply Circuit:
