Omni L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Console
Console

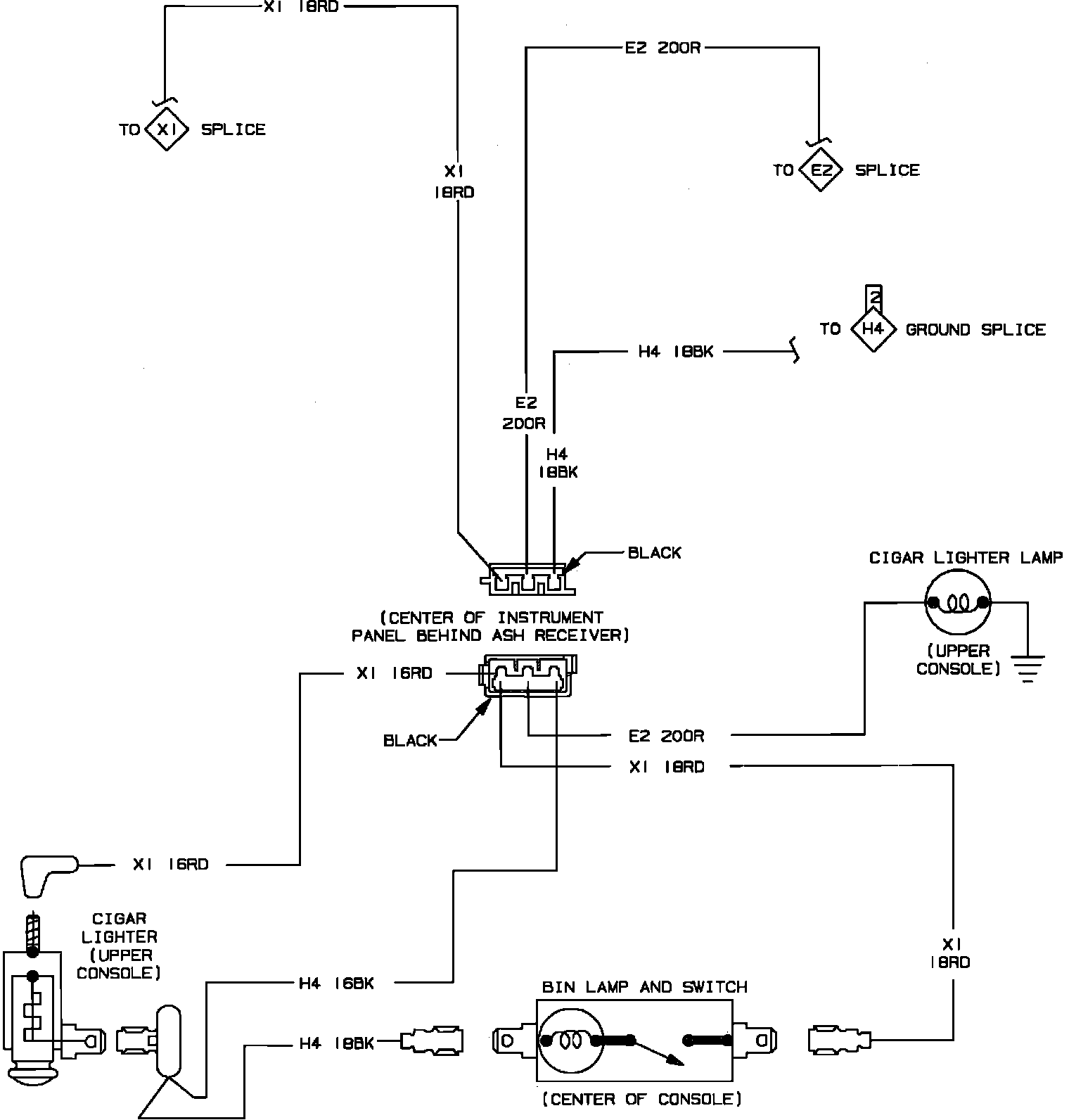

Console System Wiring Circuit:
