Bulkhead Connector
>>
Engine Compartment Side
Engine Compartment Side

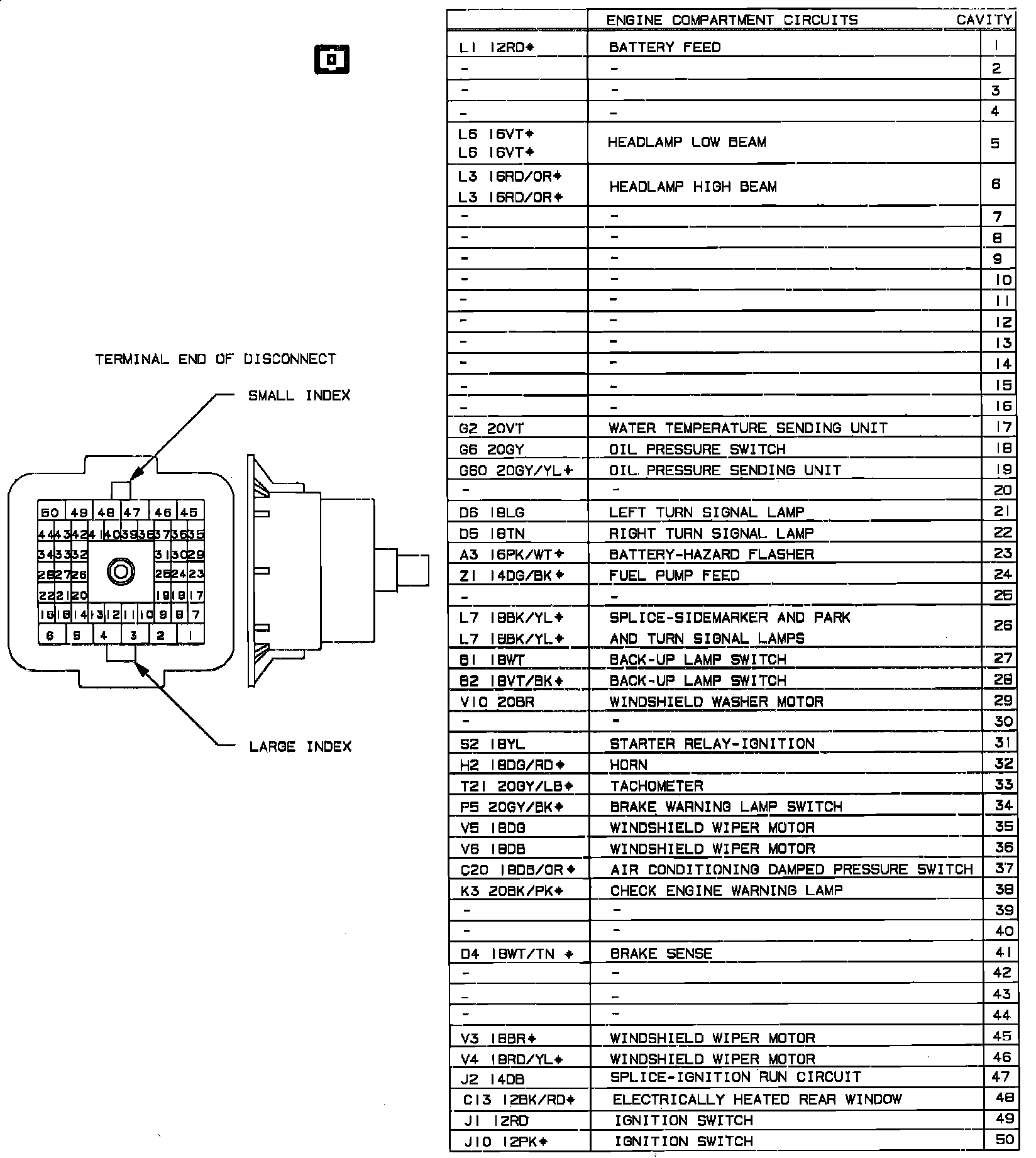

Bulkhead Connector. Engine Side:
