Front Door Weatherstrip: Service and Repair

Door Weatherstrip:

DOOR WEATHERSTRIP

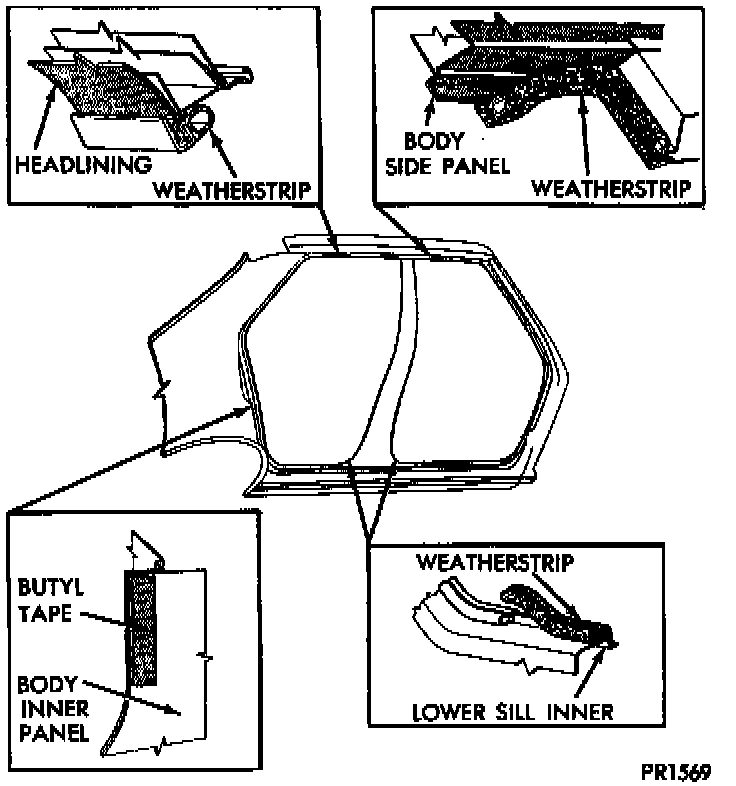

On four door models the weatherstrip is installed by pushing it over the fence, making sure that contact is made with the fence around corners and clinching it tightly around entire perimeter to avoid water leaks, puckering and stretching. Trim ends should overlap 6.3mm (0.25 inch).

When the glass up-stop, roof rail weatherstrip and glass are properly adjusted, the outer lip of weatherstrip will seal along the top outer edge of the glass and the inner lip of weatherstrip will seal along the top inside of glass.

Front Door Glass Adjusting Points:

FRONT DOOR - OUTER BELT WEATHERSTRIP
1. Remove door trim panel and plastic air shield.
2. Align fasteners (17), (18), and (19) with access holes in door inner panel and remove fasteners.
3. Loosen screw from bracket.
4. Lower window until lift channel (5) is accessible through access hole, disengage lift channel from glass studs and lower window to bottom of door.
5. Remove outer belt weatherstrip by disengaging spring clip tabs from door panel slots.
6. Reverse above procedure for installation making sure plastic air shield is cemented to door inner panel.

REAR DOOR - OUTER BELT WEATHERSTRIP
1. Remove door trim panel and plastic air shield.
2. Remove fasteners (19) and lower glass to bottom of door.
3. Remove division bar assembly.
4. Remove weatherstrip by applying an upwards force to disengage retaining spring clips from outer door panel.
5. Reverse above procedure for installation, making sure plastic air shield is cemented to door inner panel.
