Rear Seat Assembly

Rear Seat Back:

REAR SEAT BACK
1. Remove right side seat belt retractor cover.
2. Remove retaining clip from seat back pivot.
3. Push seat towards left pivot bracket until right pivot clears bracket.
4. Remove seat back from vehicle.
5. Reverse above procedure for installation.

Rear Seat Cushion Mounting:

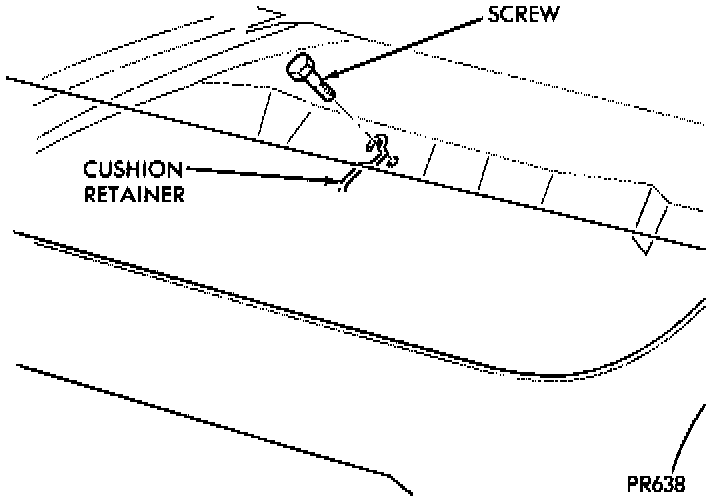

Rear Seat Cushion Retainers:

REAR SEAT CUSHION
1. Remove rear seat back.
2. Remove cushion retaining screw.
3. Slide cushion forward to disengage the front retainers and remove seat from vehicle.
4. Reverse above procedure for installation.
