NS-7D Check Ignition Coil Primary Windings
NS-7D Check Ignition Coil Primary Windings

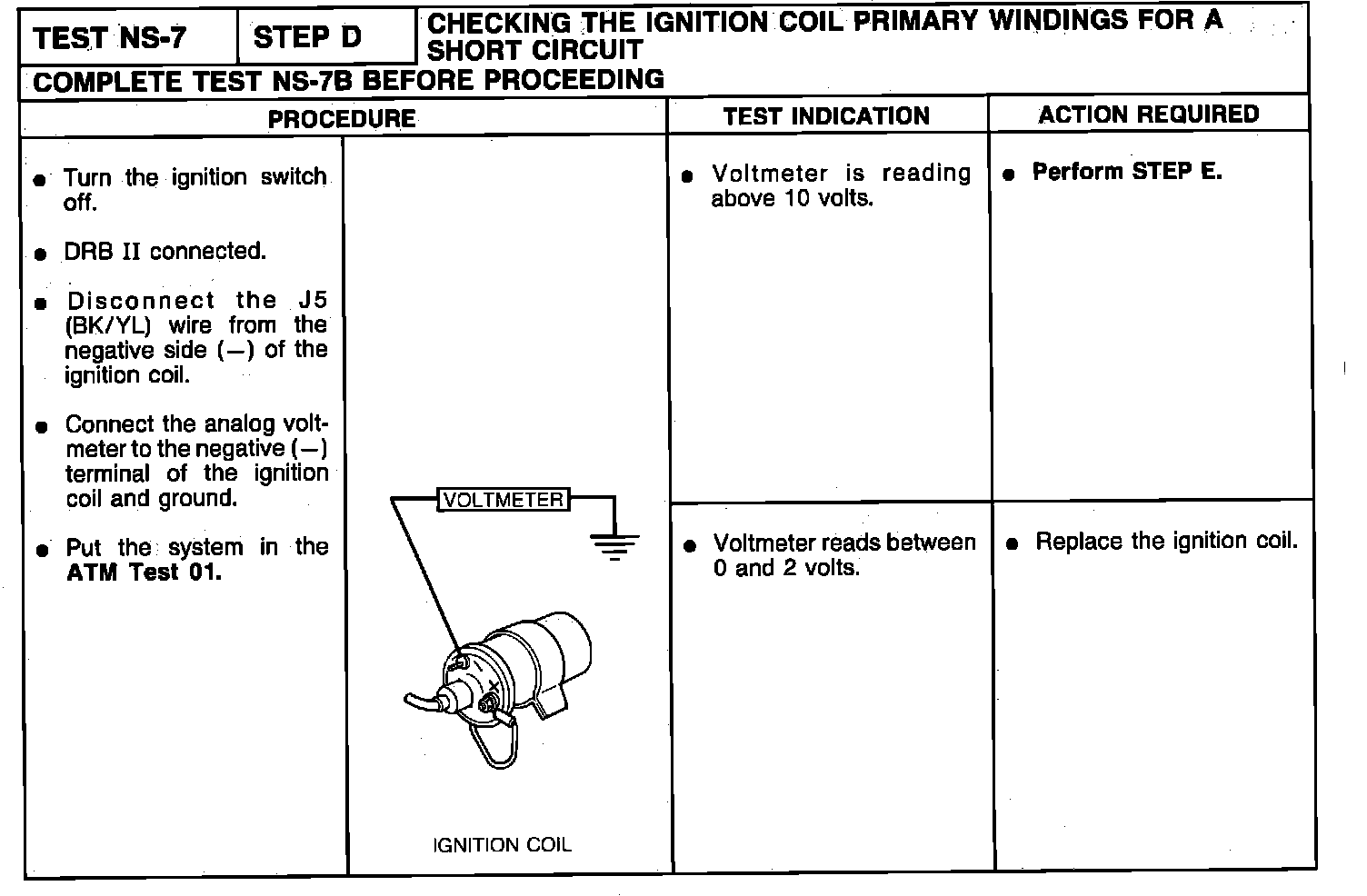

NS 7-Step D: Ignition Coil Primary Windings:
