Dodge
>>
1988
>>
Lancer L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Without Intermittent Wiper System
Without Intermittent Wiper System

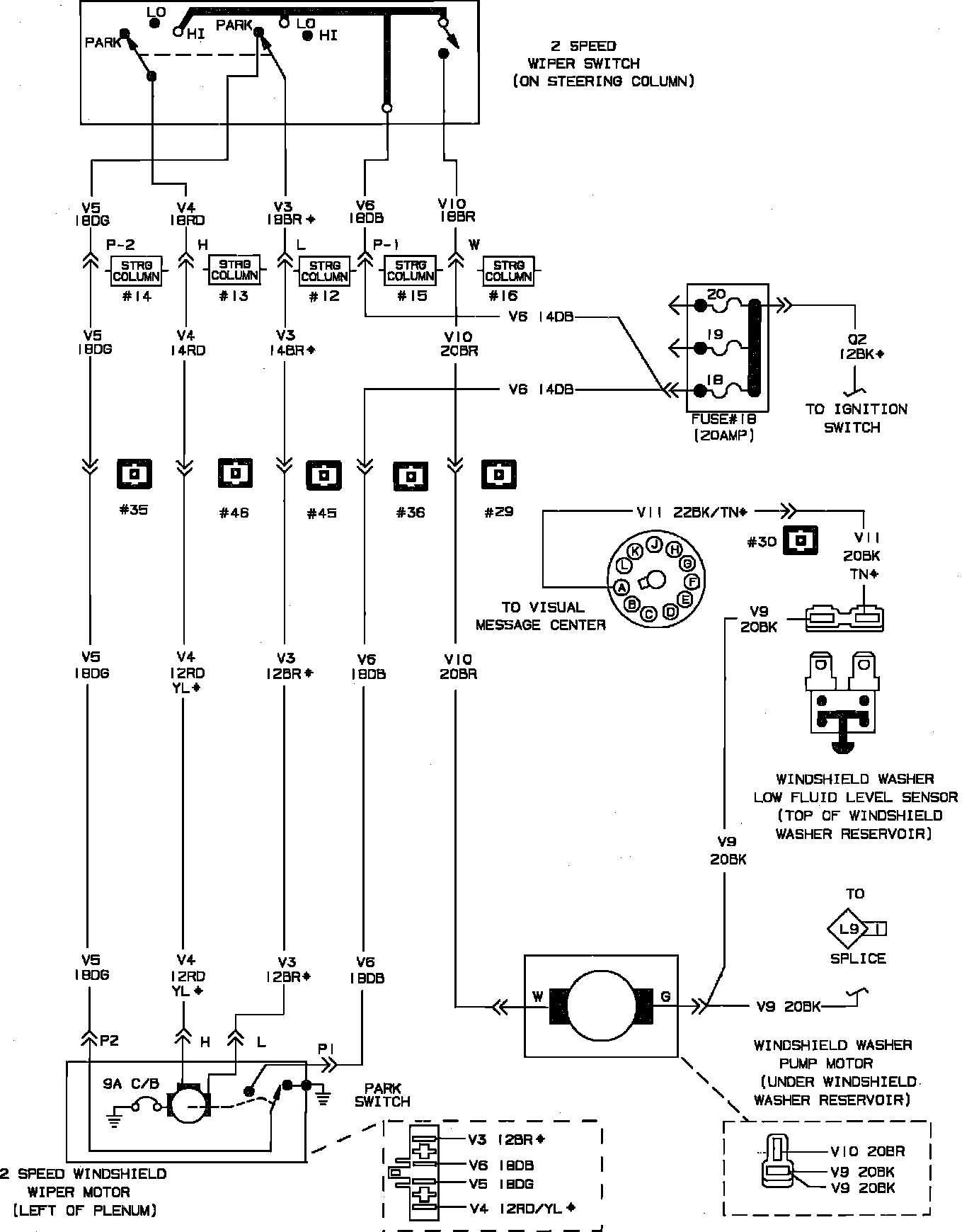

Windshield Wiper System Wiring Circuit. Less Intermittent:
