With Intermittent Wiper

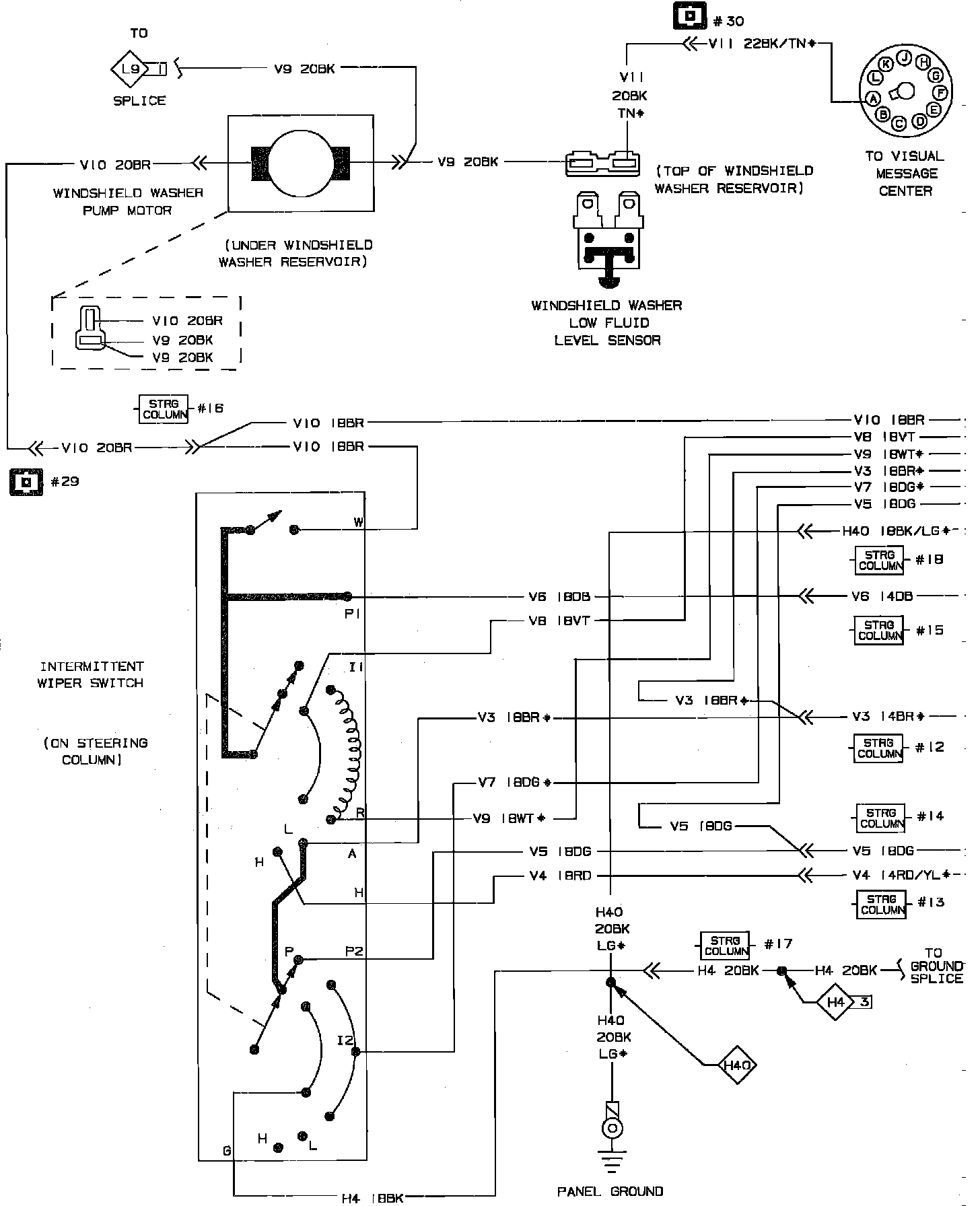

Windshield Wiper System Wiring Circuit, With Intermittent (Part 1 of 2):

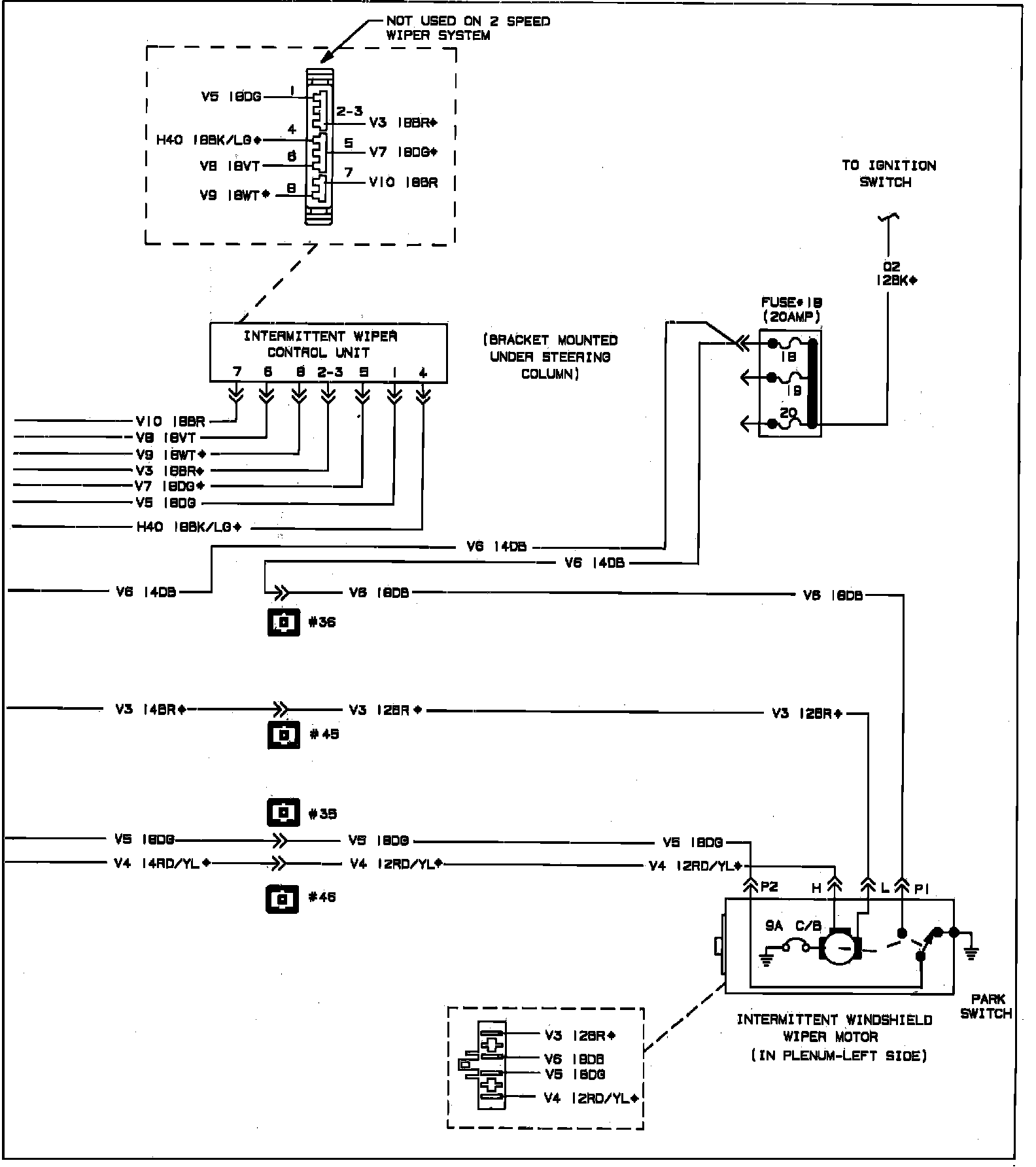

Windshield Wiper System Wiring Circuit, With Intermittent (Part 2 of 2):
