Lancer L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
Mirrors

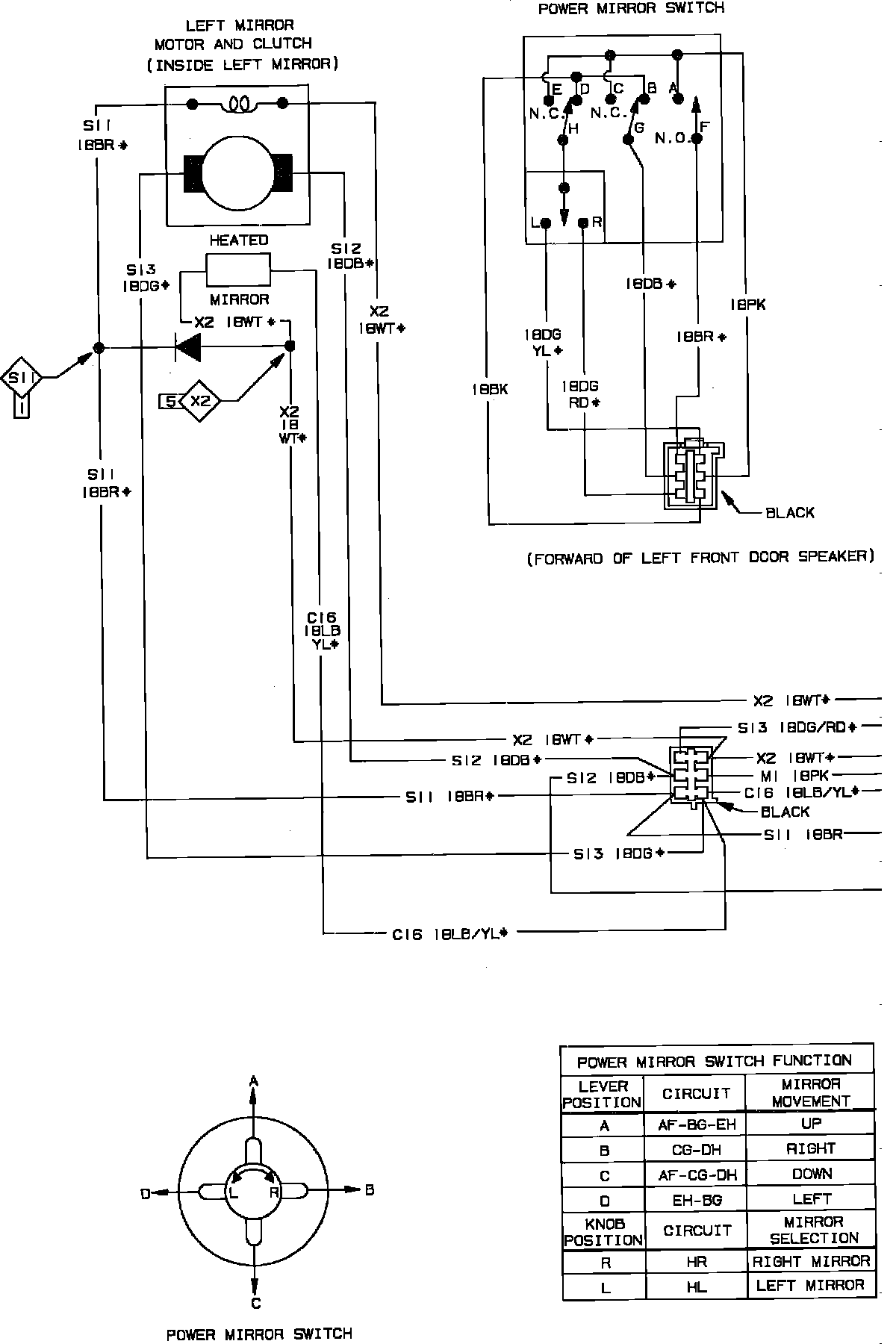

Power Mirrors Wiring Circuit (Part 1 of 2):

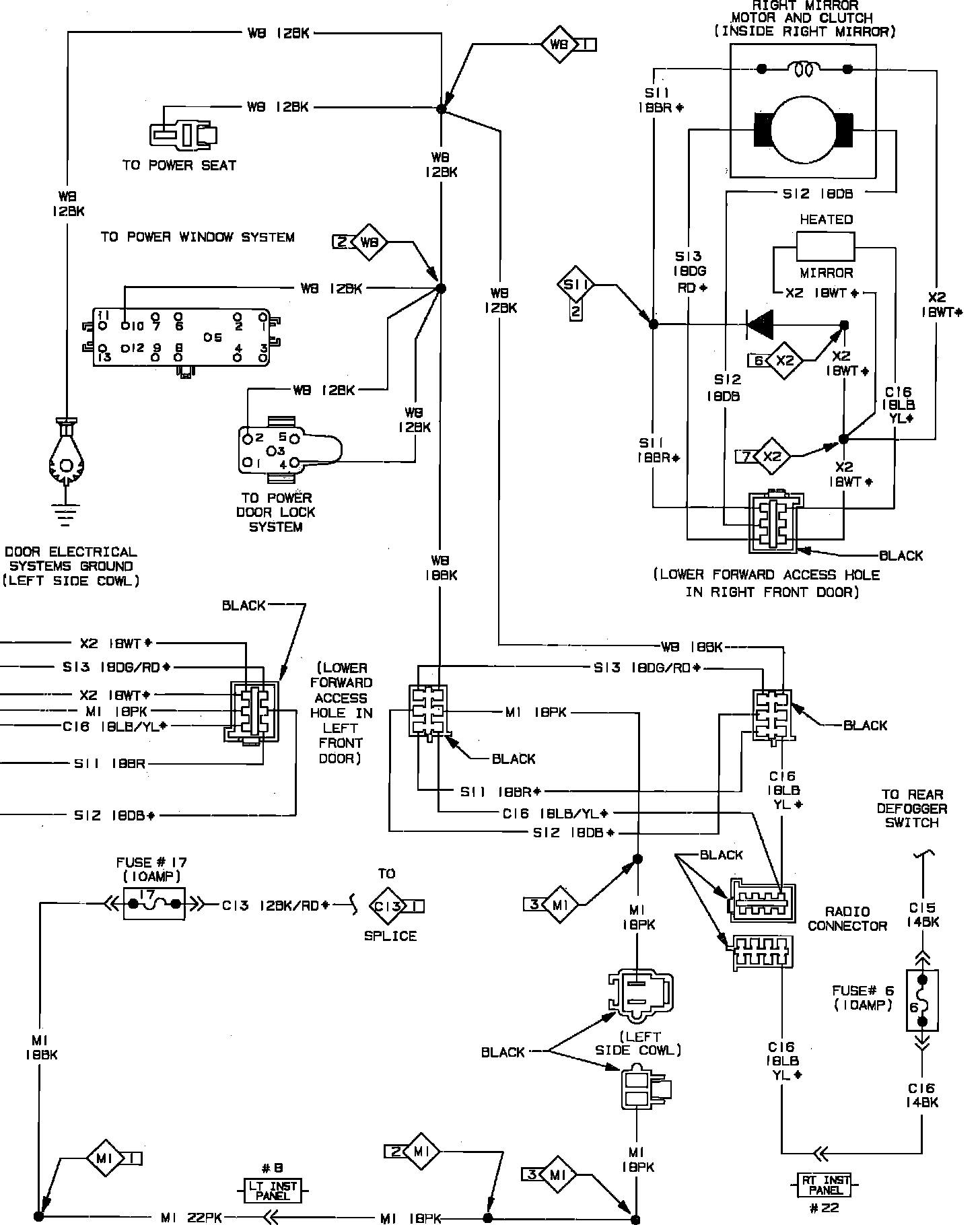

Power Mirrors Wiring Circuit (Part 2 of 2):
