Lancer L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signals
Turn Signals

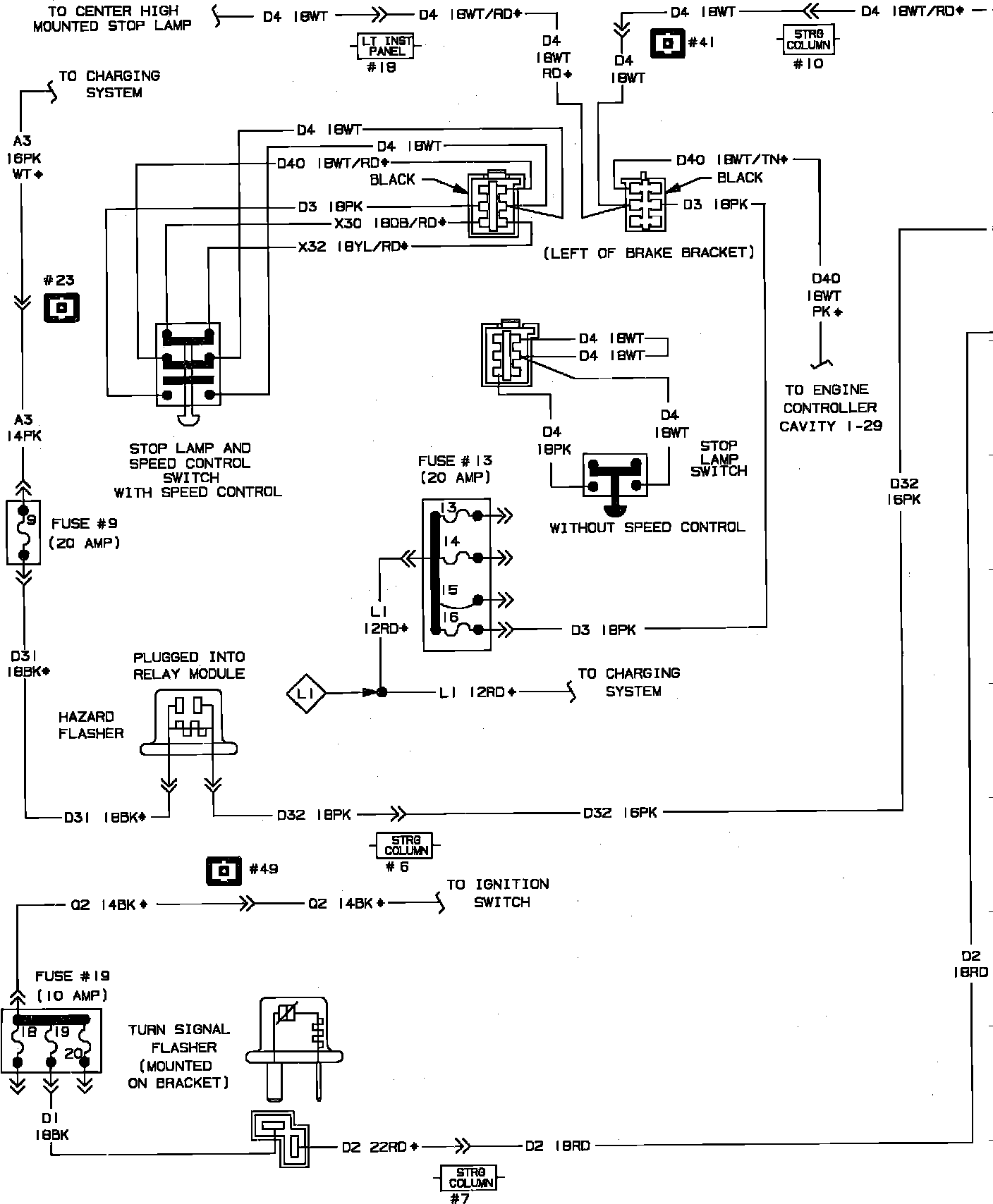

Hazard, Stop & Turn Flasher Wiring Circuit (Part 1 of 2):

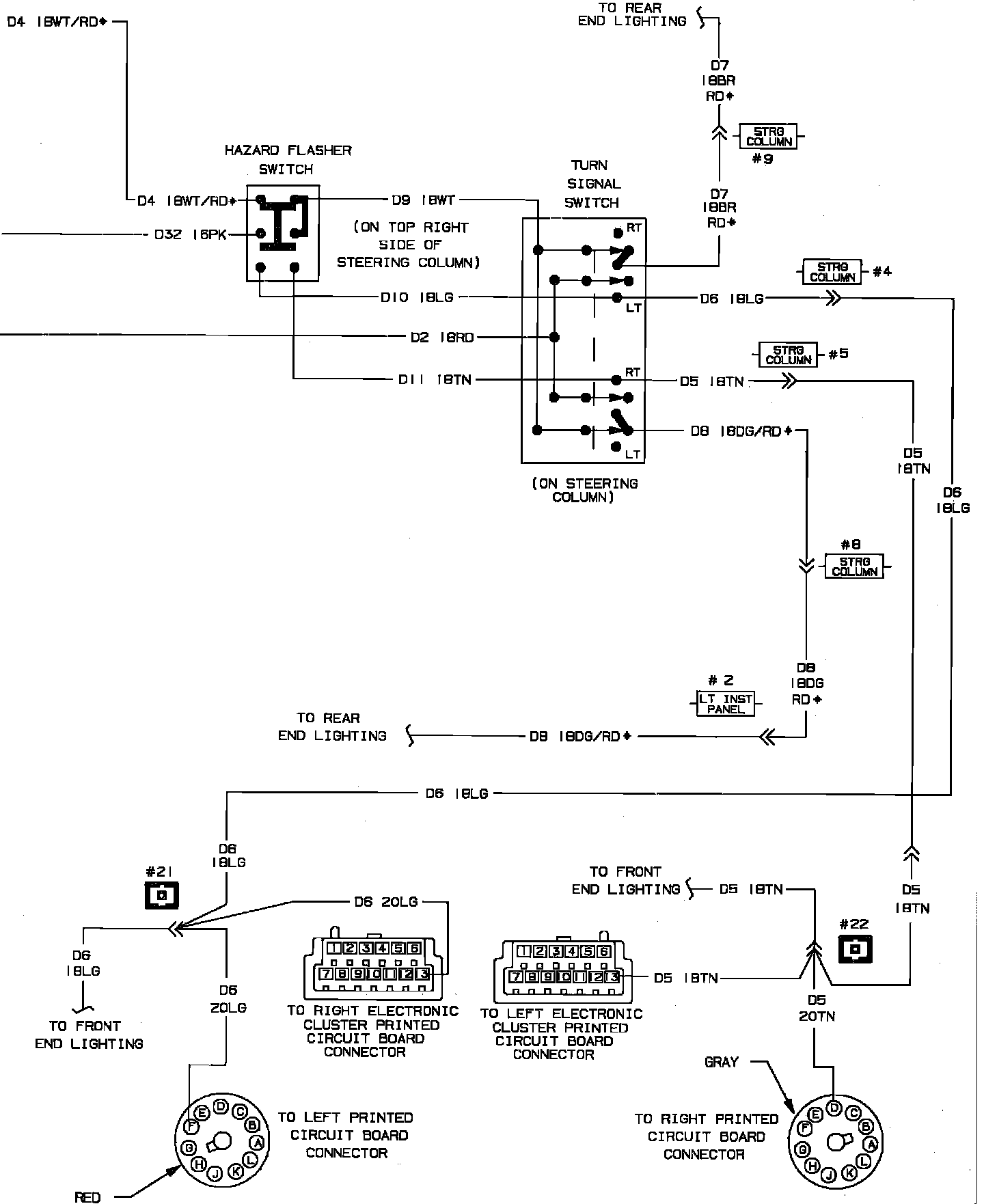

Hazard, Stop & Turn Flasher Wiring Circuit (Part 2 of 2):
