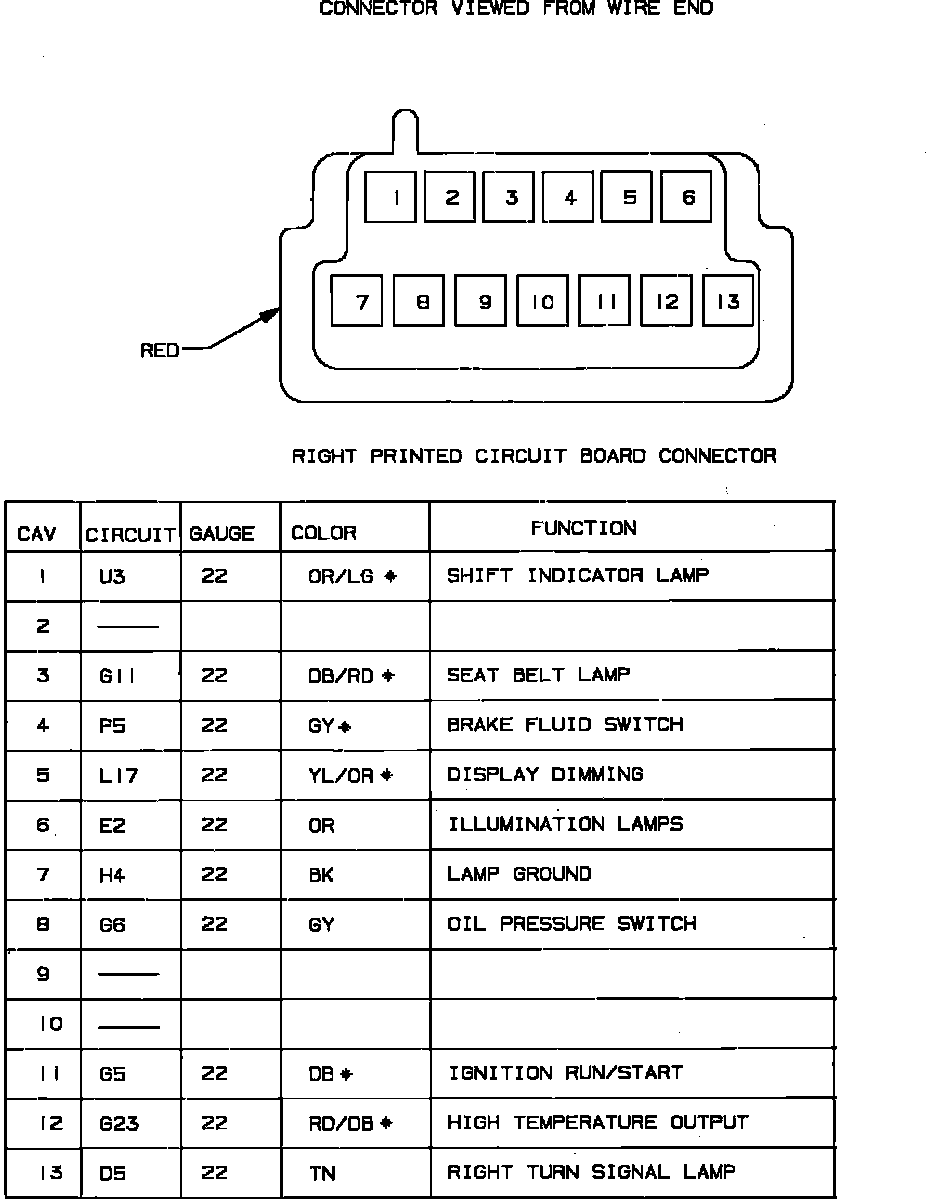

Right Side

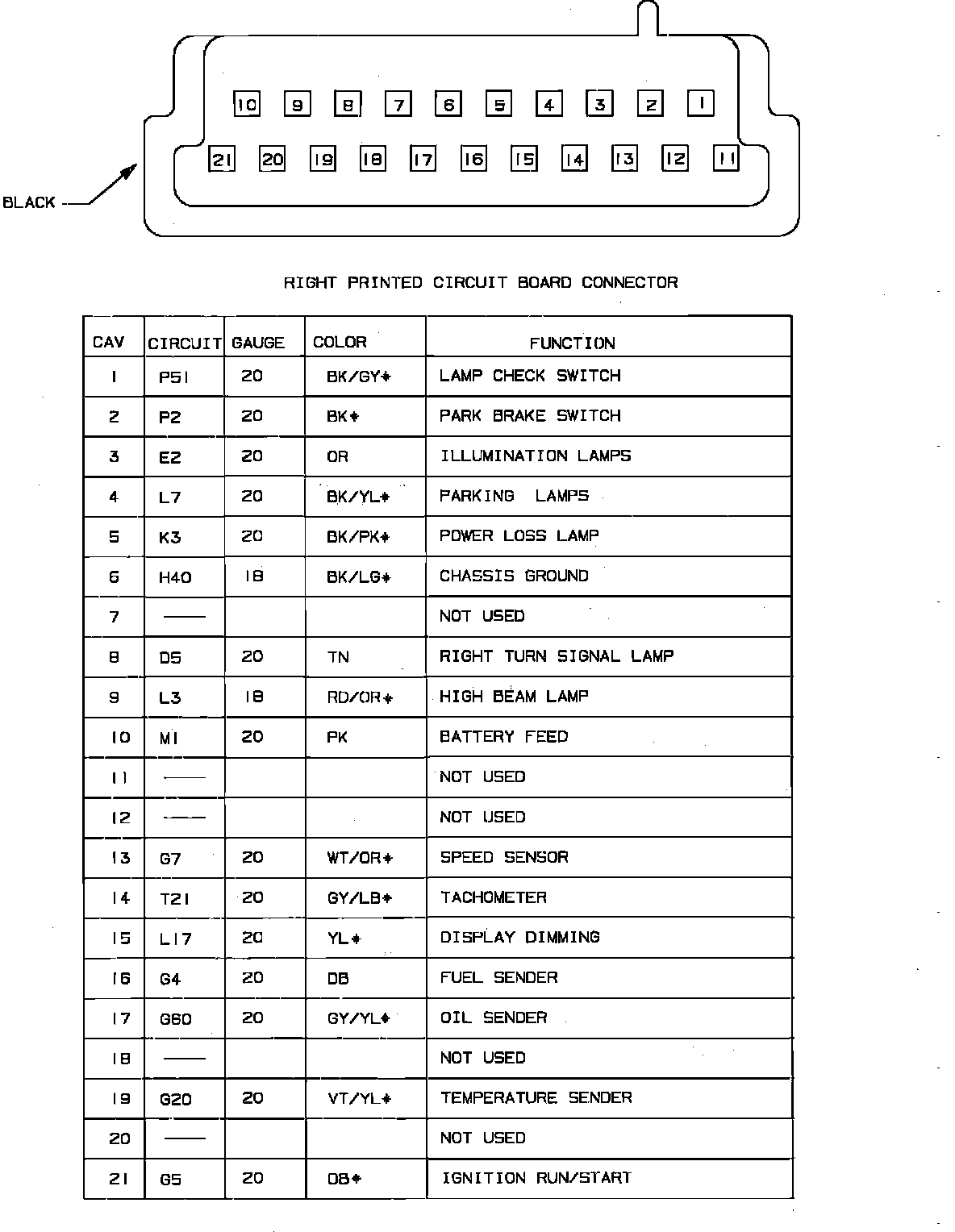

Right Side
Printed Circuit Board Connectors, Electronic Instrument Cluster:
Printed Circuit Board & Connectors, With Electronic Cluster (Part 2 of 2):
