Instrument Cluster / Carrier
>>
Instrument Panel Circuit Board
>>
Electronic Instrument Cluster
>>

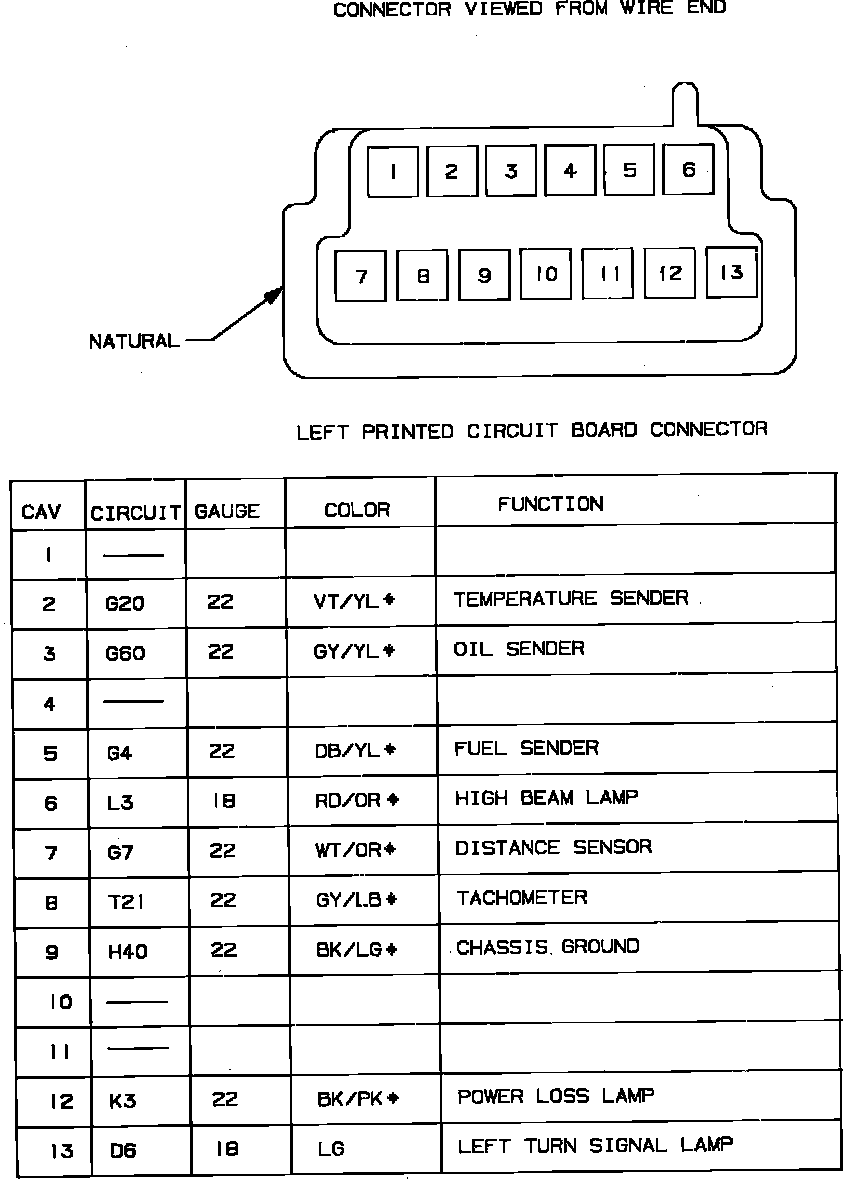

Left Side

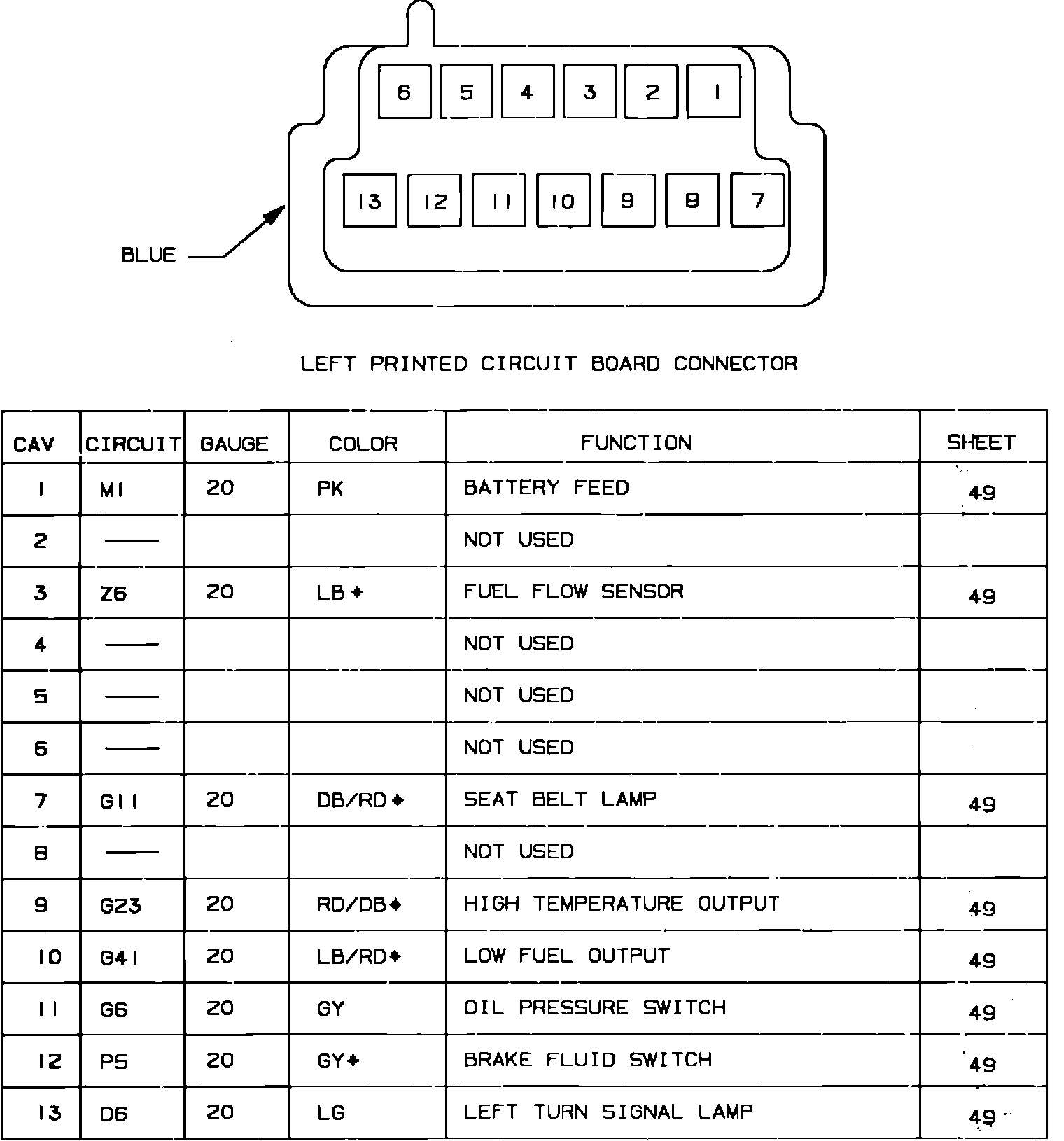

Left Side
Printed Circuit Board Connectors, Electronic Instrument Cluster:
Printed Circuit Board & Connectors, With Electronic Cluster (Part 1 of 2):
