SC-5A Speed Control System Set Circuit
SC-5A Speed Control System Set Circuit

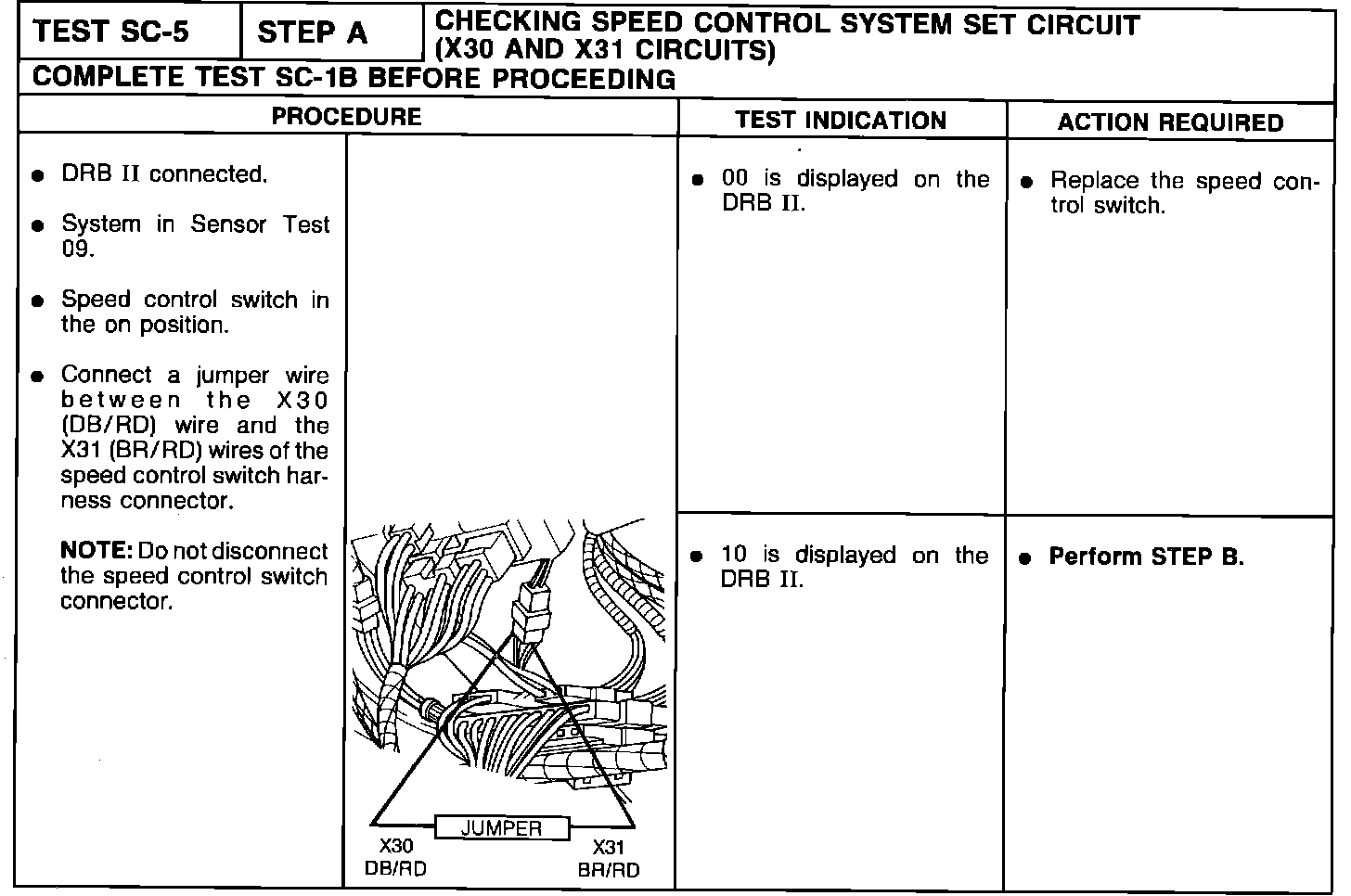

SC 5-Step A: Speed Control System Set Circuit:
