Home >> Dodge >> 1988 >> Dynasty L4-153 2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 4

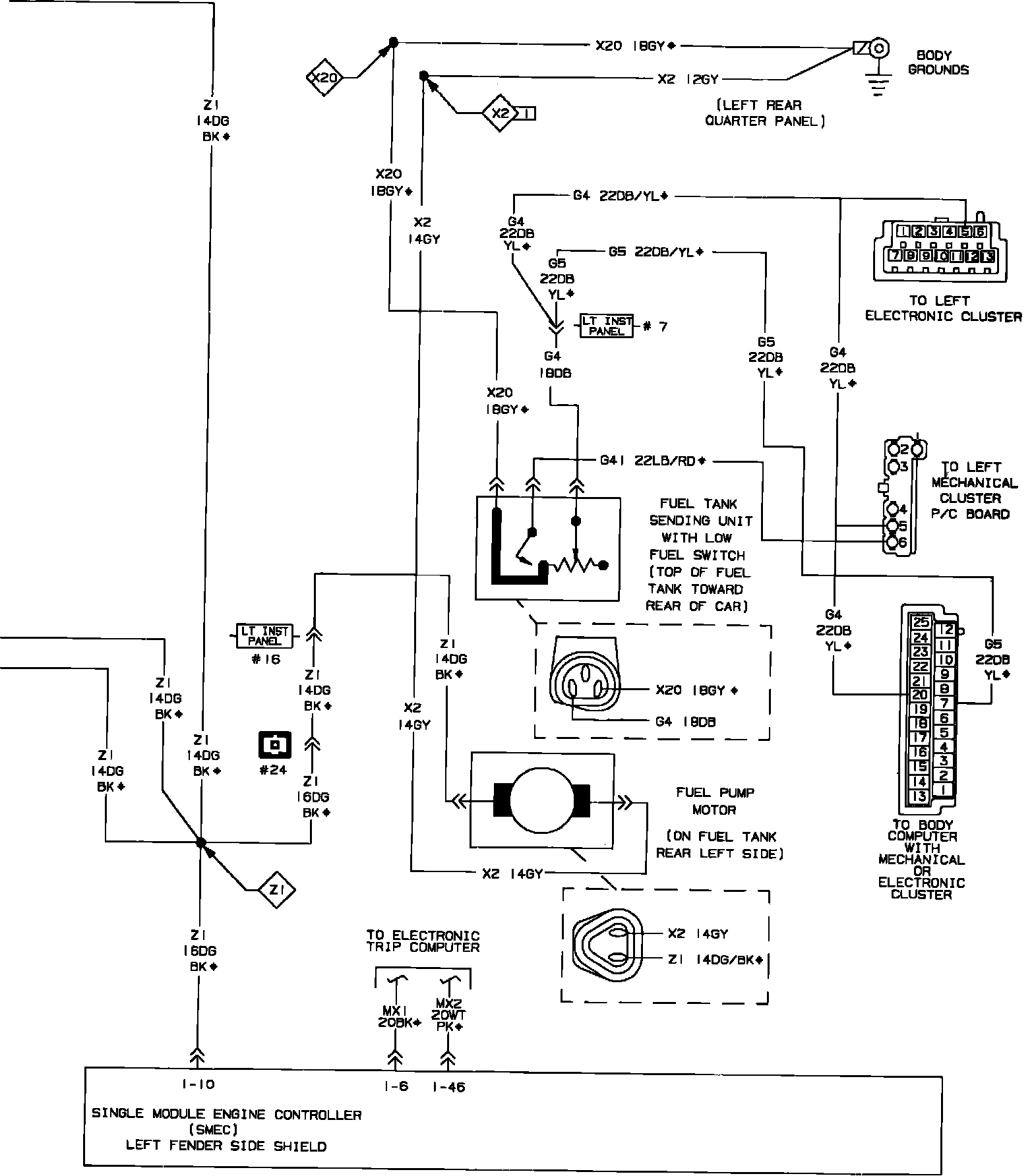

Part 4

Part 4 of 6:

Part 2 of 2:
