Instrument Panel Ground System

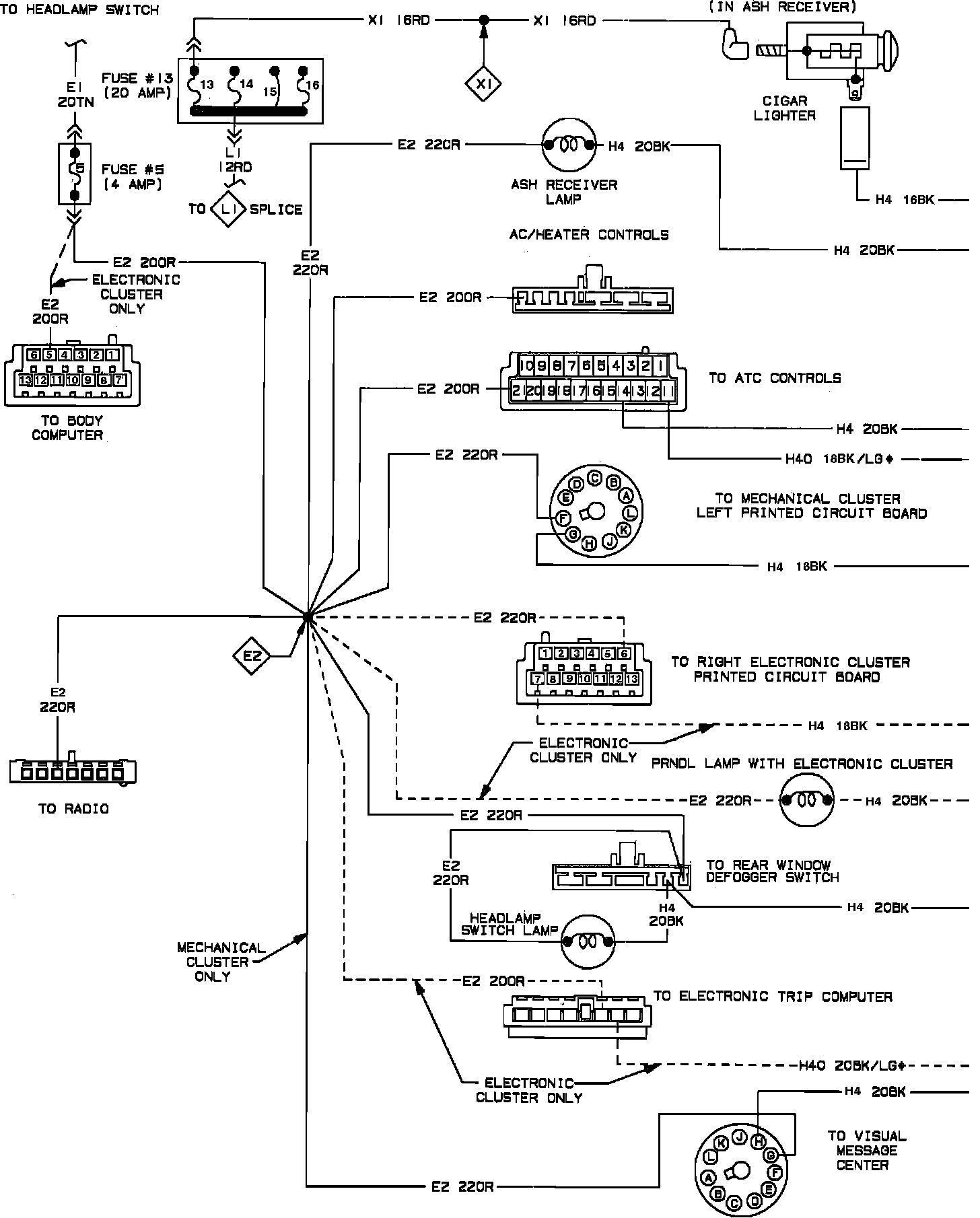

Headlamp Switch Controlled Interior Lighting & Instrument Panel To Ground System Wiring Circuit:

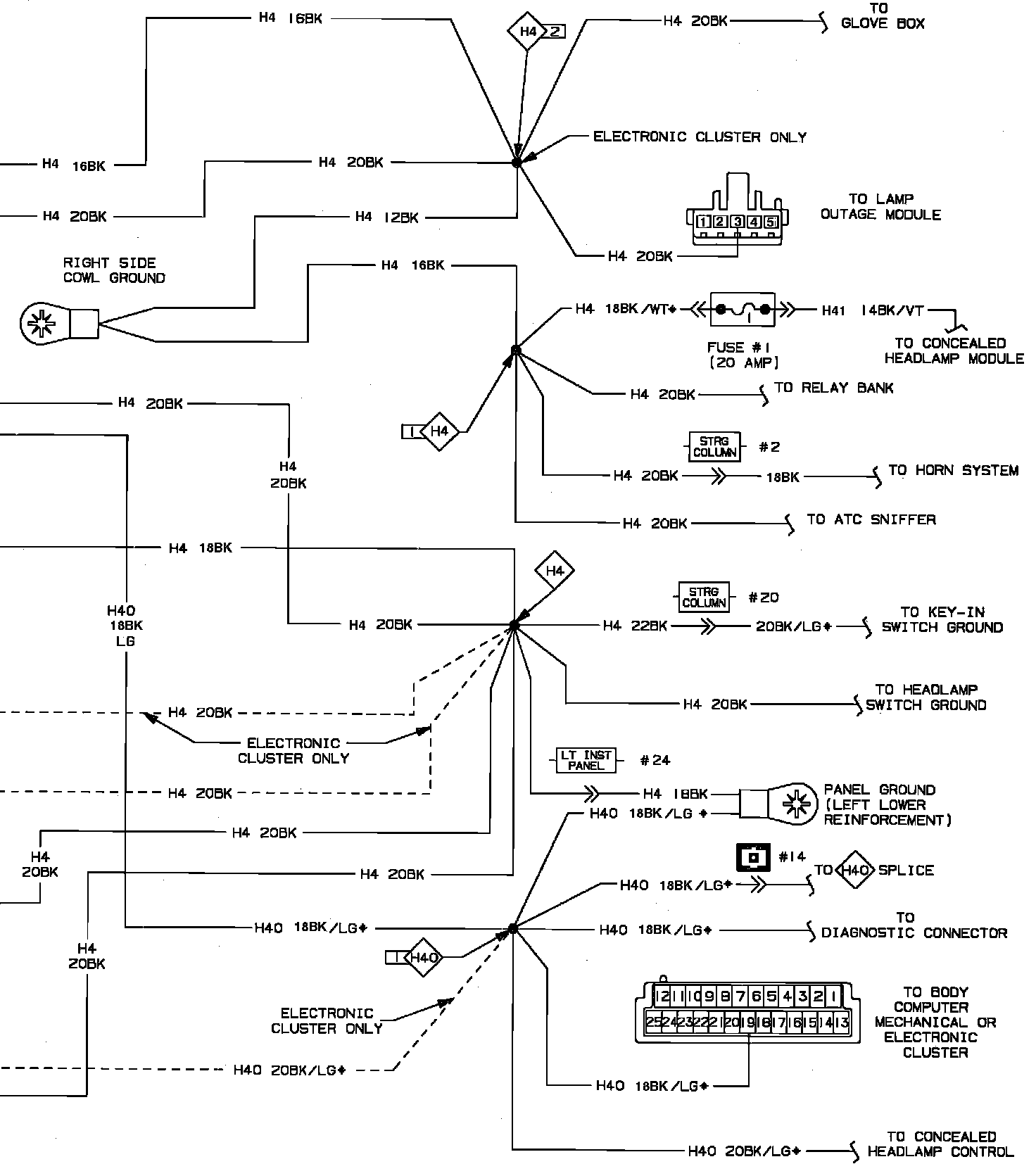

Headlamp Switch Controlled Interior Lighting & Instrument Panel To Ground System Wiring Circuit:
