Charge/Power Distribution
Charge/Power Distribution

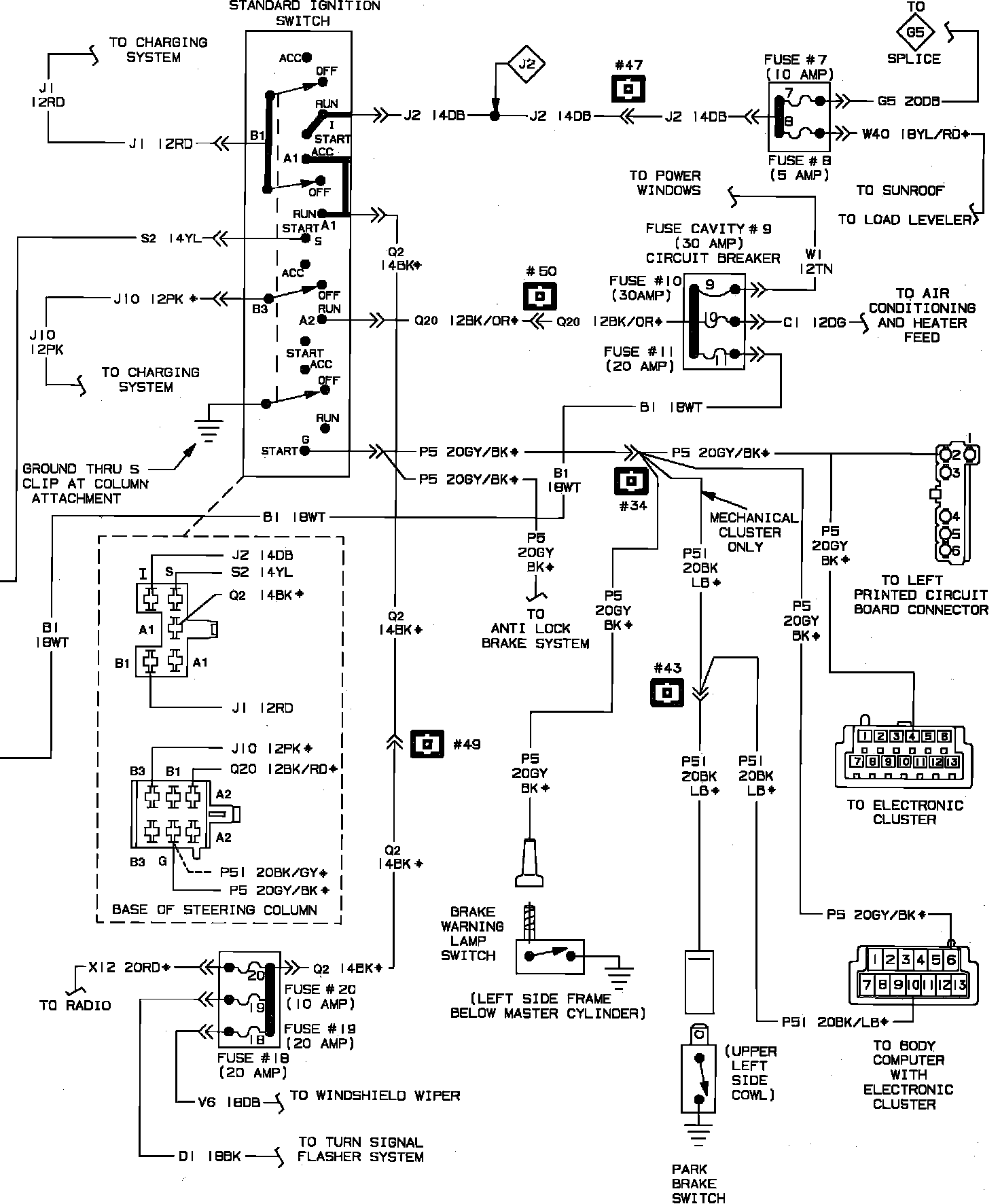

Charging, Ignition & Starting System Wiring Circuit:

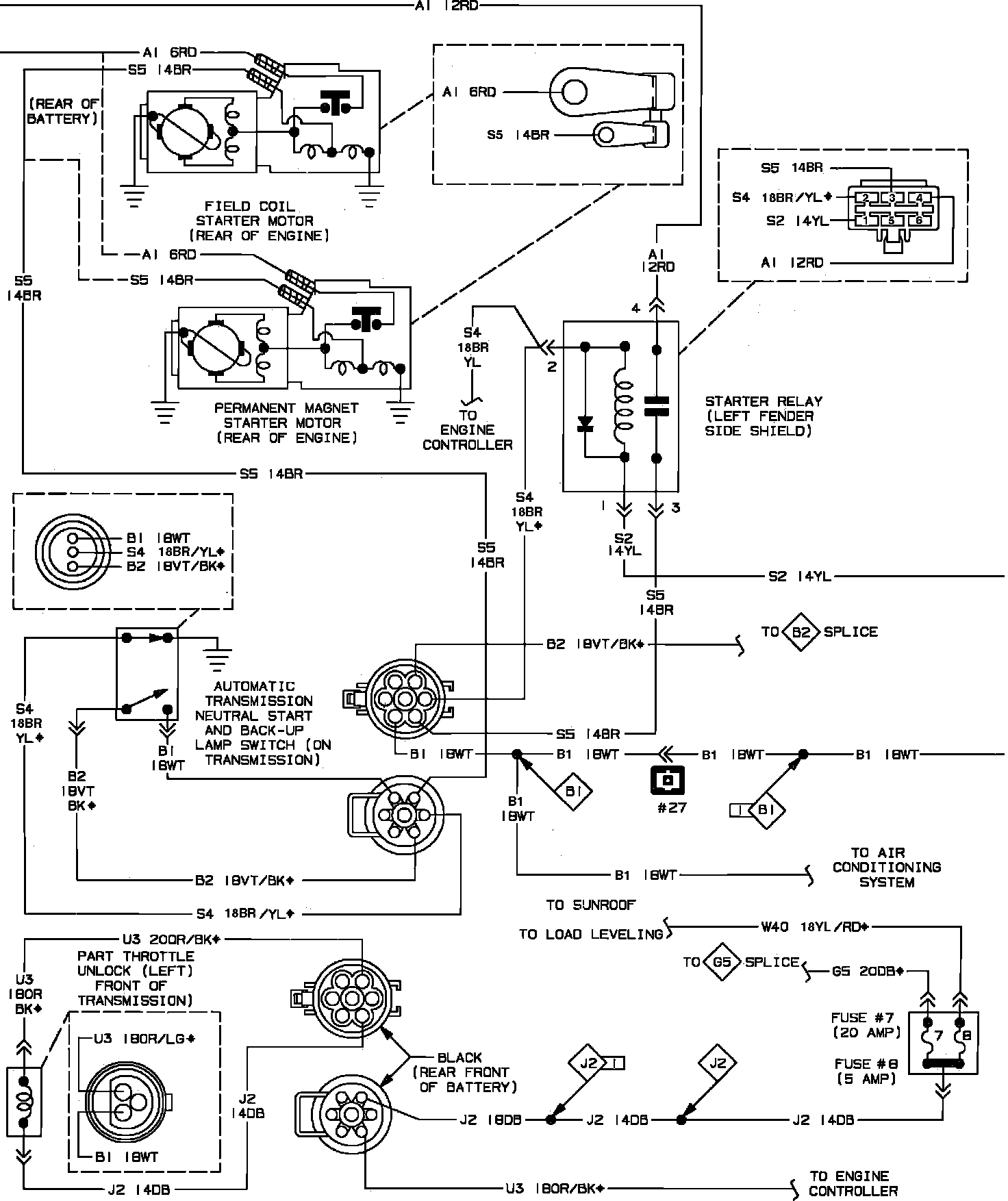

Charging, Ignition & Starting System Wiring Circuit:
Charging, Ignition & Starting System Wiring Circuit:
Charging, Ignition & Starting System Wiring Circuit:
