Right Side
Right Side

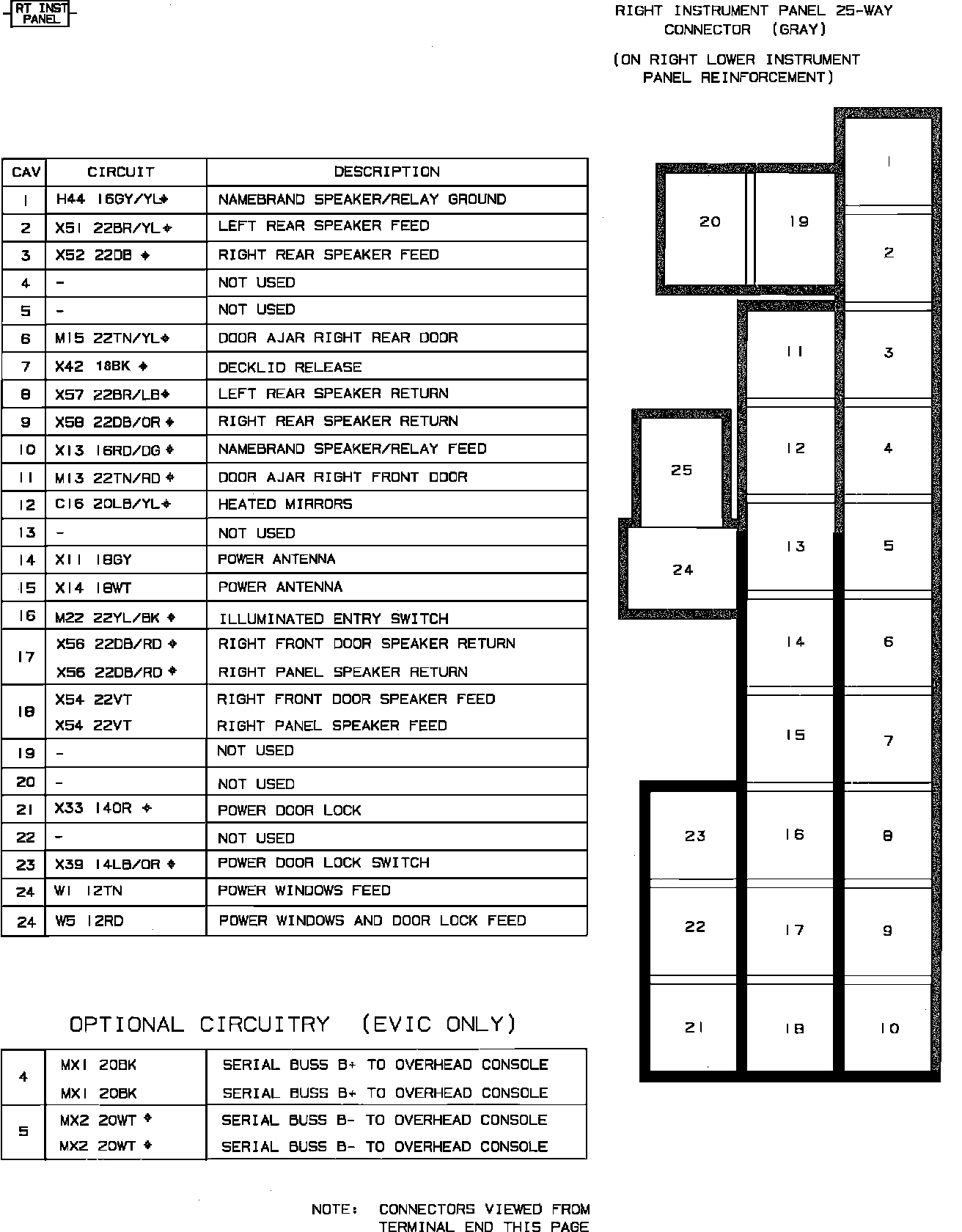

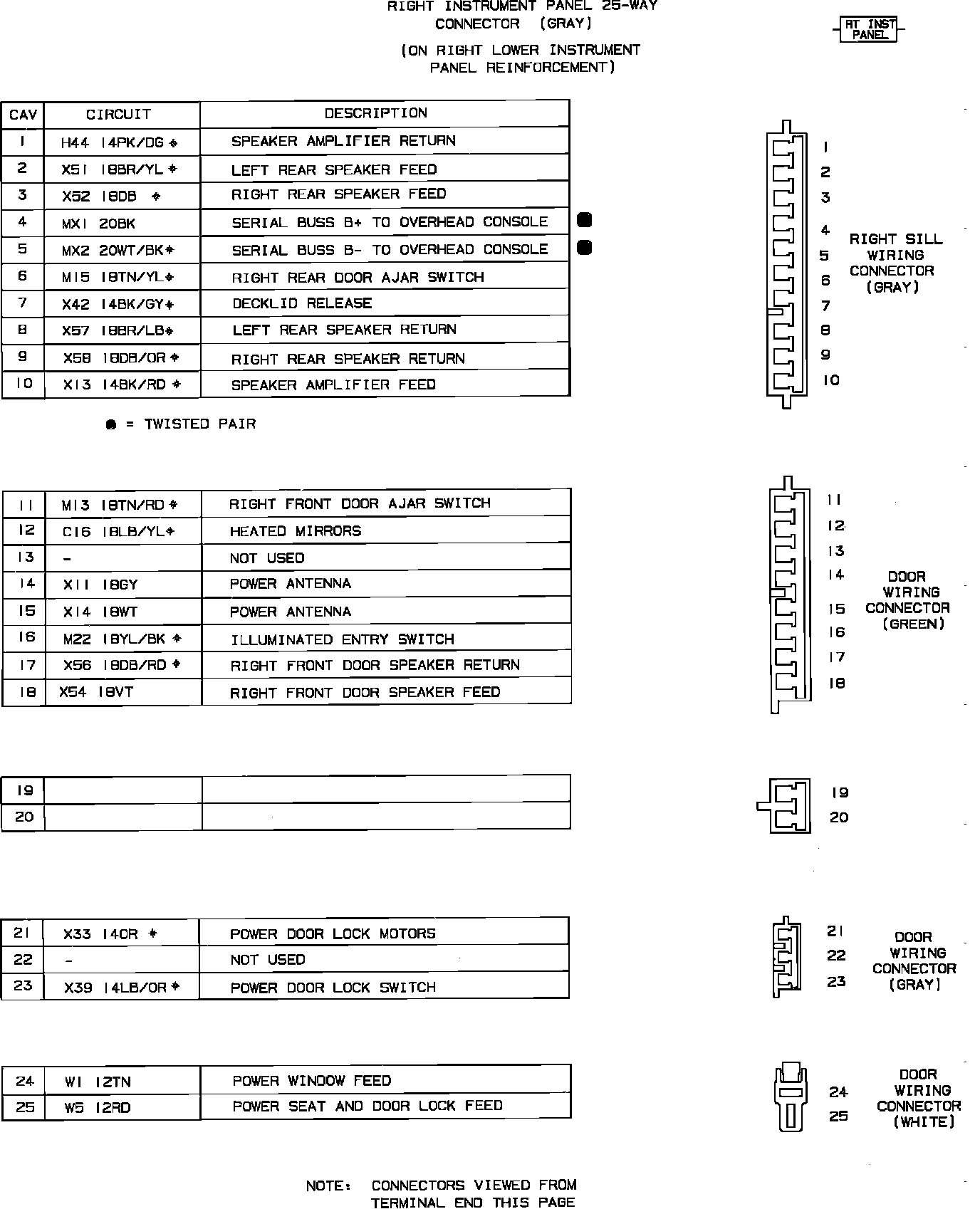

Body To Instrument Panel Connectors. Right Side:
Body To Instrument Panel Connectors. Right Side:
