Dodge
>>
1988
>>
Dynasty L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
Trunk / Liftgate

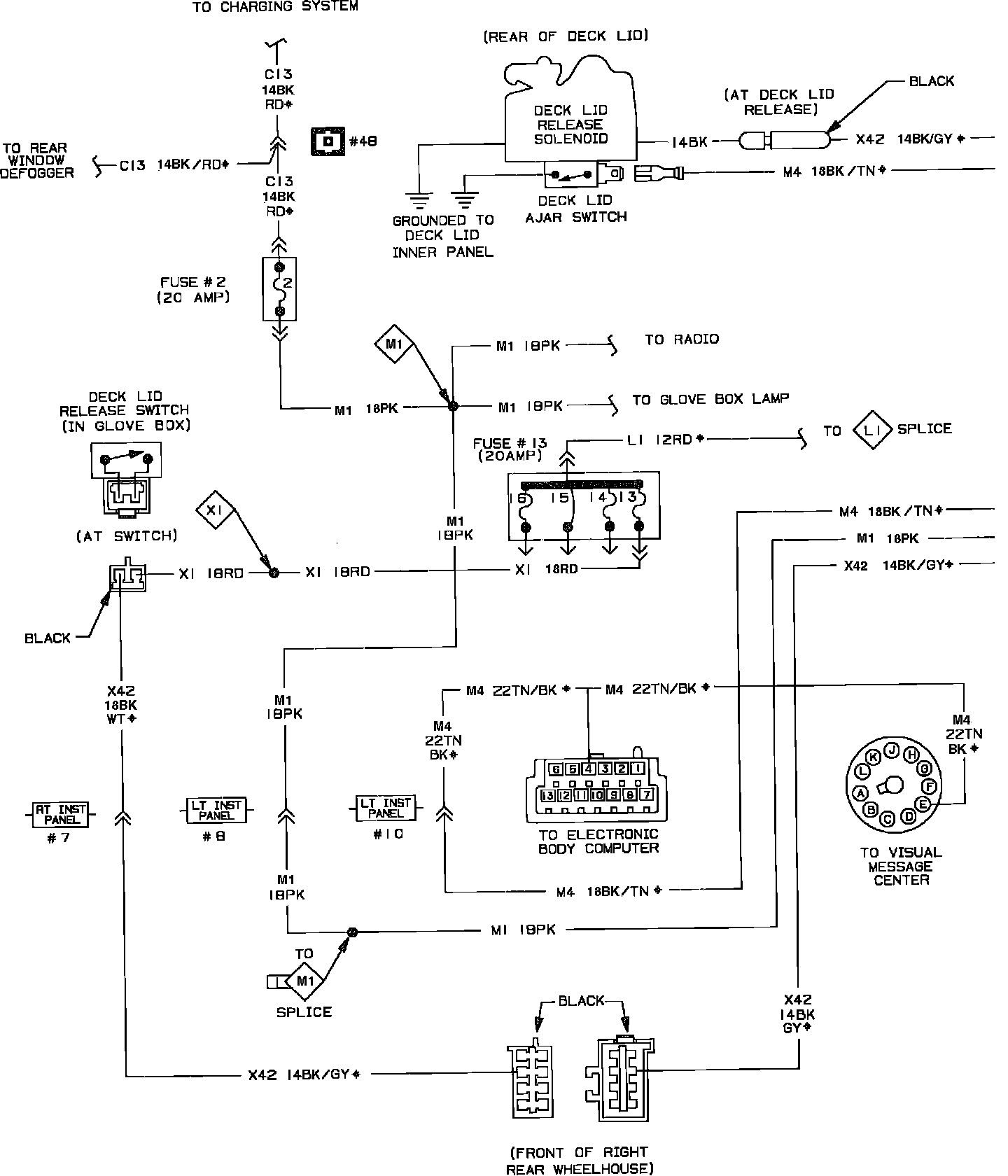

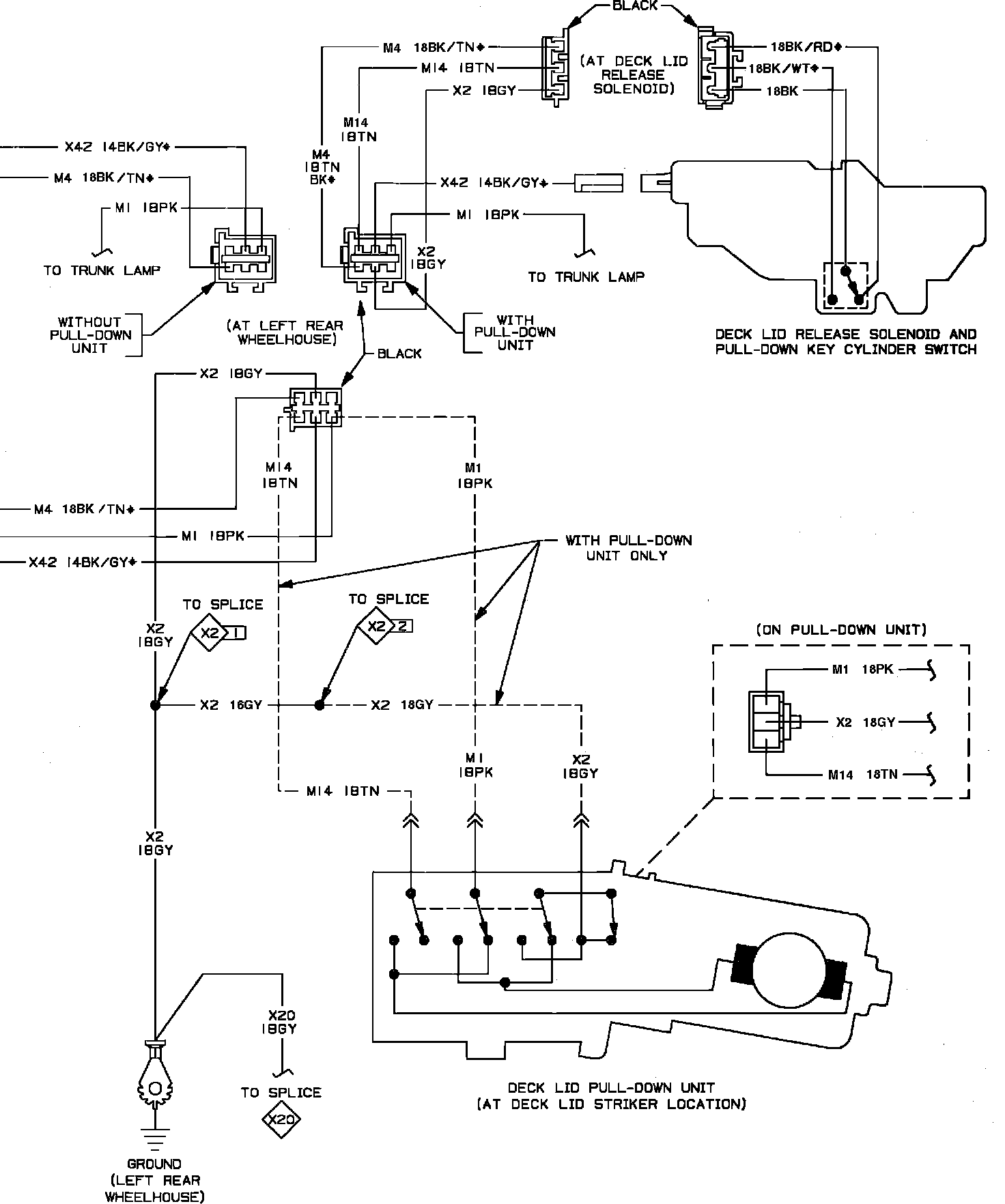

Power Deck Lid Pull-Down & Release Wiring Circuit:
Power Deck Lid Pull-Down & Release Wiring Circuit:
