ABS Main Relay

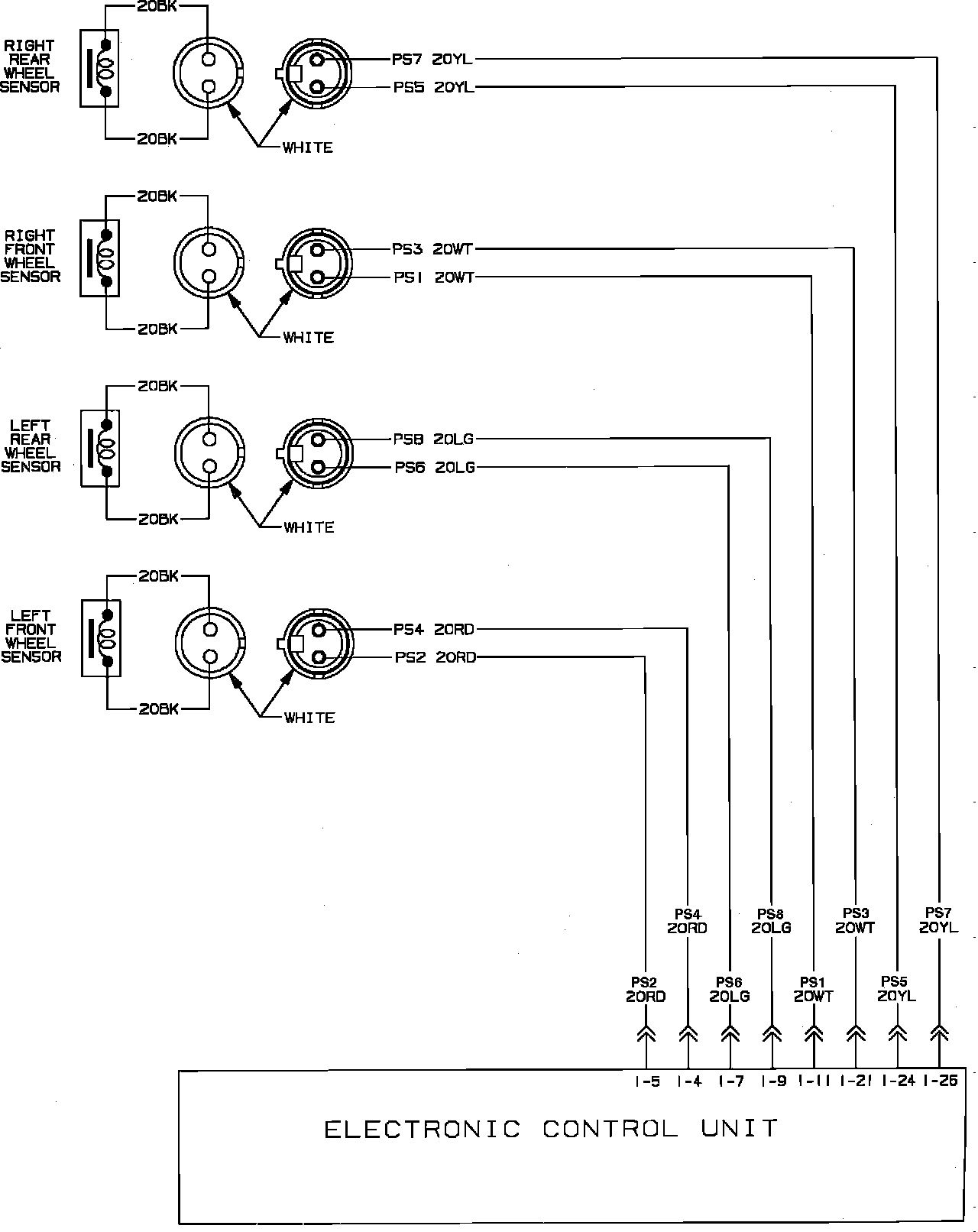

Anti-Lock Brake System Wiring Circuit:

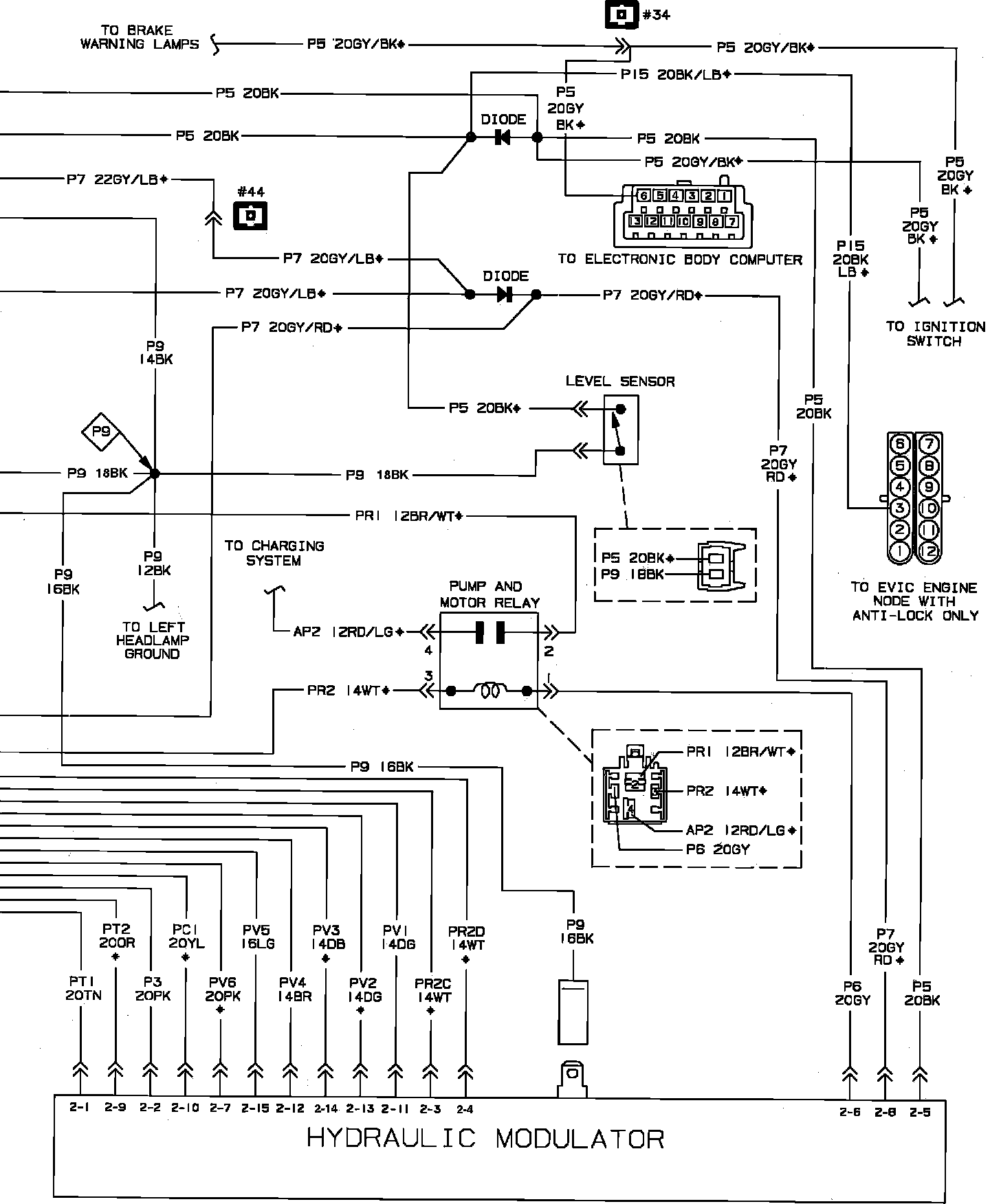

Anti-Lock Brake System Wiring Circuit:

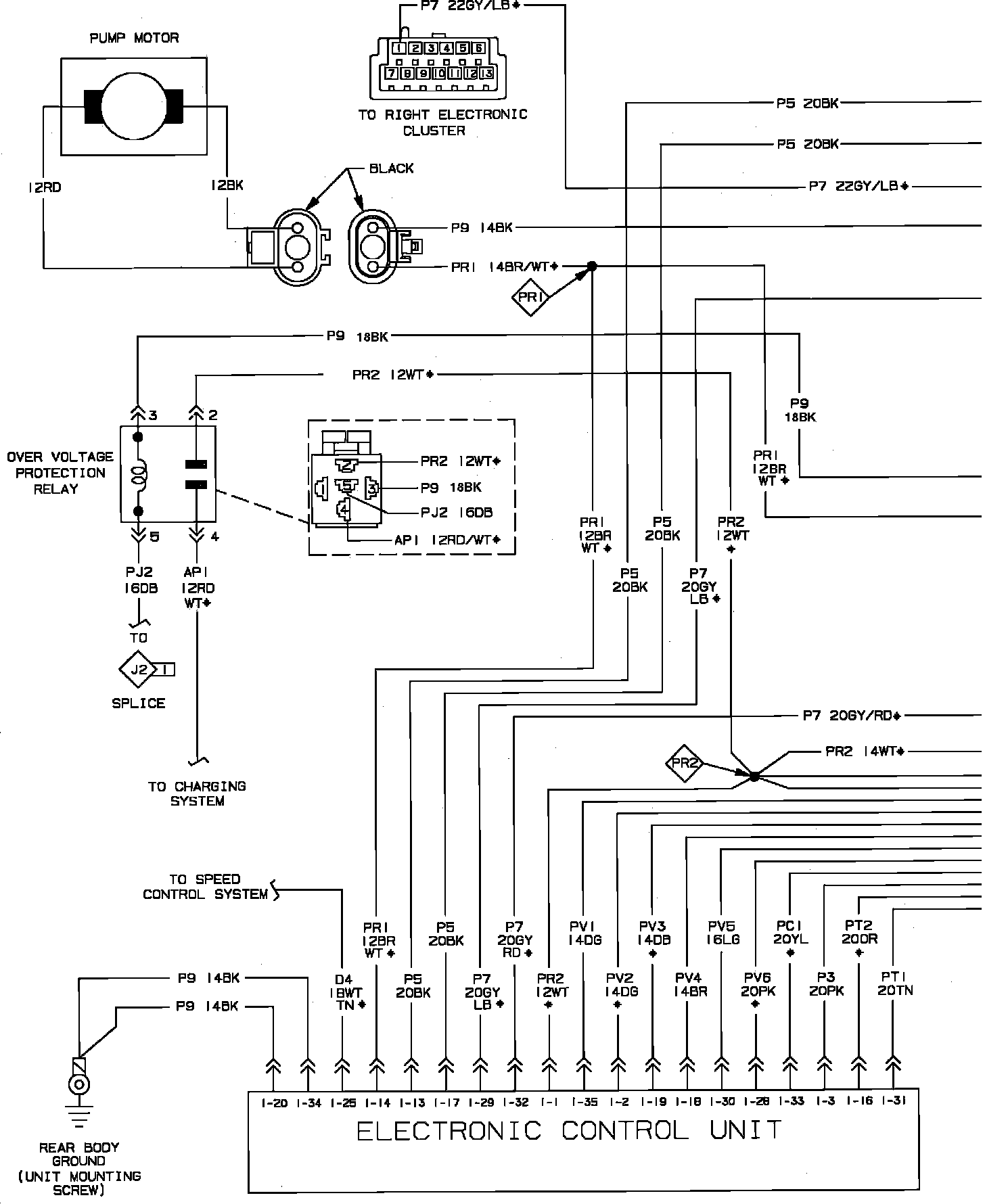

Anti-Lock Brake System Wiring Circuit:
