Dodge
>>
1988
>>
Dynasty L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
Heating and Air Conditioning

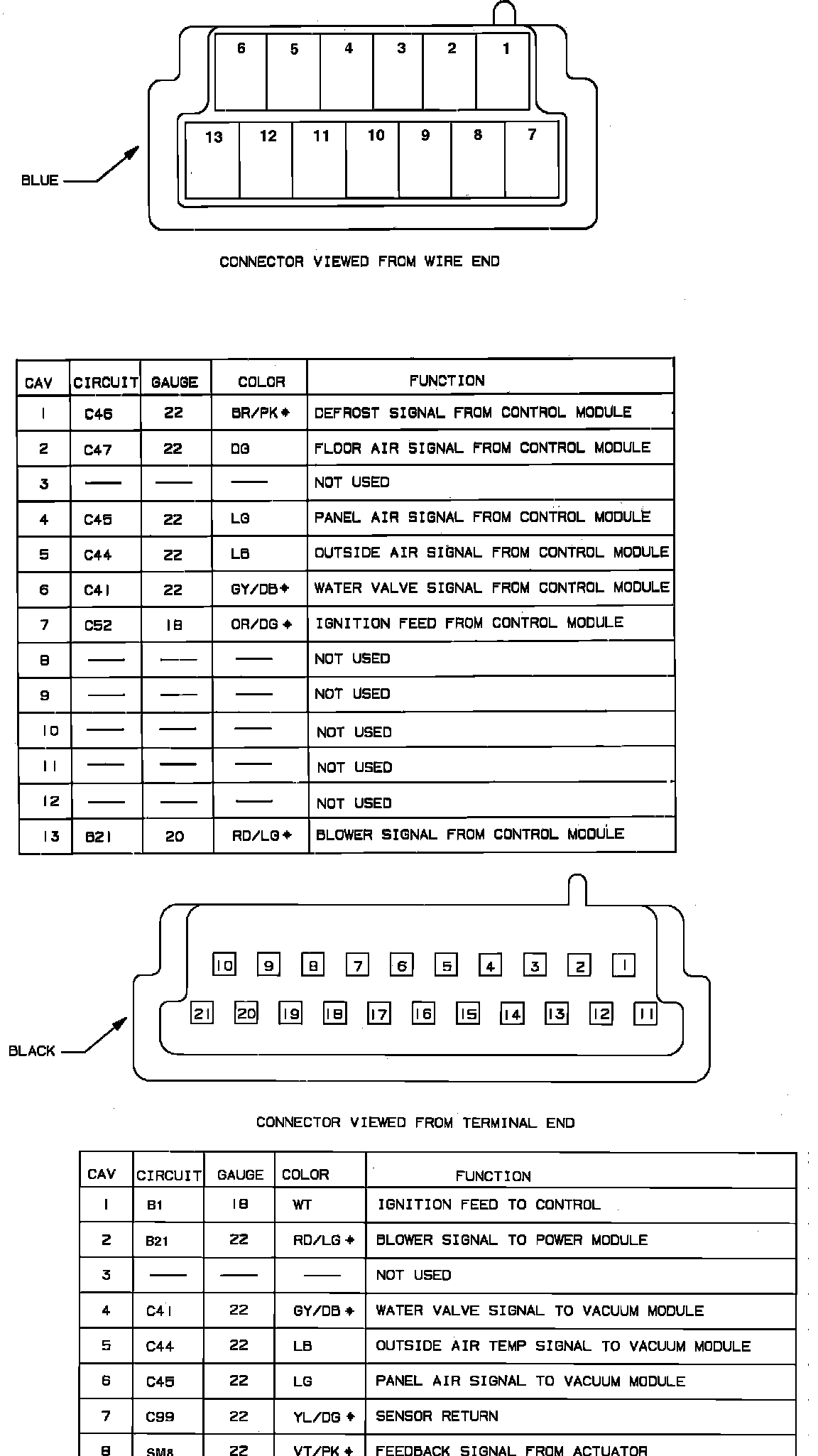

a:lAAutomatic Temperature Control Switch Connectors:
