1988 C-Body


Subject


Anti-Lock Brake Service Manual Correction


Index


BRAKES


Date

November 21, 1988

No.


05-04-88 P-4912

(C05-04)
The 1988 service manual supplement (#81-270-8002A) contains specification and nomenclature errors on pages 2-11 and 2-40.

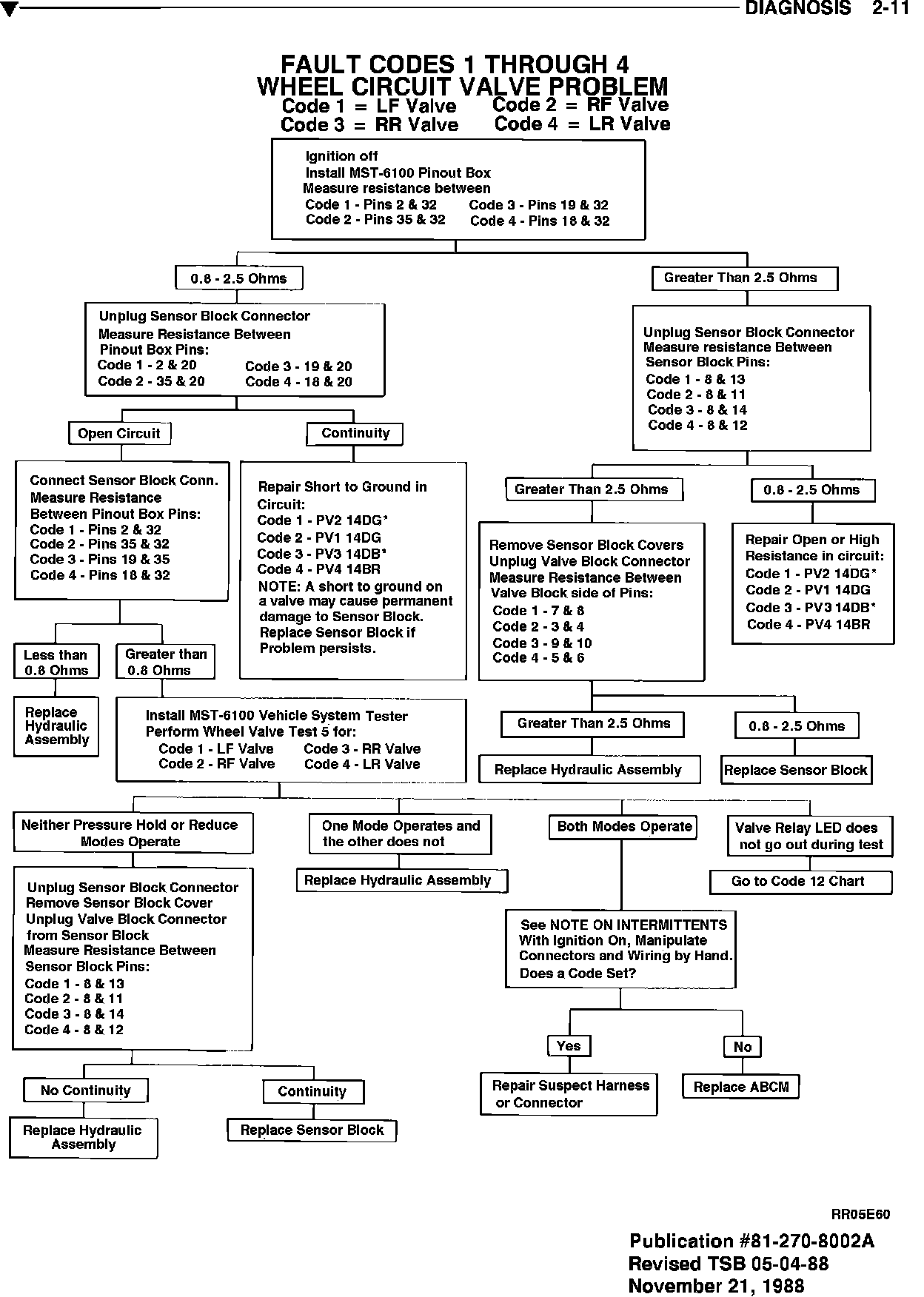

Page 2-11 requires correction in the resistance value for the wheel circuit valve test. The incorrect value in the manual is .8 - 1.8 Ohms. The correct value is .8 - 2.5 Ohms. This error occurs in six places on page 2-11.

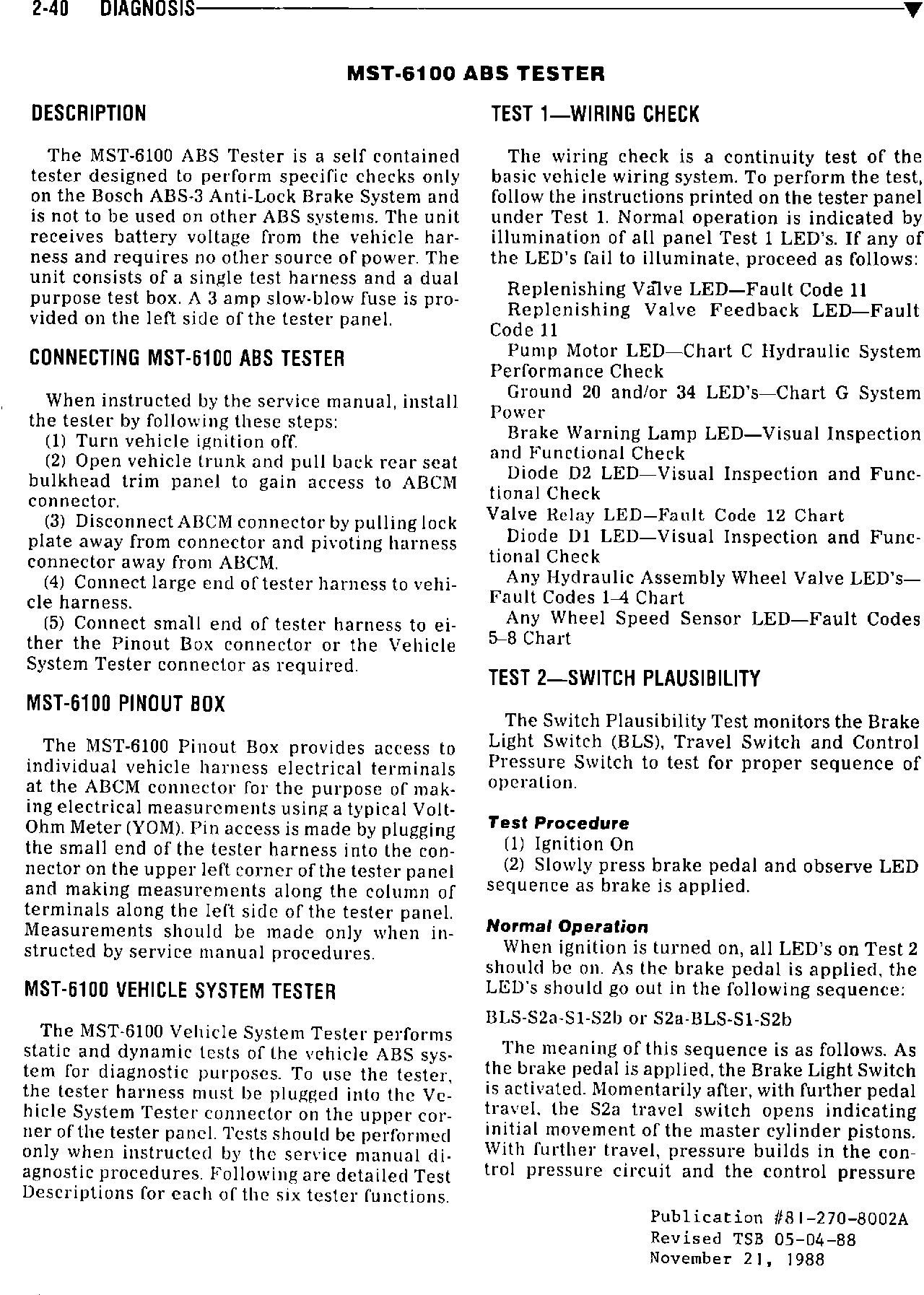

Page 2-40 requires correction in the right-hand column under Test 1 - Wiring Check. The instruction "ANTI-LOCK Warning Lamp LED - Visual Inspection and Functional Check" is changed to "Valve Relay LED - Fault Code 12 Chart."
All corrections are printed in red on the revised pages.

Please affix the pages in your service manual.
