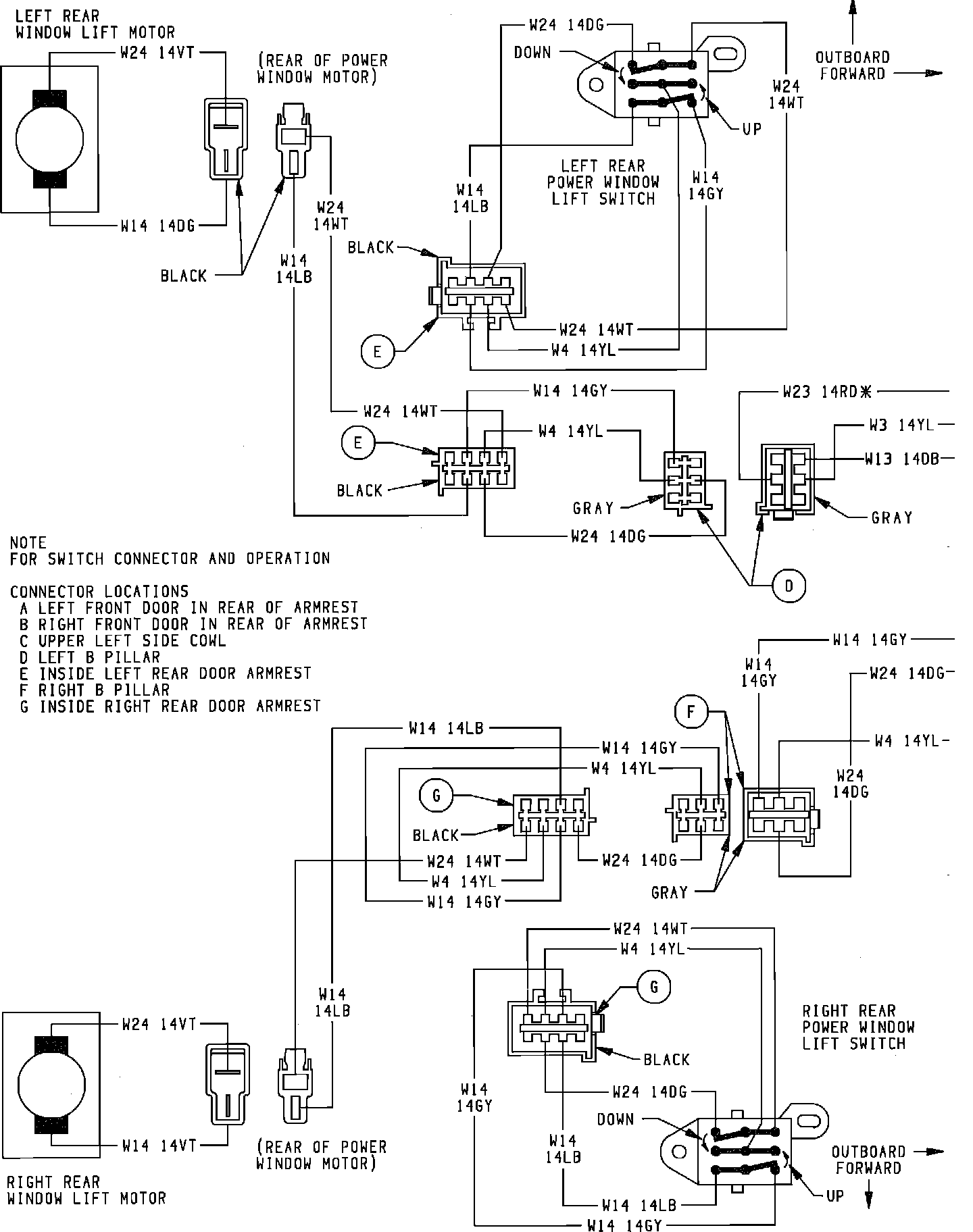

Power Window Window Wiring Circuit. 4 Door Models:
Power Window Window Wiring Circuit. 4 Door Models:
