Dodge
>>
1988
>>
Diplomat V8-318 5.2L VIN P 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Power Assist
Power Assist

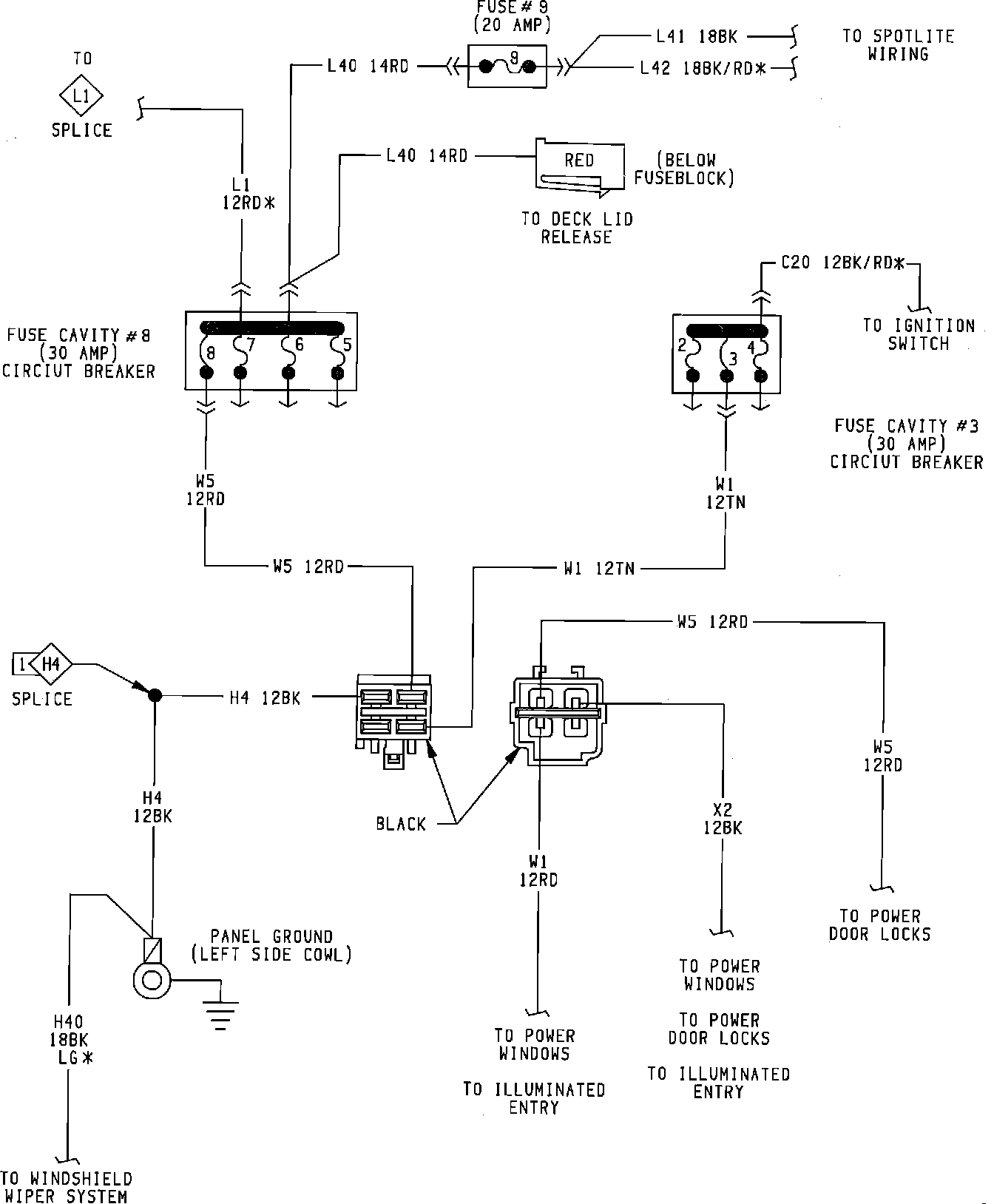

Power Assist Wiring Cicuit:
