Daytona L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition Switch/System
Ignition Switch/System

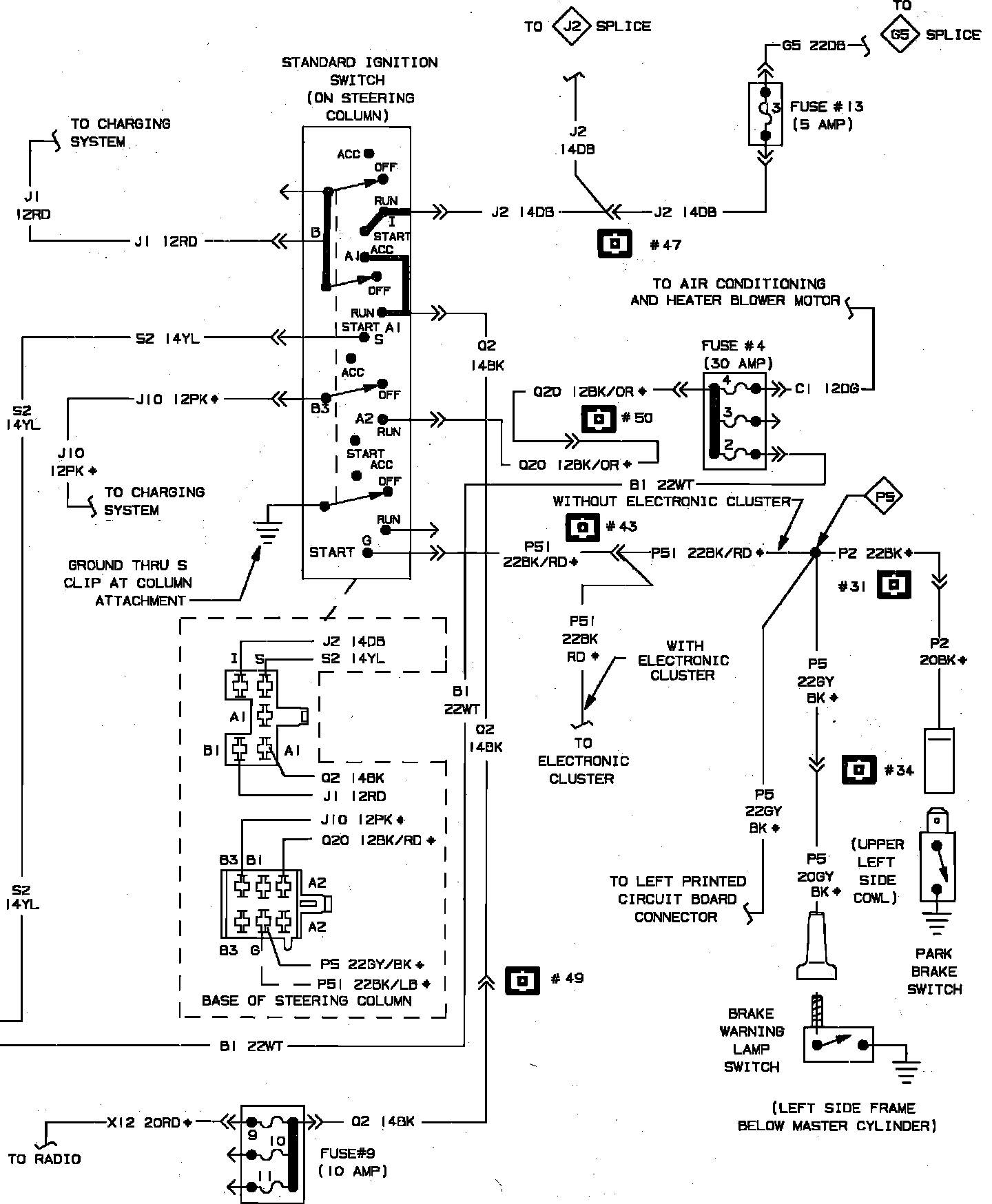

Ignition Switch, Speed Control & Stop Lamp Switch (Part 1 Of 2):
Ignition Switch, Speed Control & Stop Lamp Switch (Part 2 Of 2):
