Dodge
>>
1988
>>
Daytona L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Bulkhead Connector
Bulkhead Connector

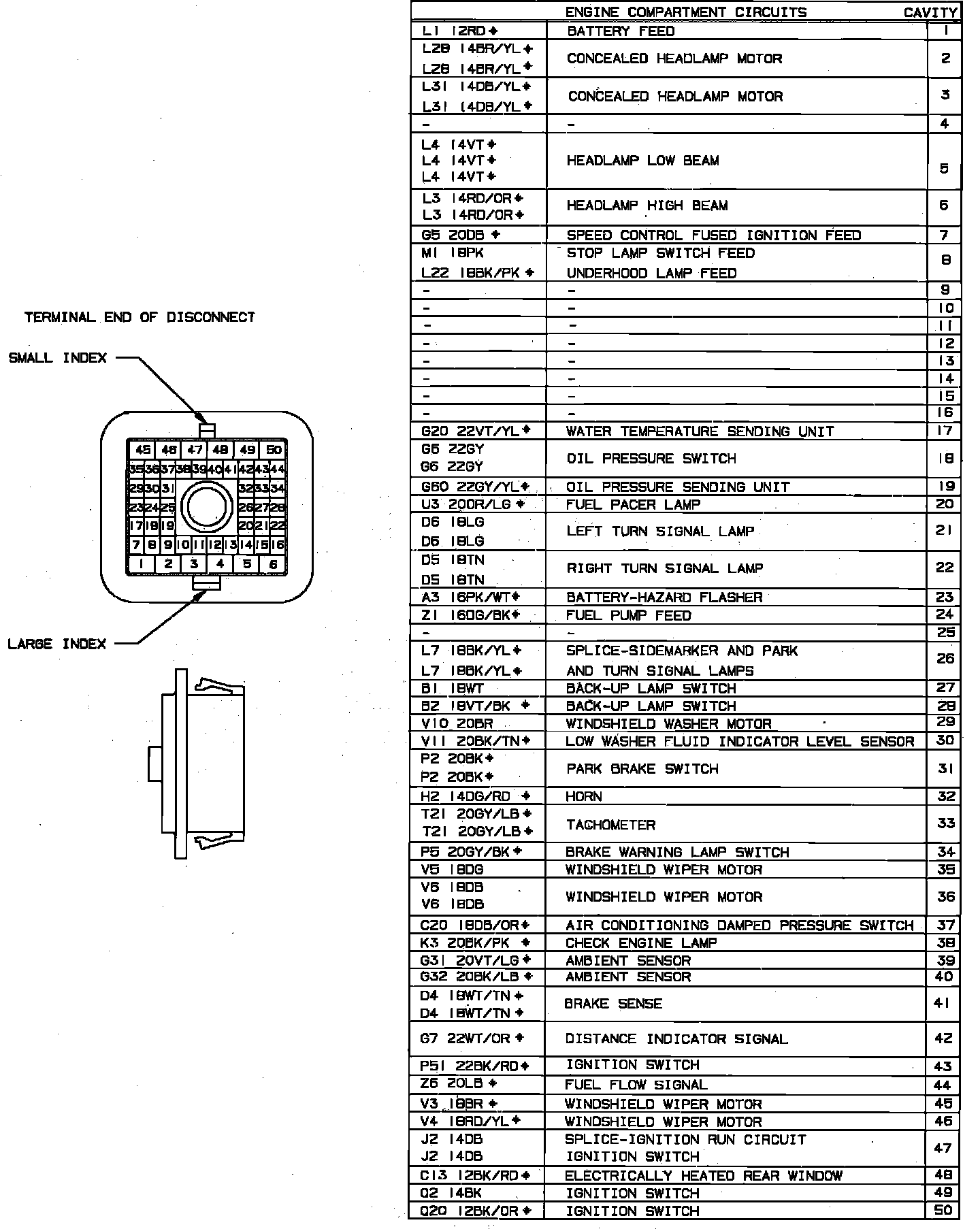

Bulkhead Connector (Part 1 Of 2):
