Dodge
>>
1988
>>
Colt L4-1597cc 1.6L SOHC Turbo VIN F FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
System Schematics
System Schematics

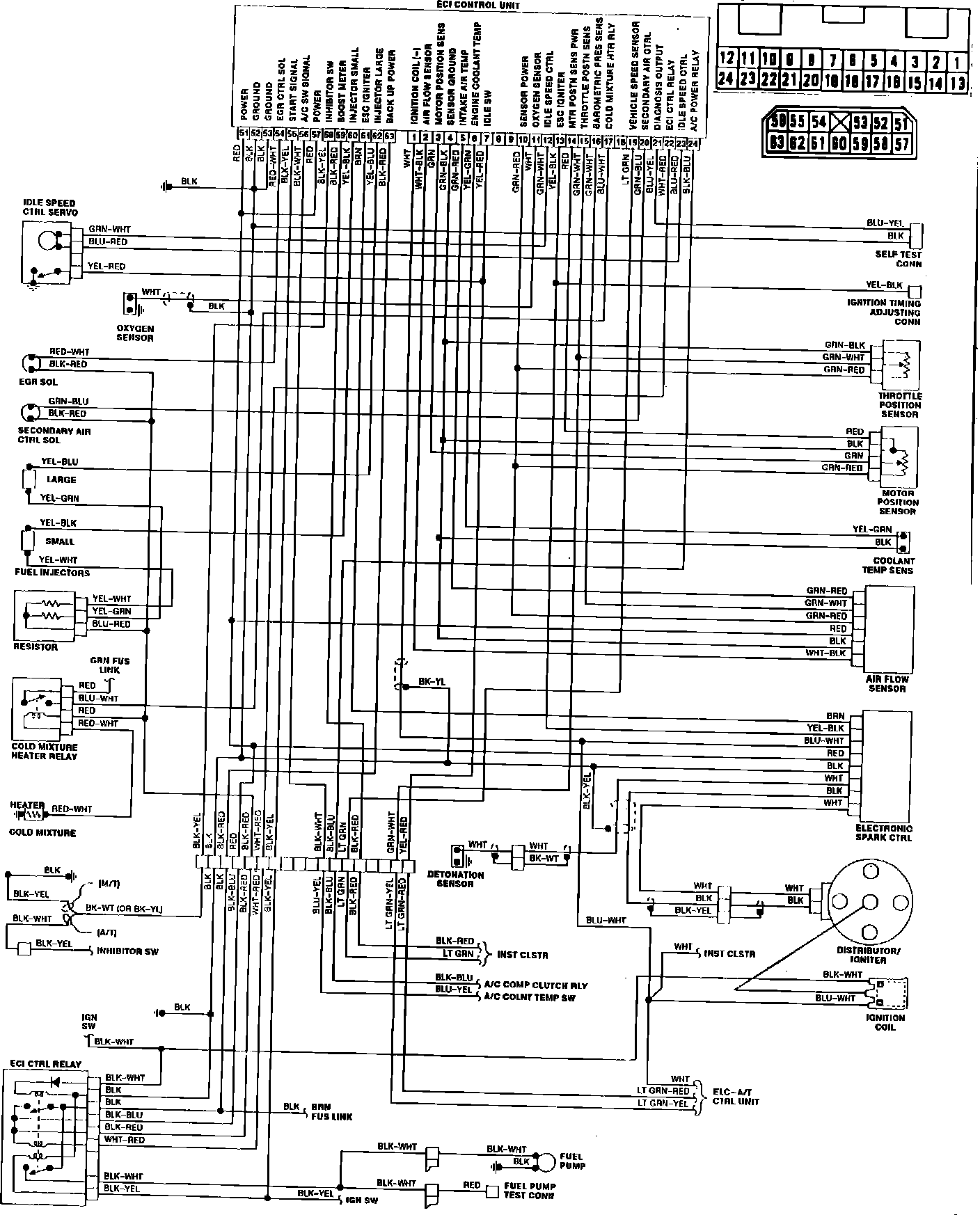

1988 Colt Wiring Diagram:
