M/T - Input Shaft/5TH Gear Sleeve Revision

89Chrysler08

Models

1988 LA & NF45Z With KM200 Series 5-Speed Manual Transmission


Subject

Design Revision of Transaxle Input Shaft And 5th Speed Gear Sleeve


Index

TRANSMISSION


Date

May 8, 1989


No.

21-13-89

(C21-08)

P-1840
BODY CODE LEGEND

LA - COLT, COLT WAGON
NF45Z - COLT VISTA (4 X 2 & 4 X 4)

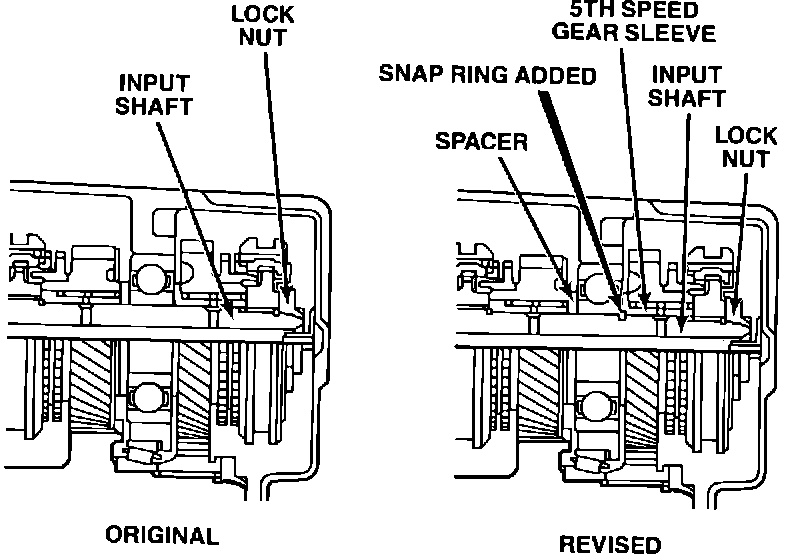

Figure 1:

INPUT SHAFT/GEAR SLEEVE DESIGN REVISION


Effective January 1, 1988 the input shaft and 5th speed gear sleeve have been revised and a snap ring has been added to the input shaft of the KM200 series 5-speed transaxle, as shown in Figure 1.

Figure 2:

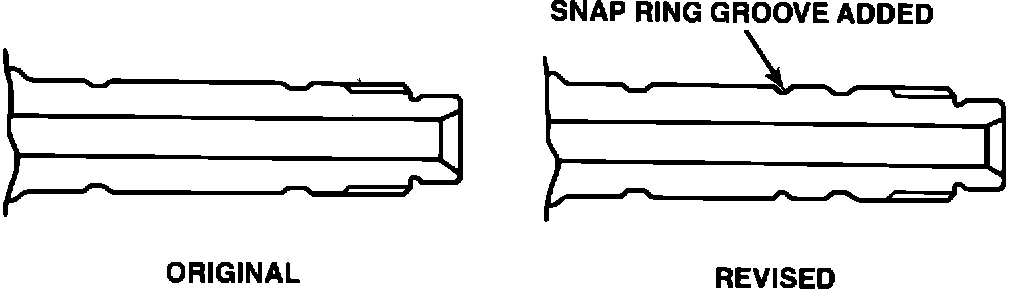

Figure 2 shows a cross-section view of the input shaft end indicating the position of the new snap ring.

Figure 3:

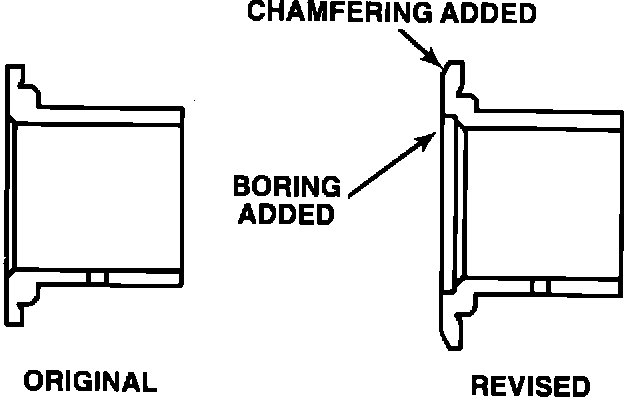

Figure 3 shows a cross-section view of the 5th speed gear sleeve indicating the revision made to accommodate the added snap ring.
For service related information, refer to Page 21-27 of the 1989 Colt Vista Service Manual (# 81-270-9013).


POLICY: Information only.
