Fuel Injecter - Resistance Specification Revision

88chrysler04

Models


1988 "LA" Colt


Subject

Revised Fuel Injector Resistance Specification


Index


FUEL


Date

April 25, 1988

No.


14-06-88

P-1555
SYMPTOM/CONDITION

This bulletin revises the information contained in the 1988 Colt Import Service Manual.

The fuel injecter resistance specification has been corrected to read 13-16 ohms instead of 15-17 ohms listed in the manual.

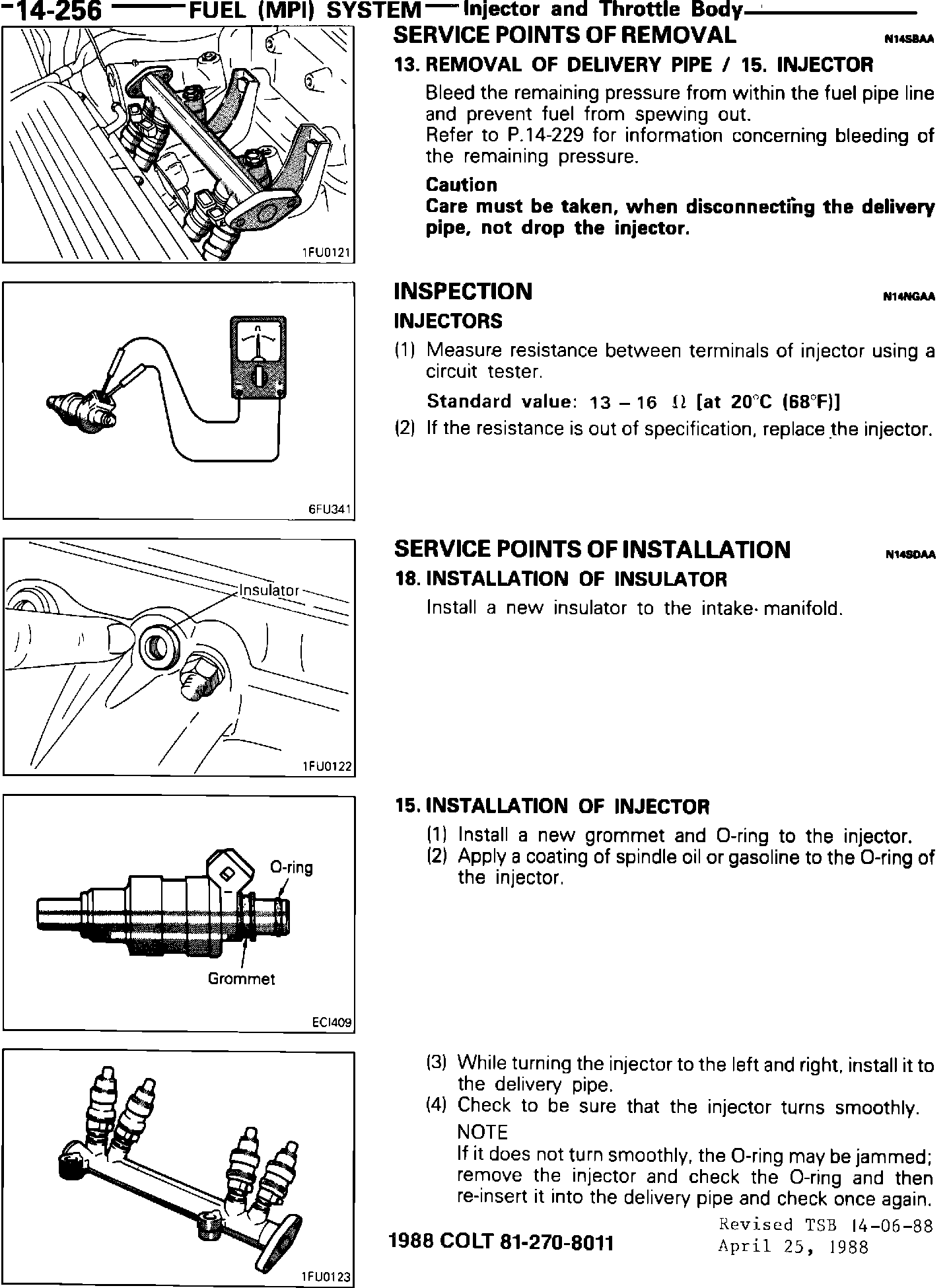

The corrected page should be inserted into your service manual.

Manual Publication No. Page

1988 Colt Import Service Manual 81-270-8001 14-256
Volume 1


POLICY: Information Only



1988 Colt 81-270-8011
