A/T Oil Level Indicator - Improvement

88chrysler09

Models


1988 "LA" (Colt Wagon) Equipped With KM171 Transaxle


Subject


Transaxle Oil Level Indicator Improvement


Index


TRANSMISSION


Date

August 1, 1988

No.


21-08-88

P-3165 (C21-11)

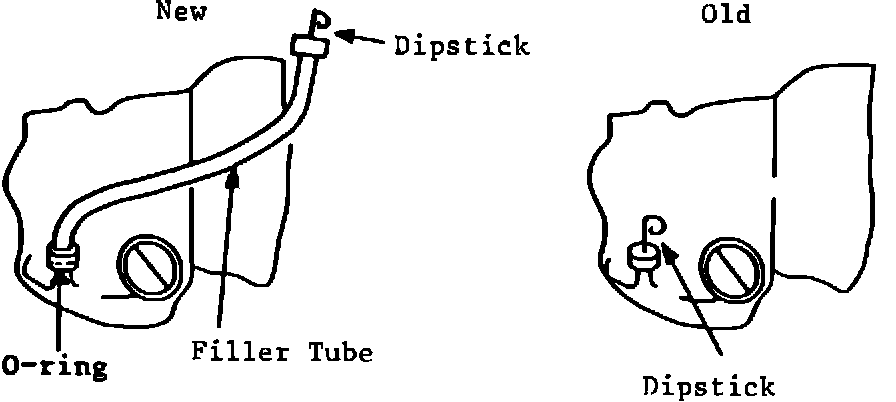

FIGURE 1:

A new dipstick and filler tube has been released, for use on subject model vehicles when equipped with KM171 transaxles. This new dipstick and filler tube are much longer and are positioned for easier access when checking or adding transaxle fluid is necessary (Figure 1). This change was effective in February, 1988, Transaxle No. EF9730 and later.

The new dipstick and filler tube are completely interchangeable with earlier units. However, the dipstick and filler tube must be replaced as a set, along with a new O-ring.
PARTS REQUIRED

1 Dipstick PN MD732523
1 Filler Tube PN MD731610
1 O-Ring PN MD955612


POLICY: Information Only
