Home
>>
Dodge
>>
1988
>>
Colt L4-089 1468cc 1.5L VIN K 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition System Wiring Diagrams
>>
Fuel Injected
Fuel Injected

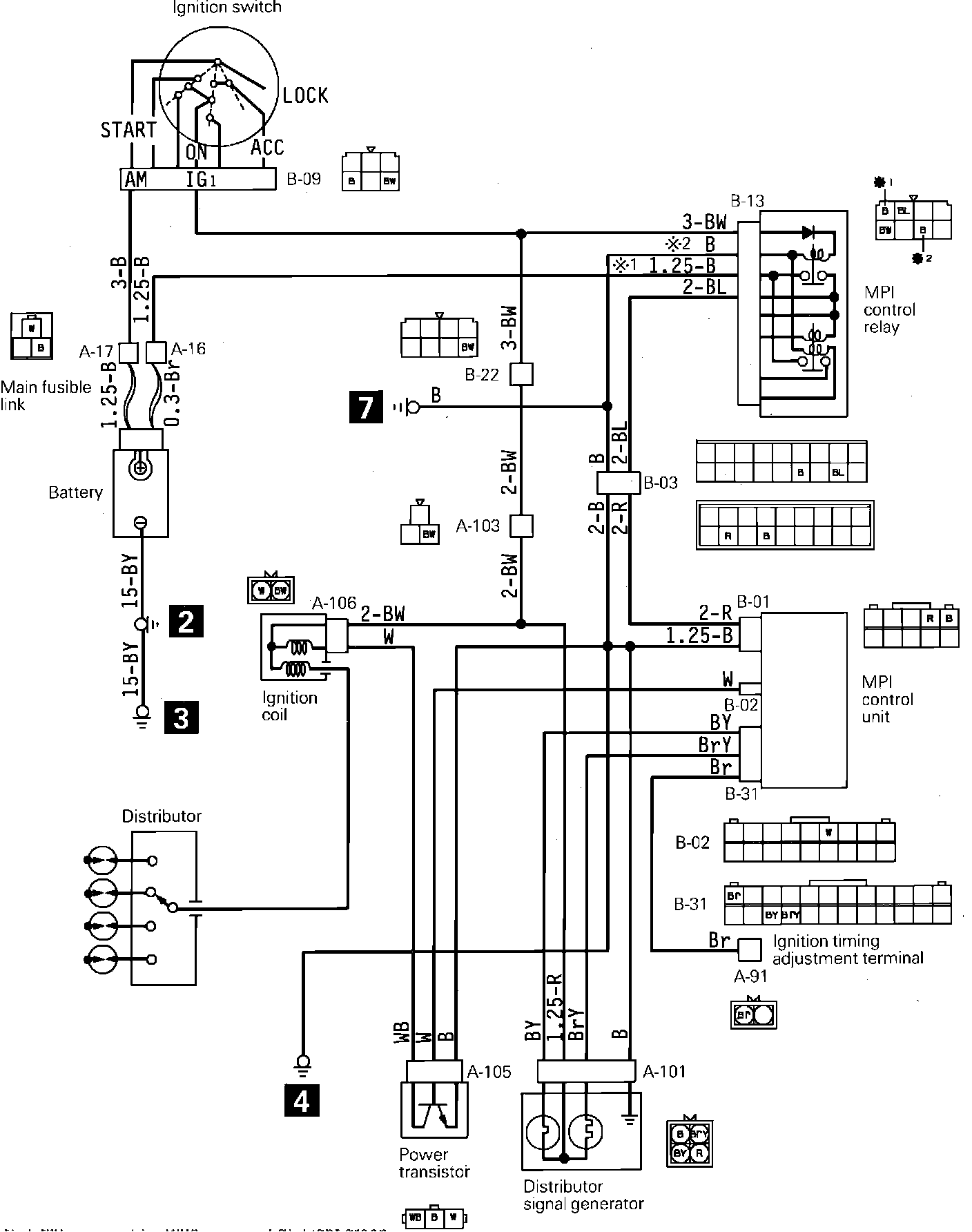

Ignition System - Fuel Injected:
