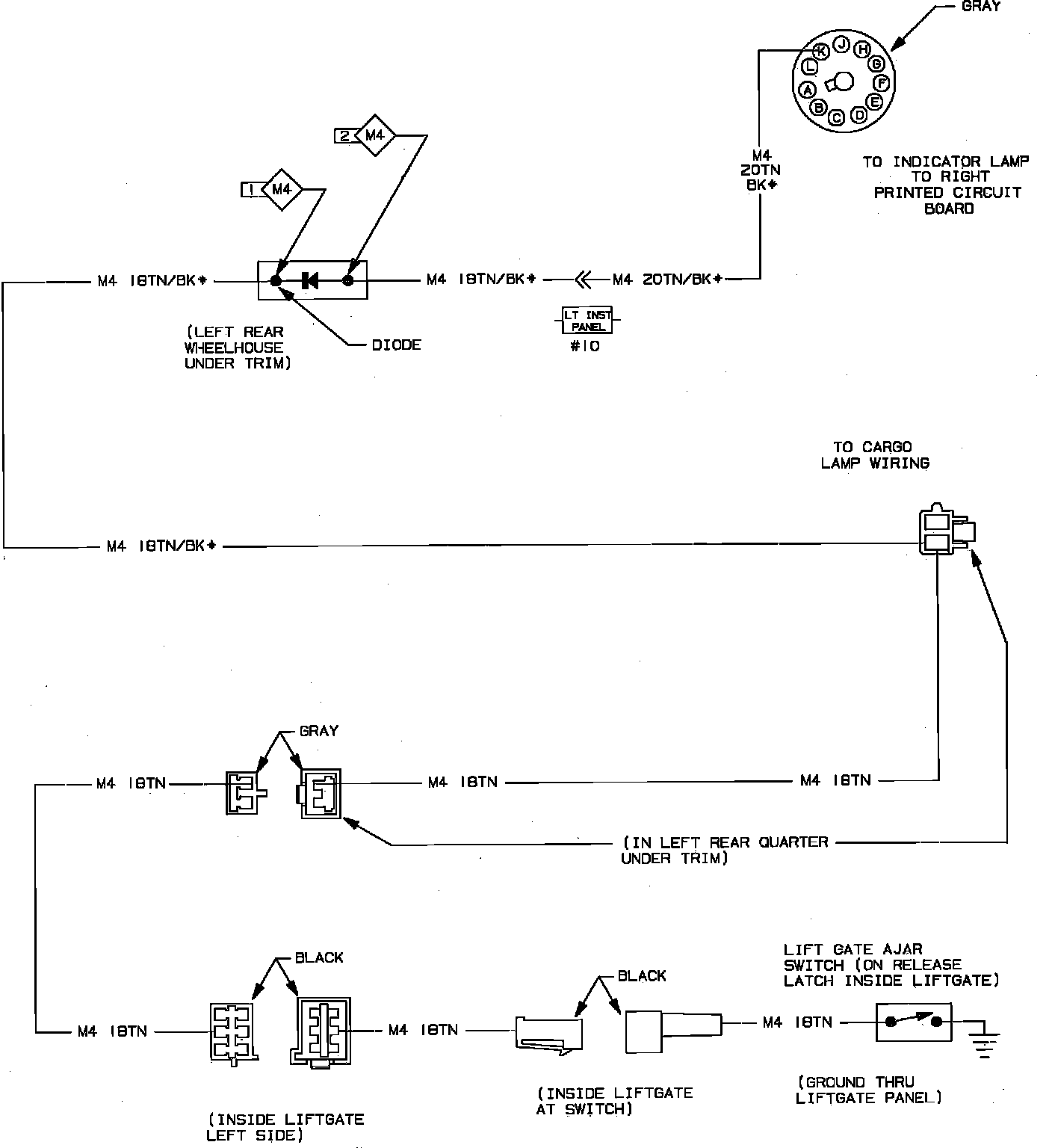

Liftgate Ajar Indicator Wiring Circuit
Liftgate Ajar Indicator Wiring Circuit
Liftgate Ajar Warning System Wiring Circuit:
