Home
>>
Dodge
>>
1988
>>
600 L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Brake Switch (Cruise Control)
Brake Switch (Cruise Control)

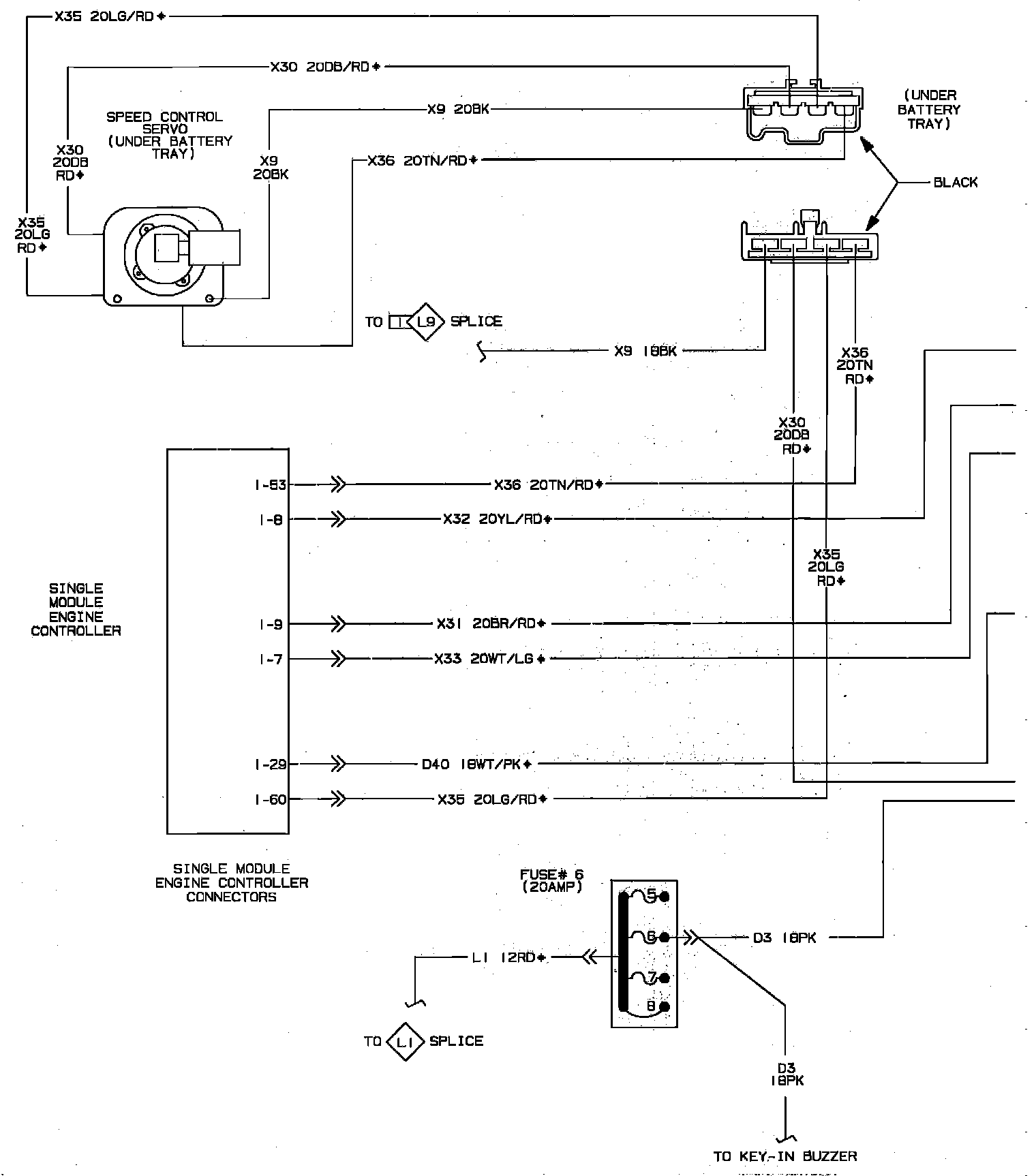

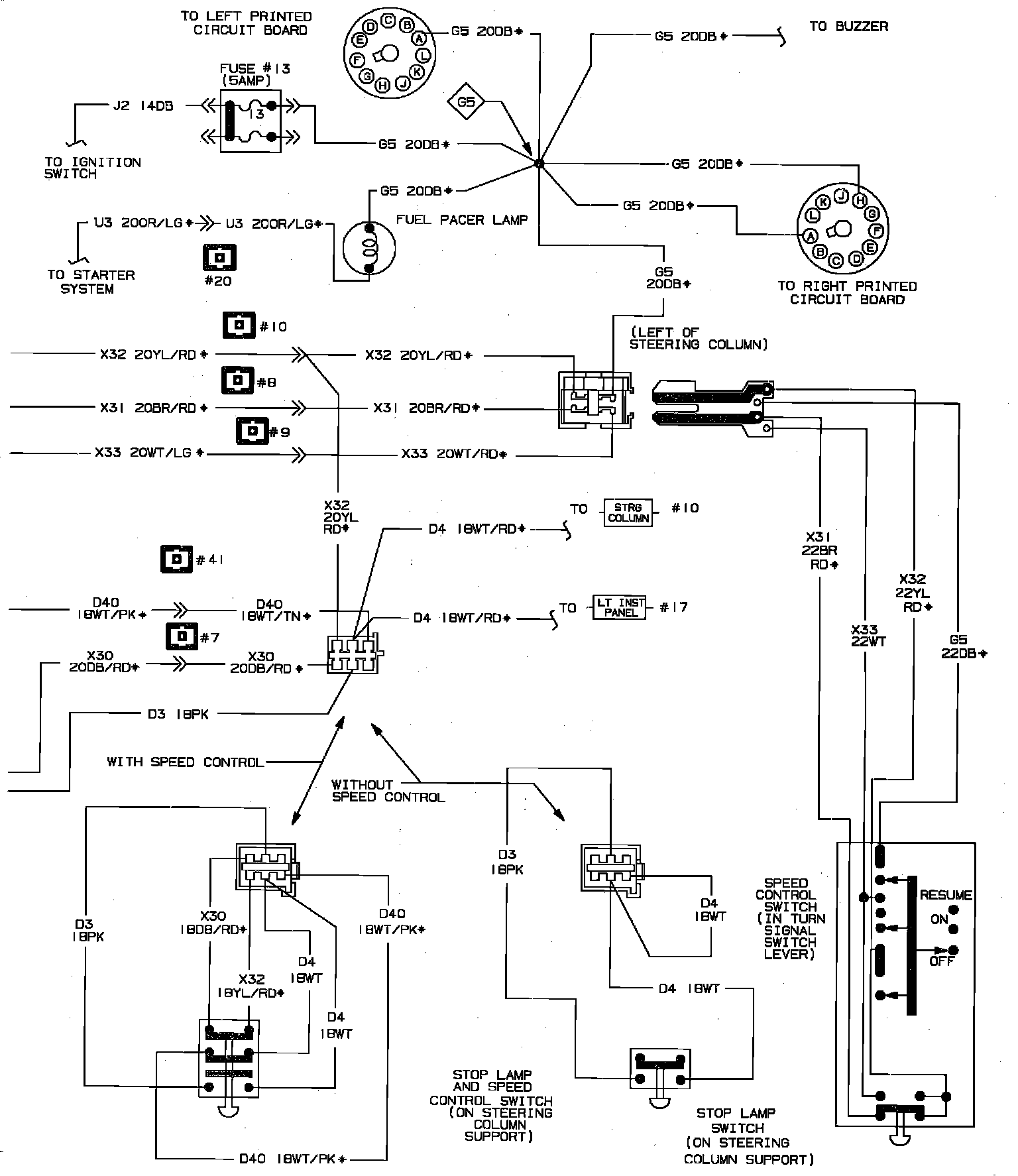

Speed Control Switch & Stop Lamp Wiring Circuit:
Speed Control Switch & Stop Lamp Wiring Circuit:
