600 L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-4A System Power Supply Circuit
SC-4A System Power Supply Circuit

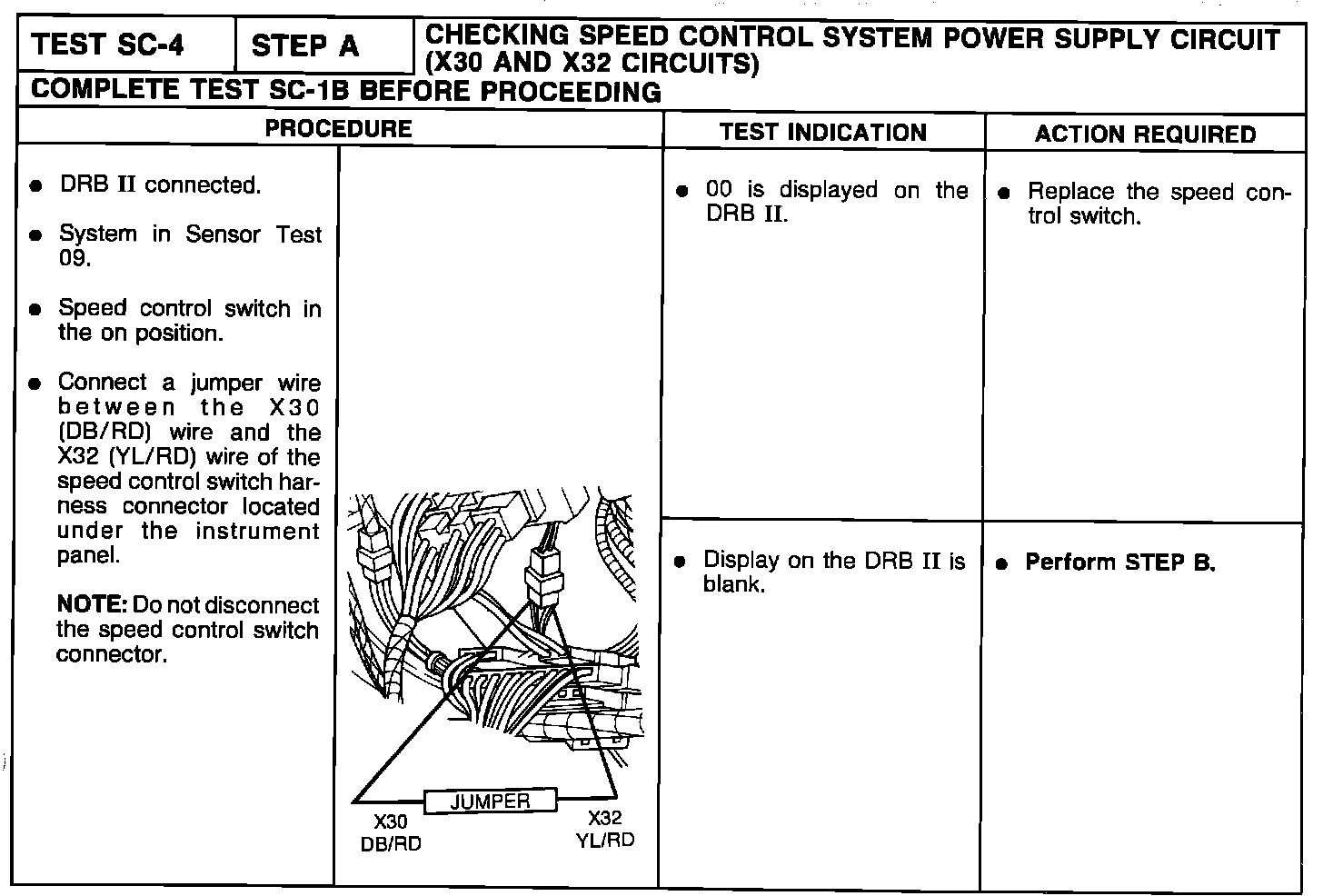

Test 4-Step A, System Power Supply Circuit:
