Home >> Dodge >> 1987 >> Shadow L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 3

Part 3

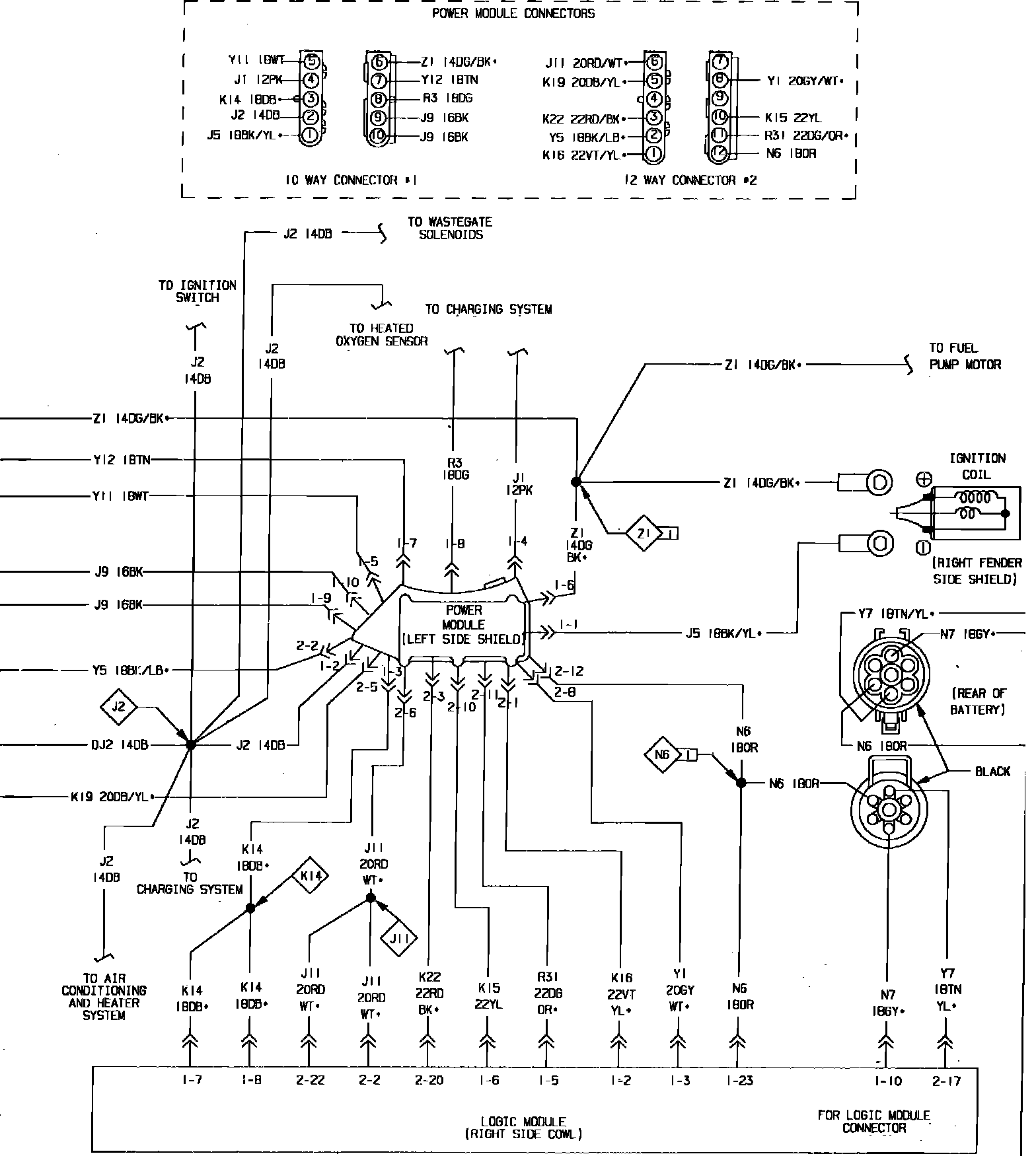

Fig. 19 Electronic Fuel Injection Ignition System Wiring Circuit (Part 3 of 5). With Turbocharger:
