Home >> Dodge >> 1987 >> Shadow L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Part 2

Part 2

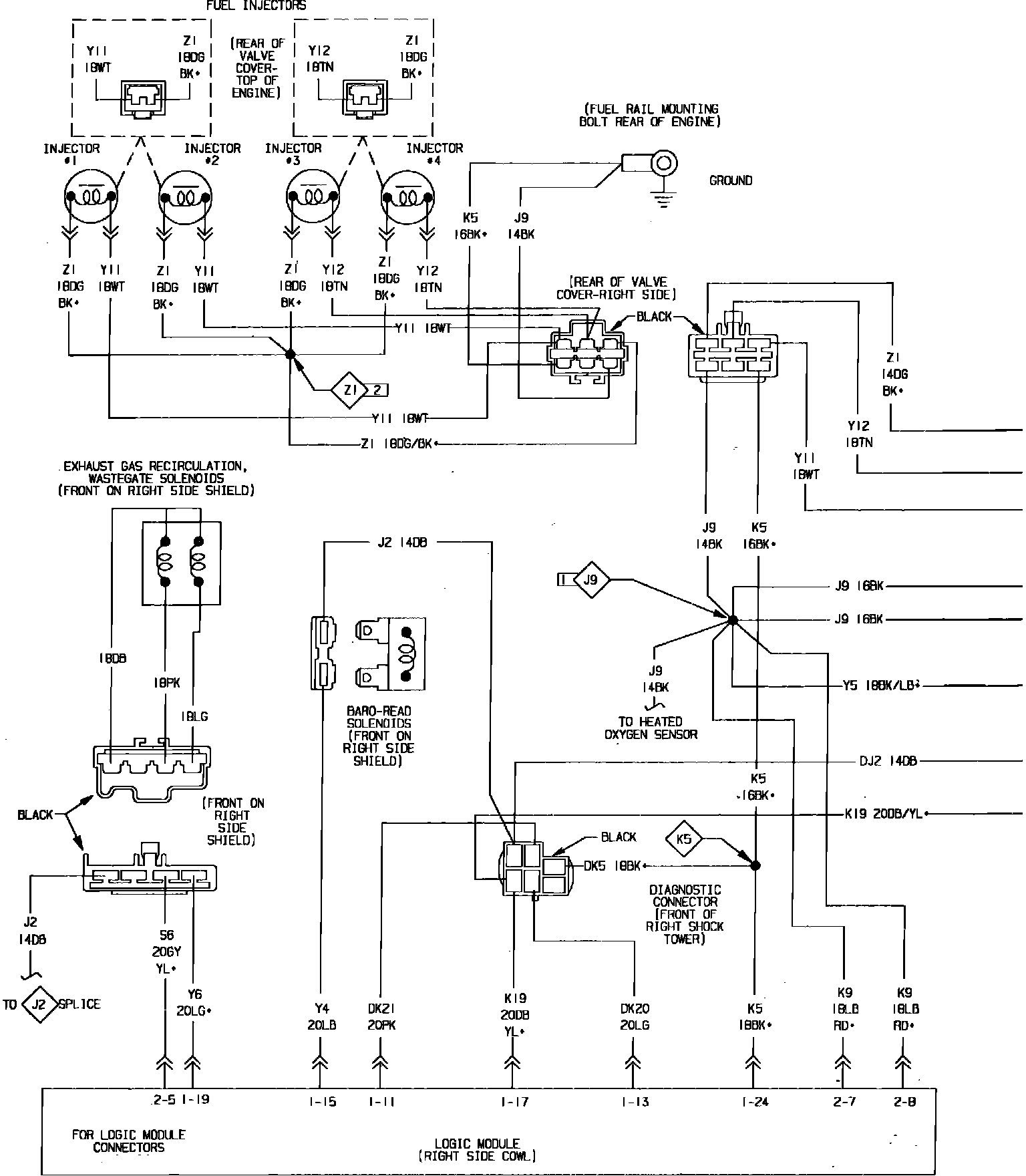

Fig. 19 Electronic Fuel Injection Ignition System Wiring Circuit (Part 2 of 5). With Turbocharger:
