Dodge
>>
1987
>>
Shadow L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
System Diagram
>>
Fuel Tank System Wiring Circuit
Fuel Tank System Wiring Circuit

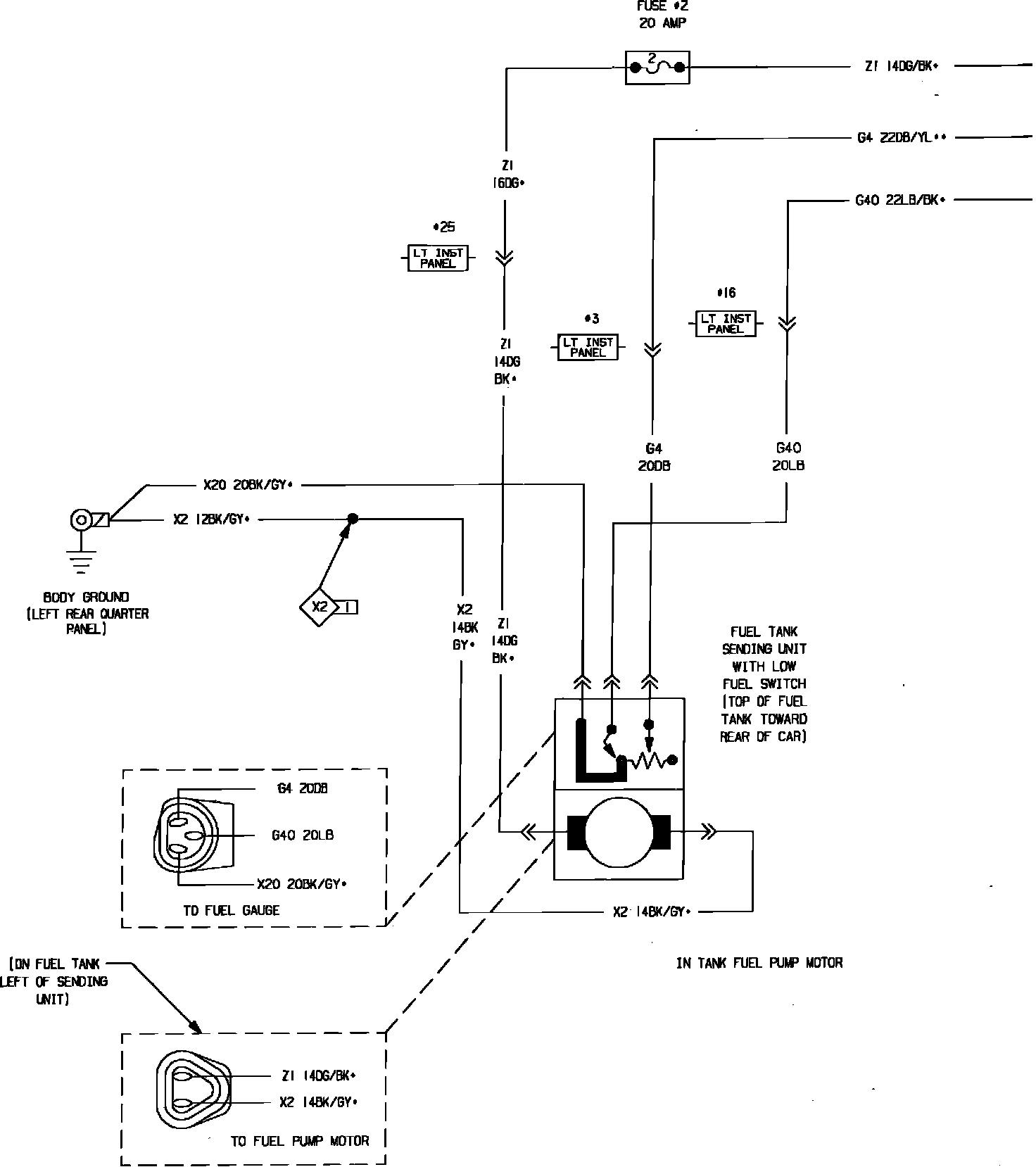

Fig. 21 Fuel Tank System Wiring Circuit (Part 1 of 2):
