SC-3B Speed Control Servo Operation
SC-3B Speed Control Servo Operation

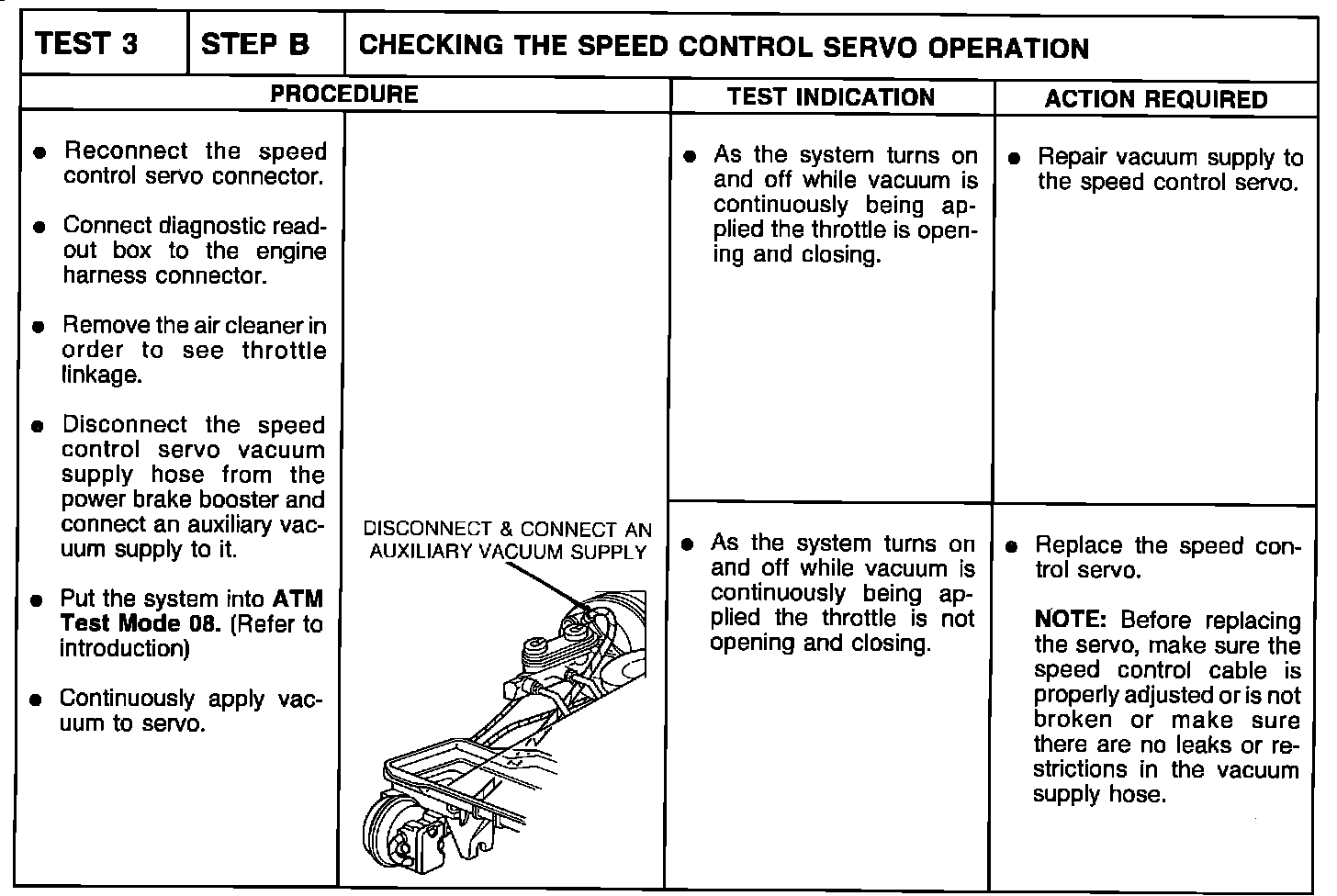

Test 3-Step B, Speed Control Servo Operation:
