Shadow L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-2F S/C Vacuum Solenoid Wire to the Logic Module
SC-2F S/C Vacuum Solenoid Wire to the Logic Module

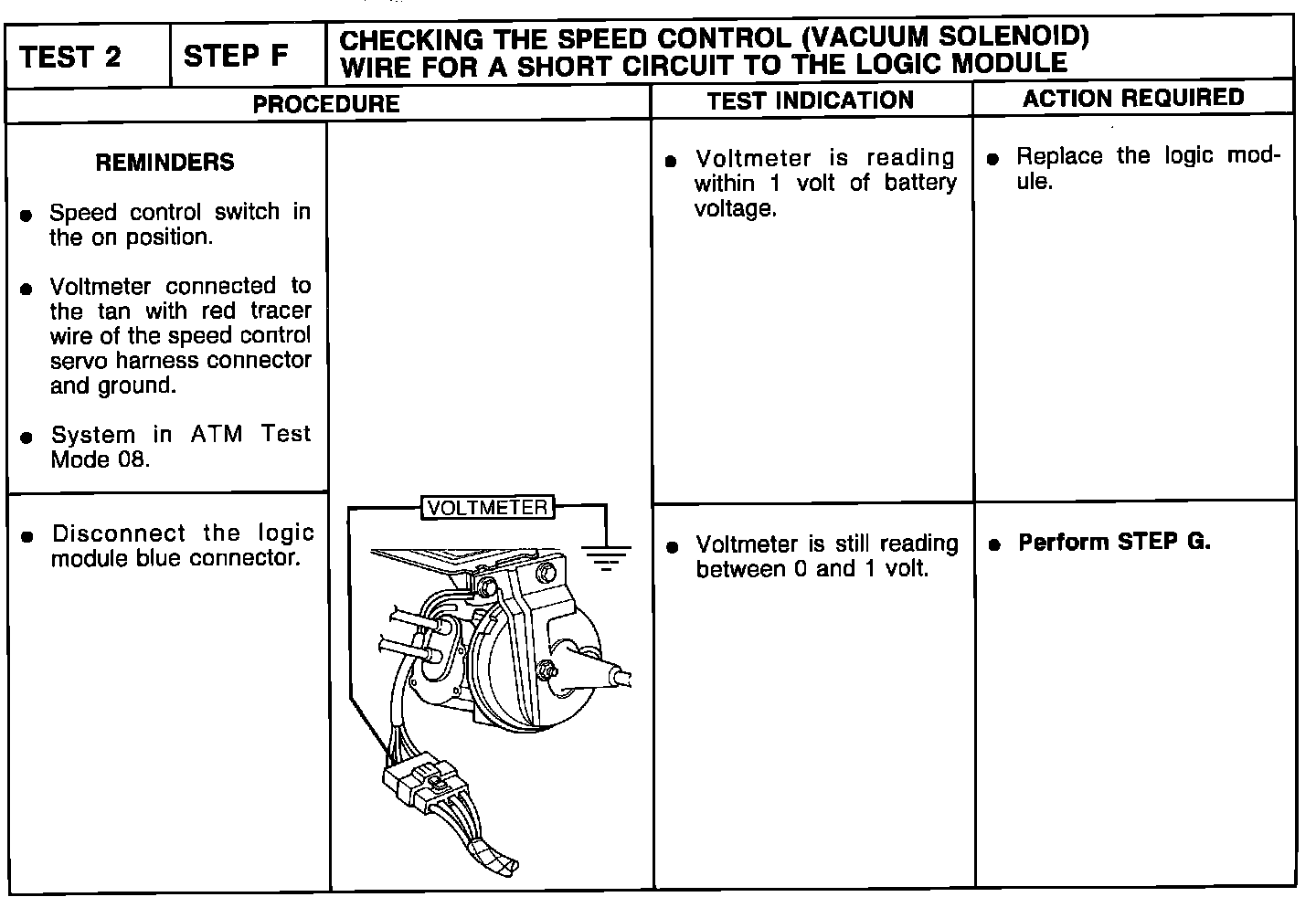

Test 2-Step F, S/C Vacuum Solenoid Wire To The Logic Module:
