Shadow L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-2E S/C Vacuum Solenoid to the Logic Module
SC-2E S/C Vacuum Solenoid to the Logic Module

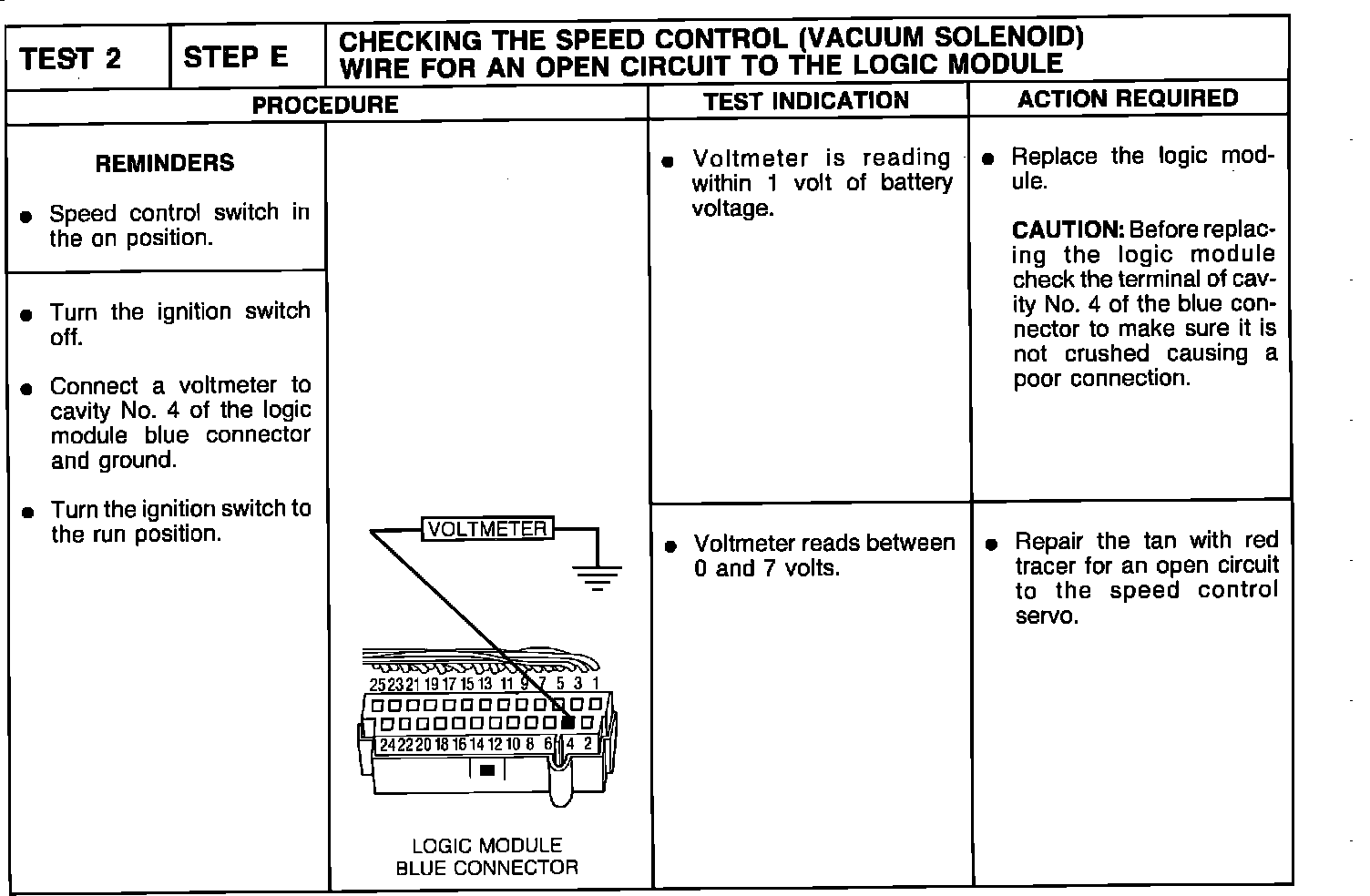

Test 2-Step E, S/C Vacuum Solenoid To The Logic Module:
