CH-5C Field Control Wire to the Power Module
CH-5C Field Control Wire to the Power Module

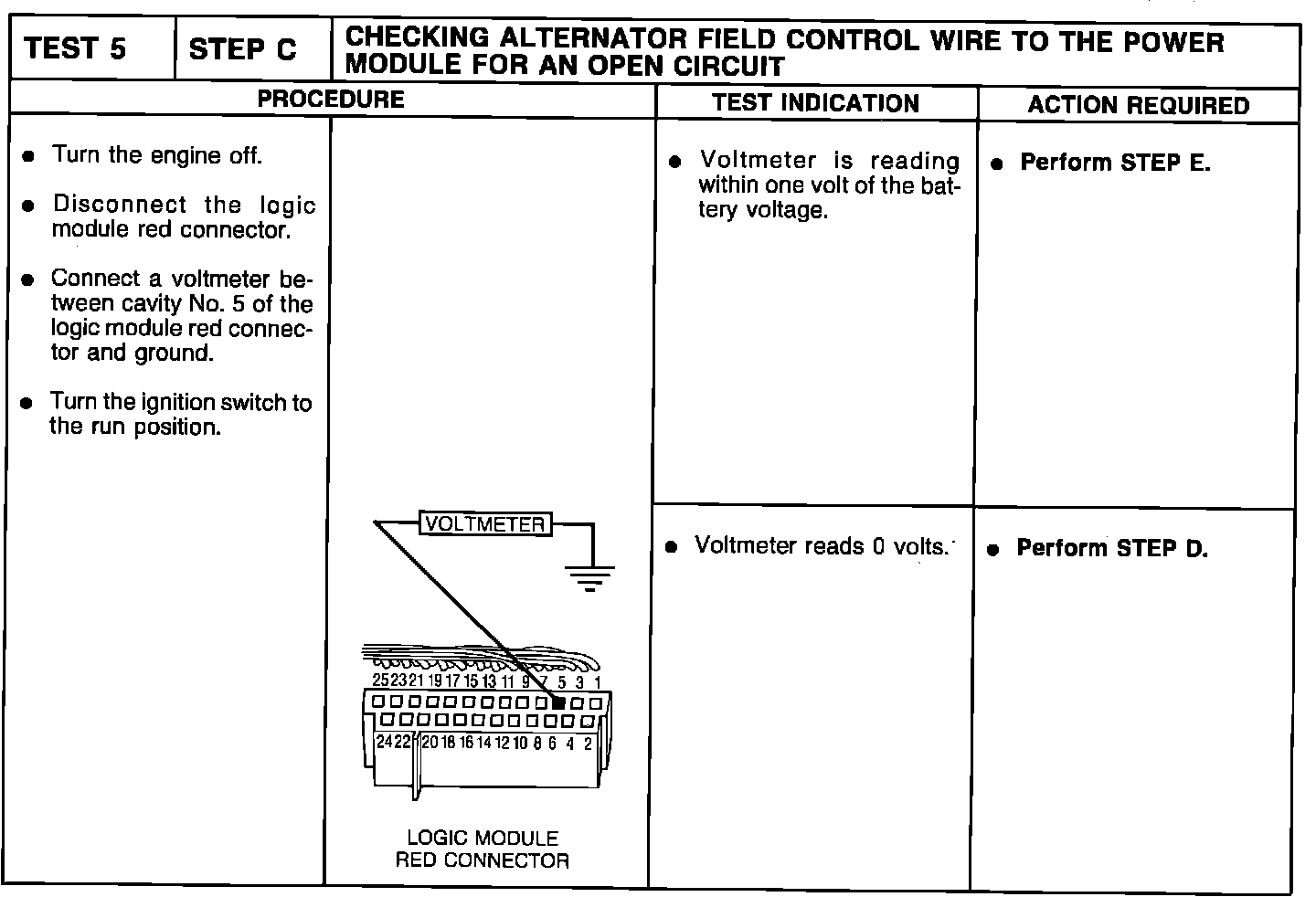

Test 5-Step C, Field Control Wire To The Power Module:
