Shadow L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Charging System (CH) Tests
>>
CH-5B Field Control Circuit at the Logic Module
CH-5B Field Control Circuit at the Logic Module

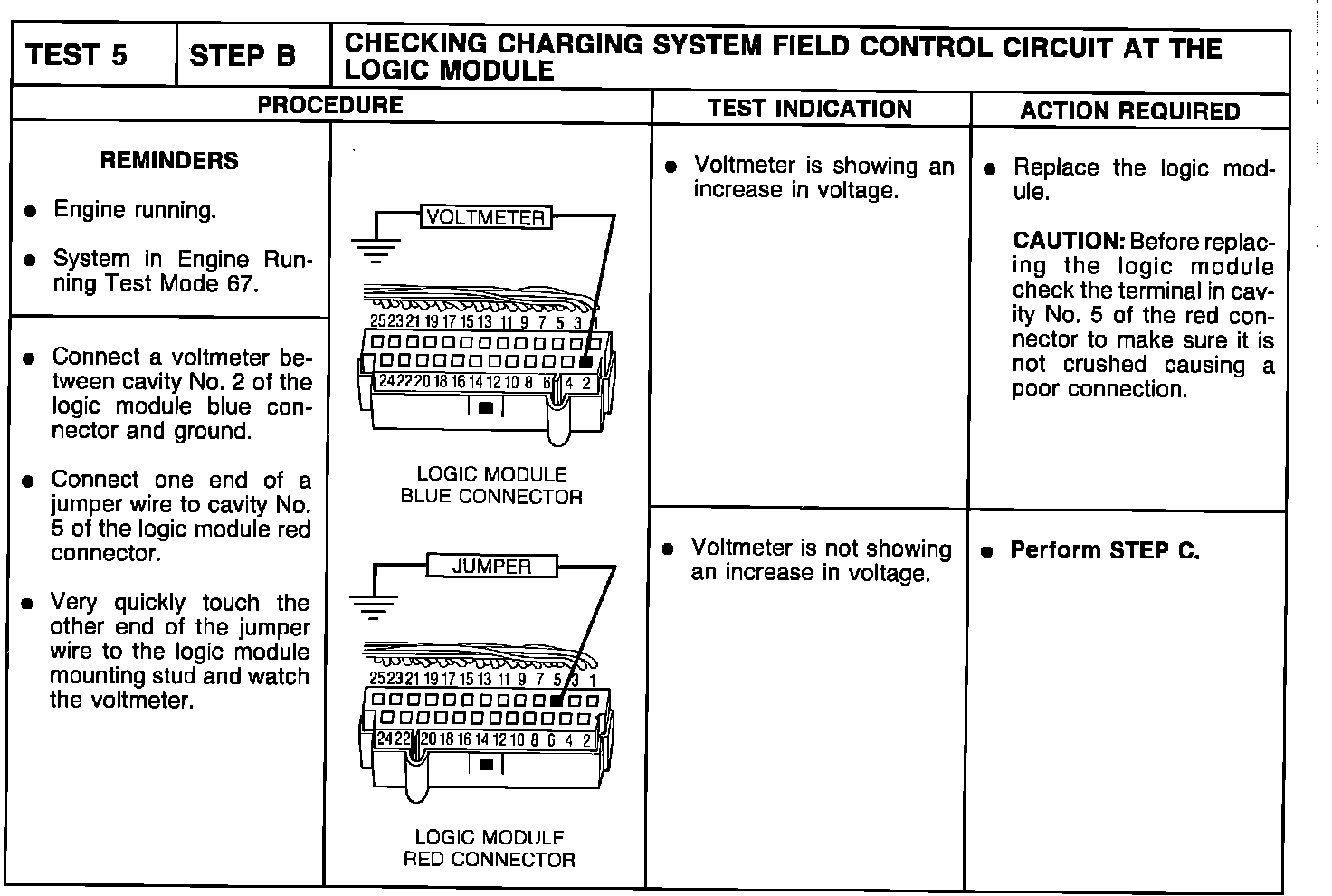

Test 5-Step B, Field Control Circuit At The Logic Module:
