Instrument Panel Circuit Board
Instrument Panel Circuit Board

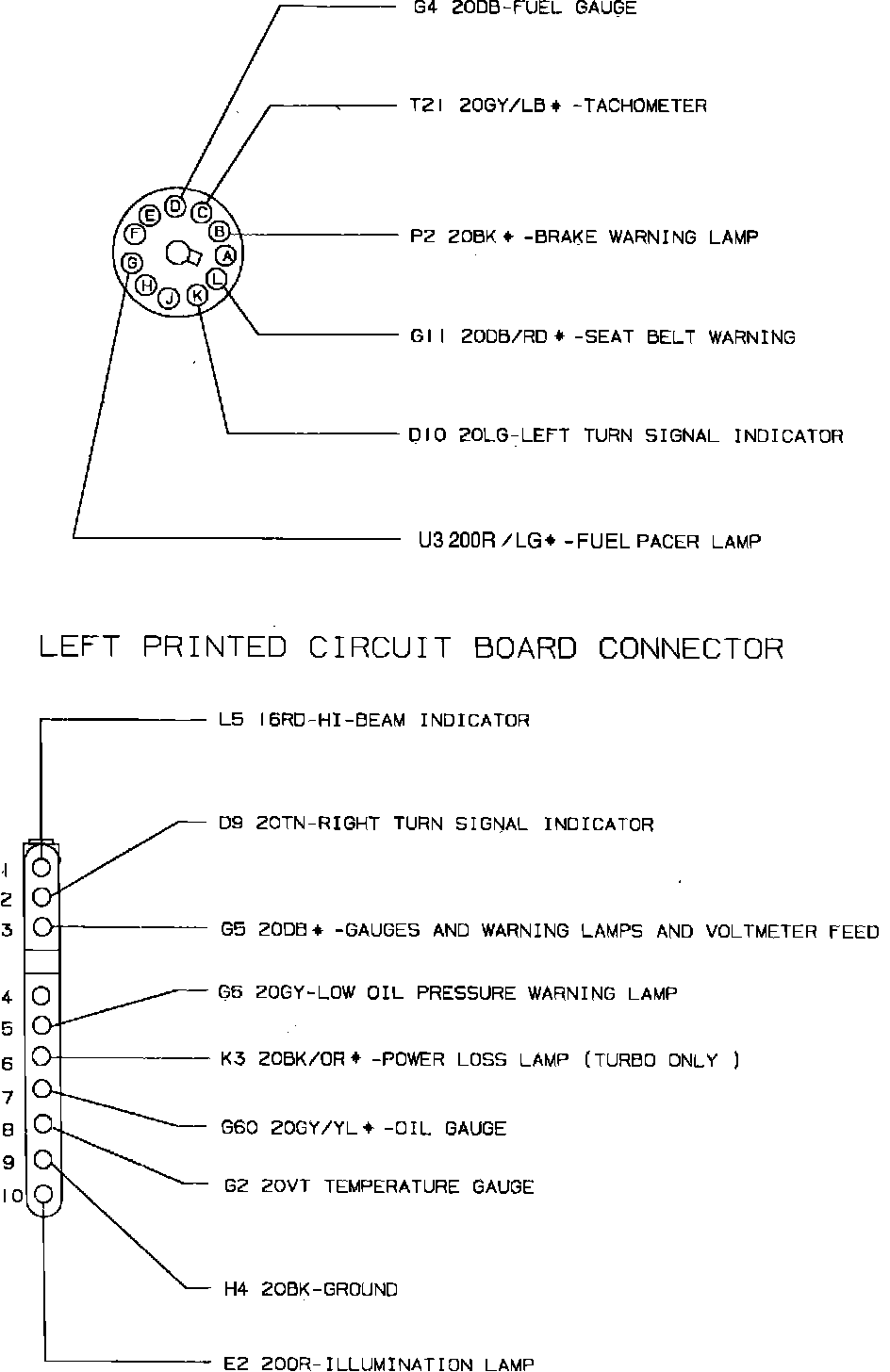

Fig. 3 Printed Circuit Board Connector:
