Liftgate Wiper & Washer System
Liftgate Wiper & Washer System

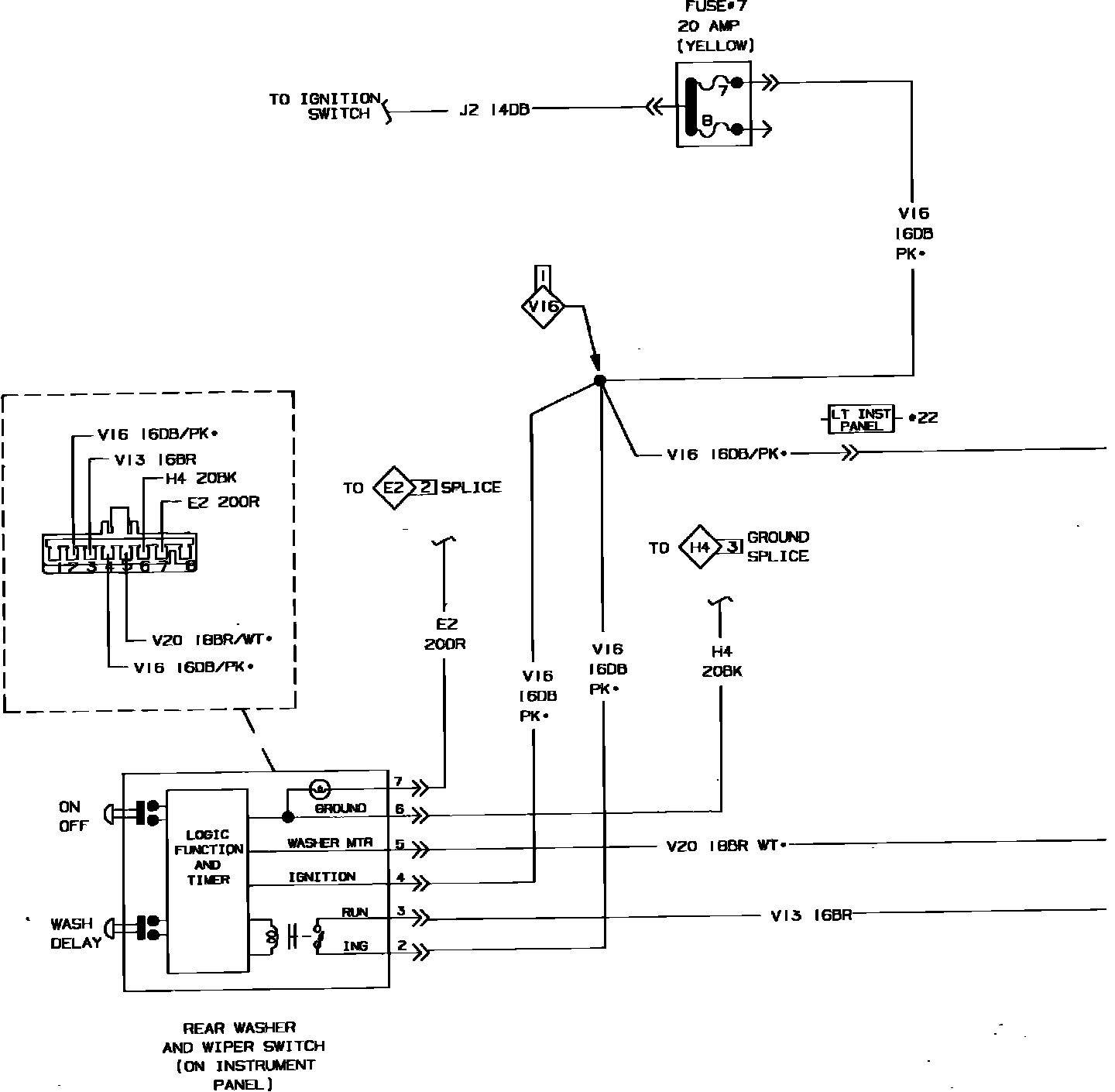

Fig. 59 Wiper & Washer System Wiring Circuit (Part 1 of 2). Liftgate:

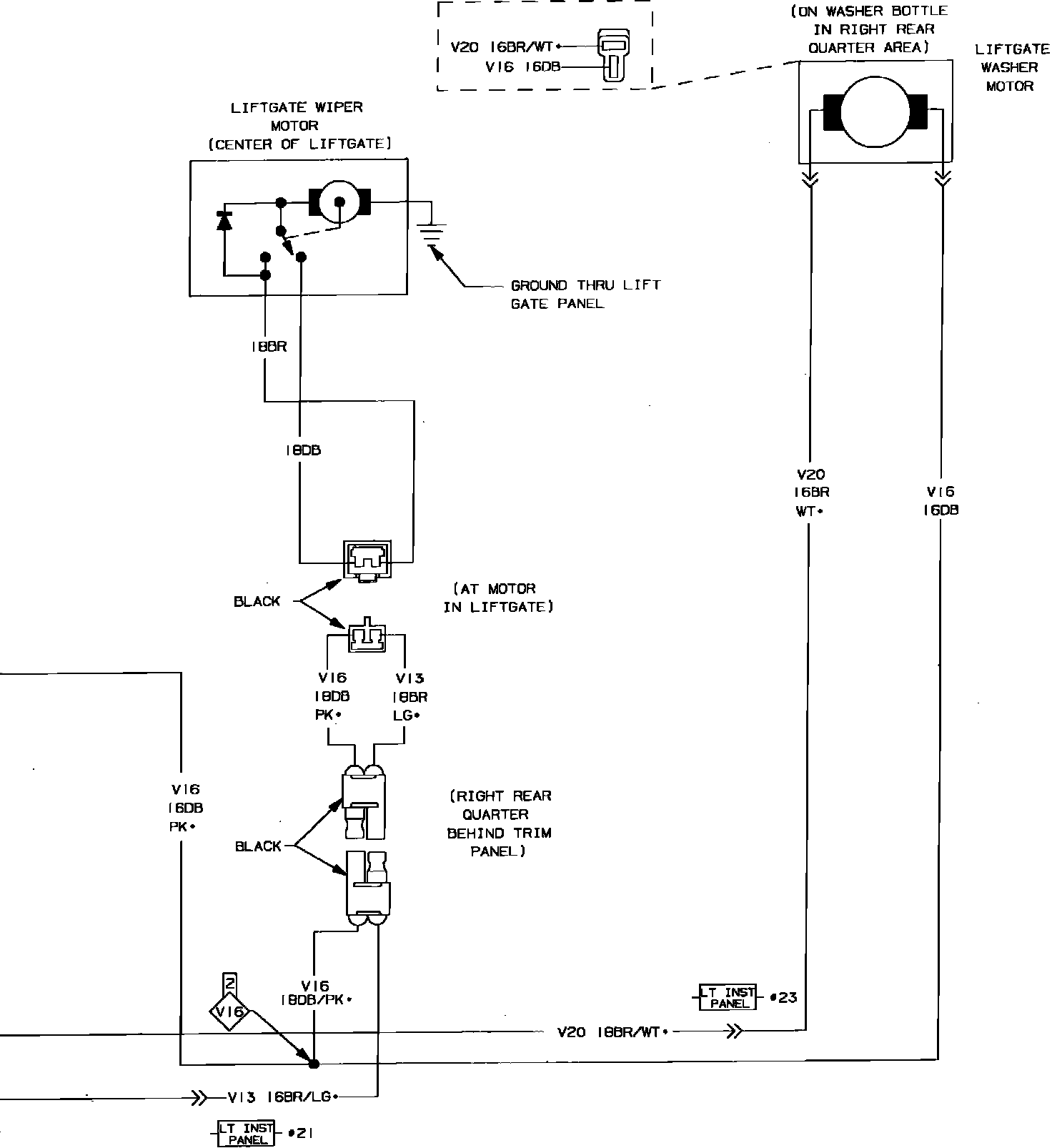

Fig. 59 Wiper & Washer System Wiring Circuit (Part 2 of 2). Liftgate:
