Electrical Diagrams

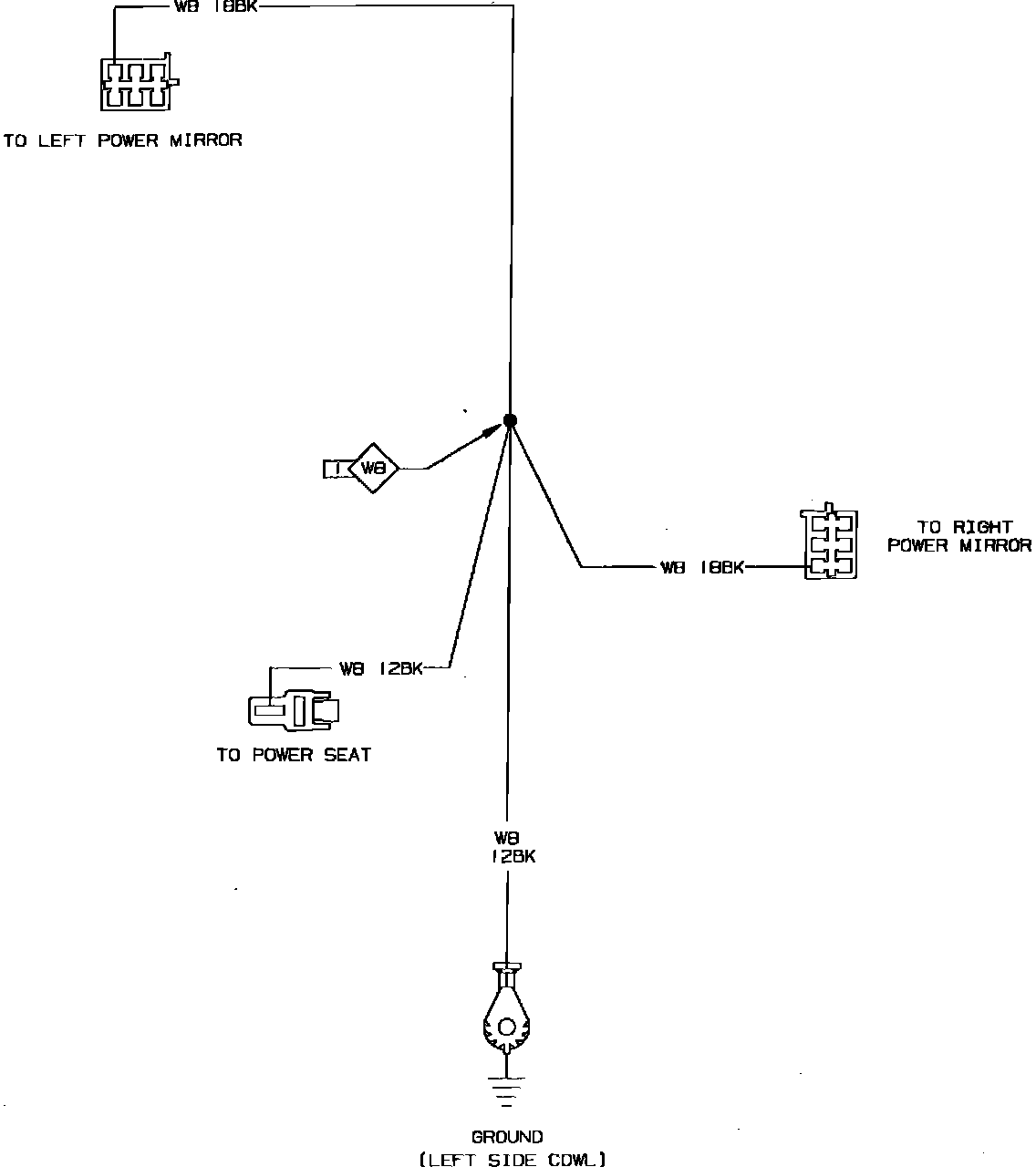

Fig. 45 Door Electrical Systems Ground Wiring Circuit. Less Power Door Locks:

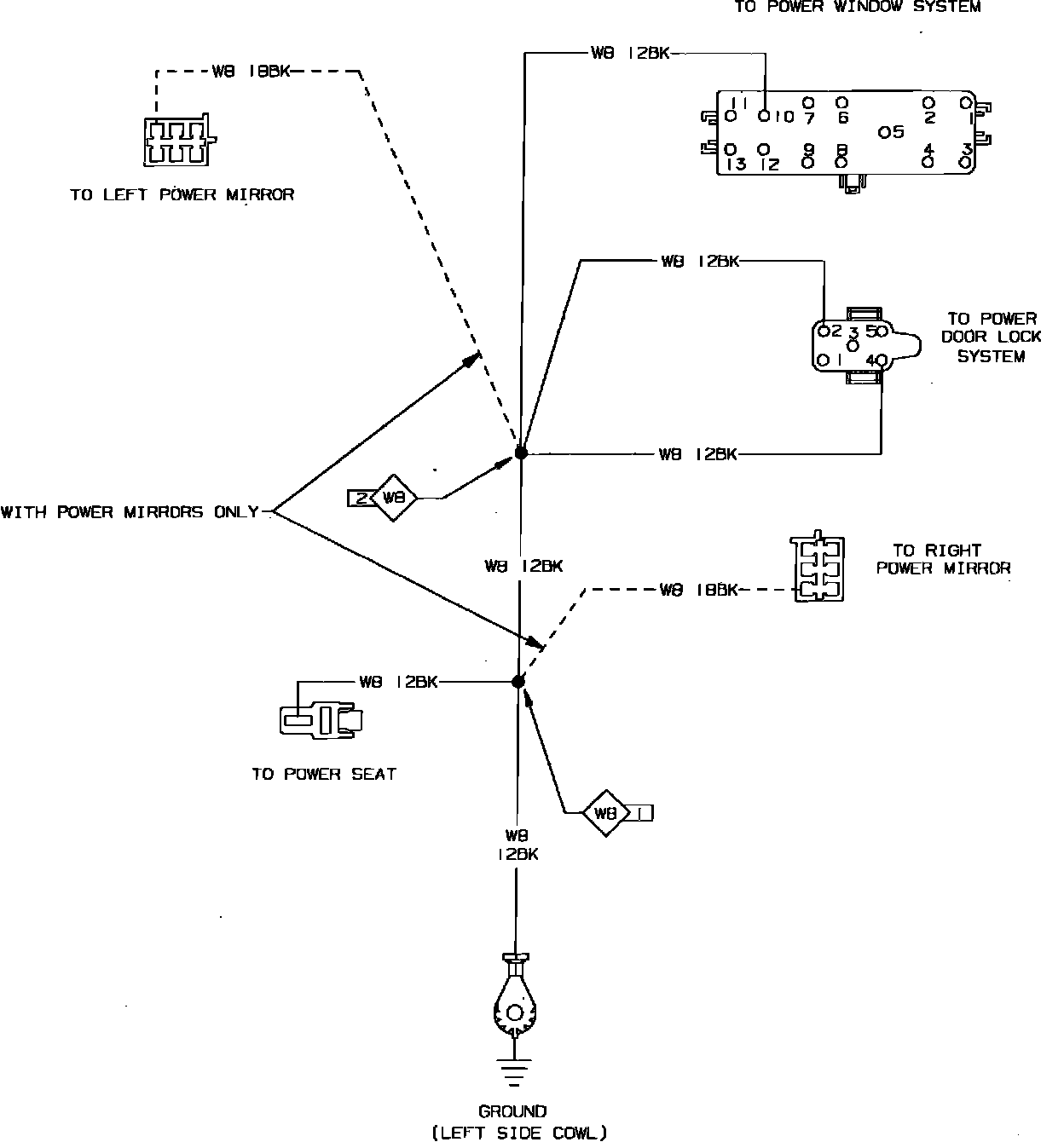

Fig. 46 Door Electrical Systems Ground Wiring Circuit. With Power Door Locks:
