Lancer L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Body, Cowl & Steering Column Splices
>>
Body Side Splices
Body Side Splices

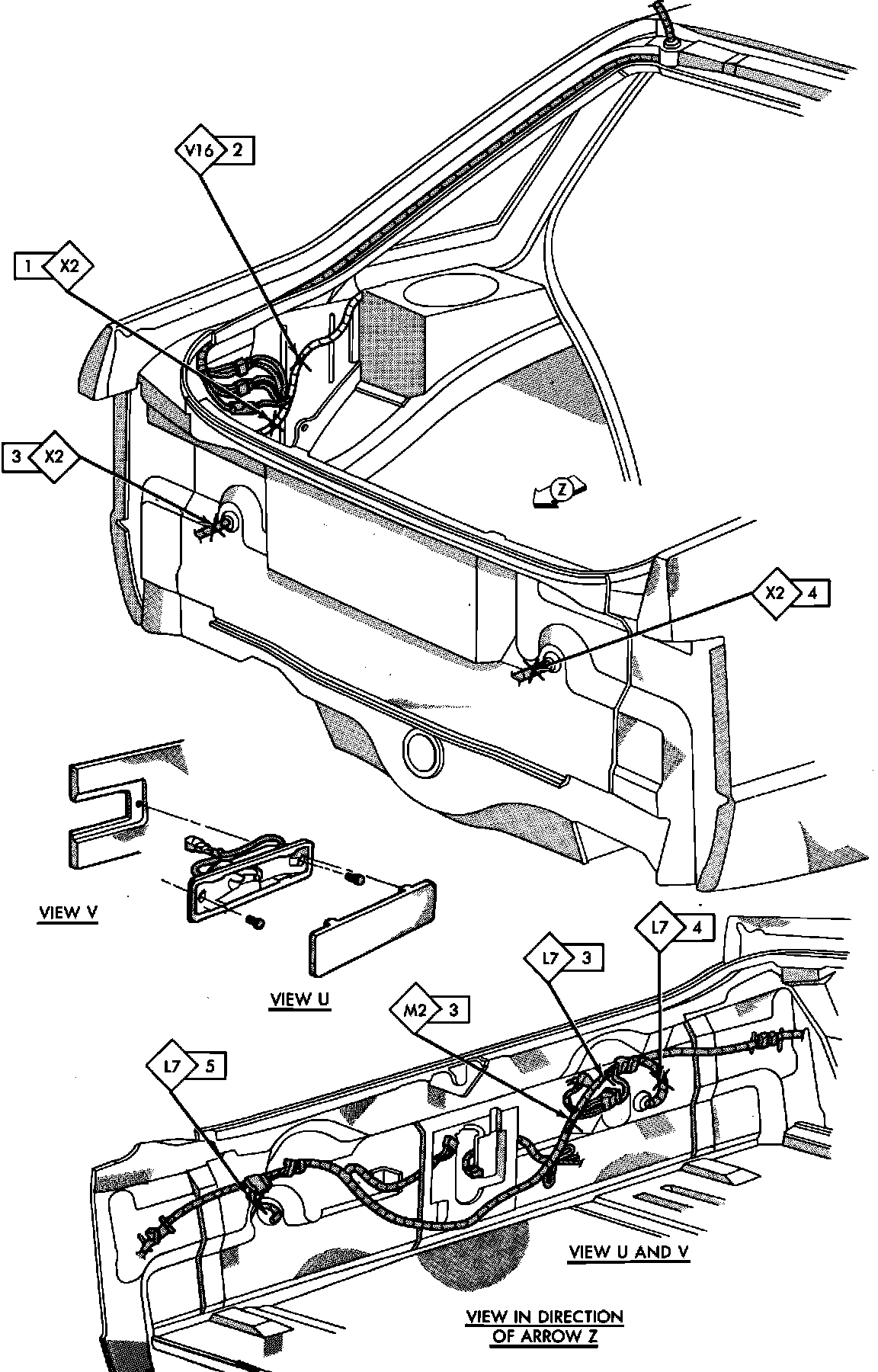

Fig. 62 Splice Location. Body Left Side:

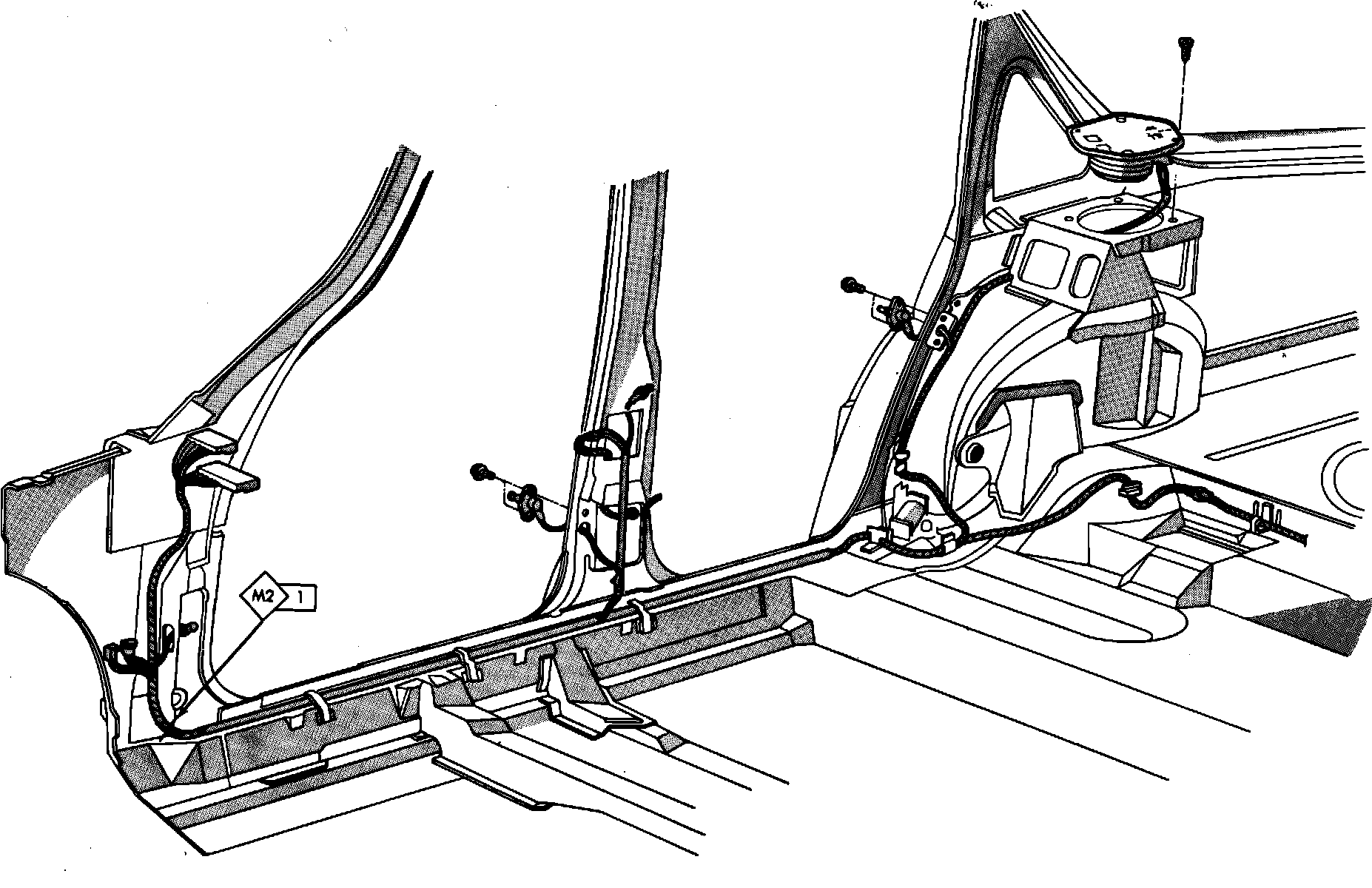

Fig. 63 Splice Location. Body Right Side:
