Refrigerant System Diagnosis Chart
Refrigerant System Diagnosis Chart

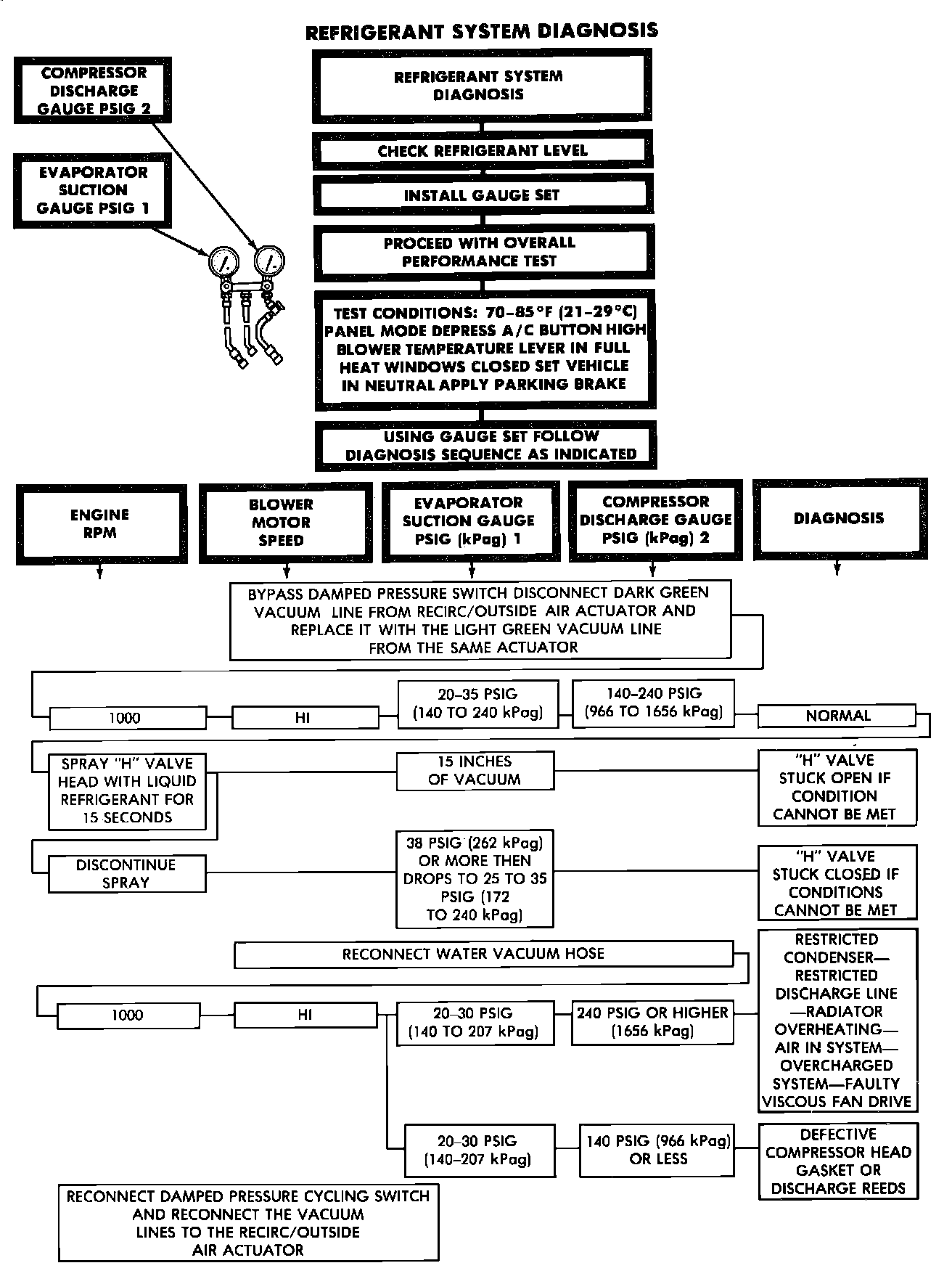

Refrigerant Diagnosis Chart. Front Wheel Drive cars Exc. Horizon & Omni:
