Without Intermittent Wiper System
Without Intermittent Wiper System

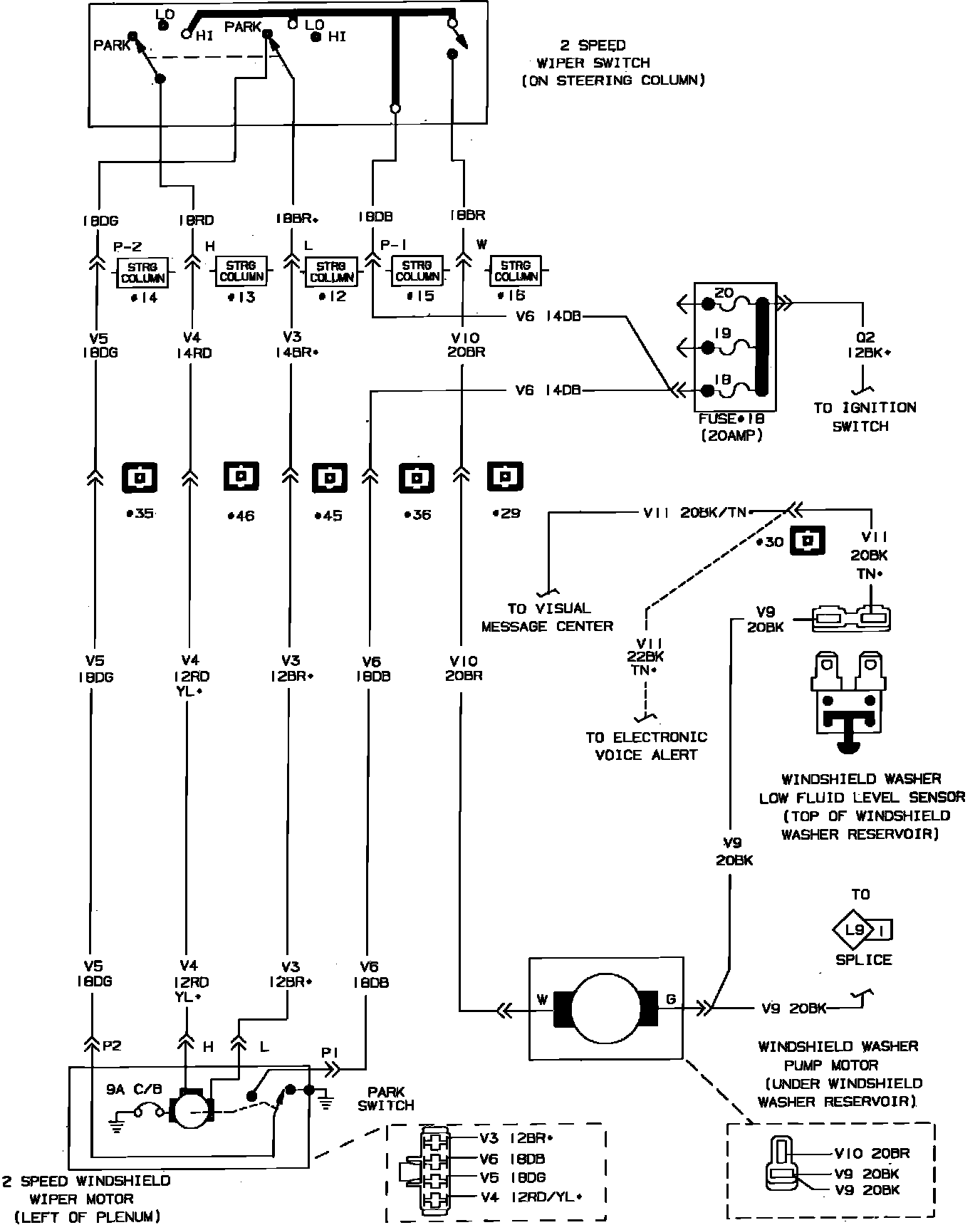

Fig. 57 Windshield Wiper System Wiring Circuit. Less Intermittent:
