Fuel Tank System Wiring Circuit
Fuel Tank System Wiring Circuit

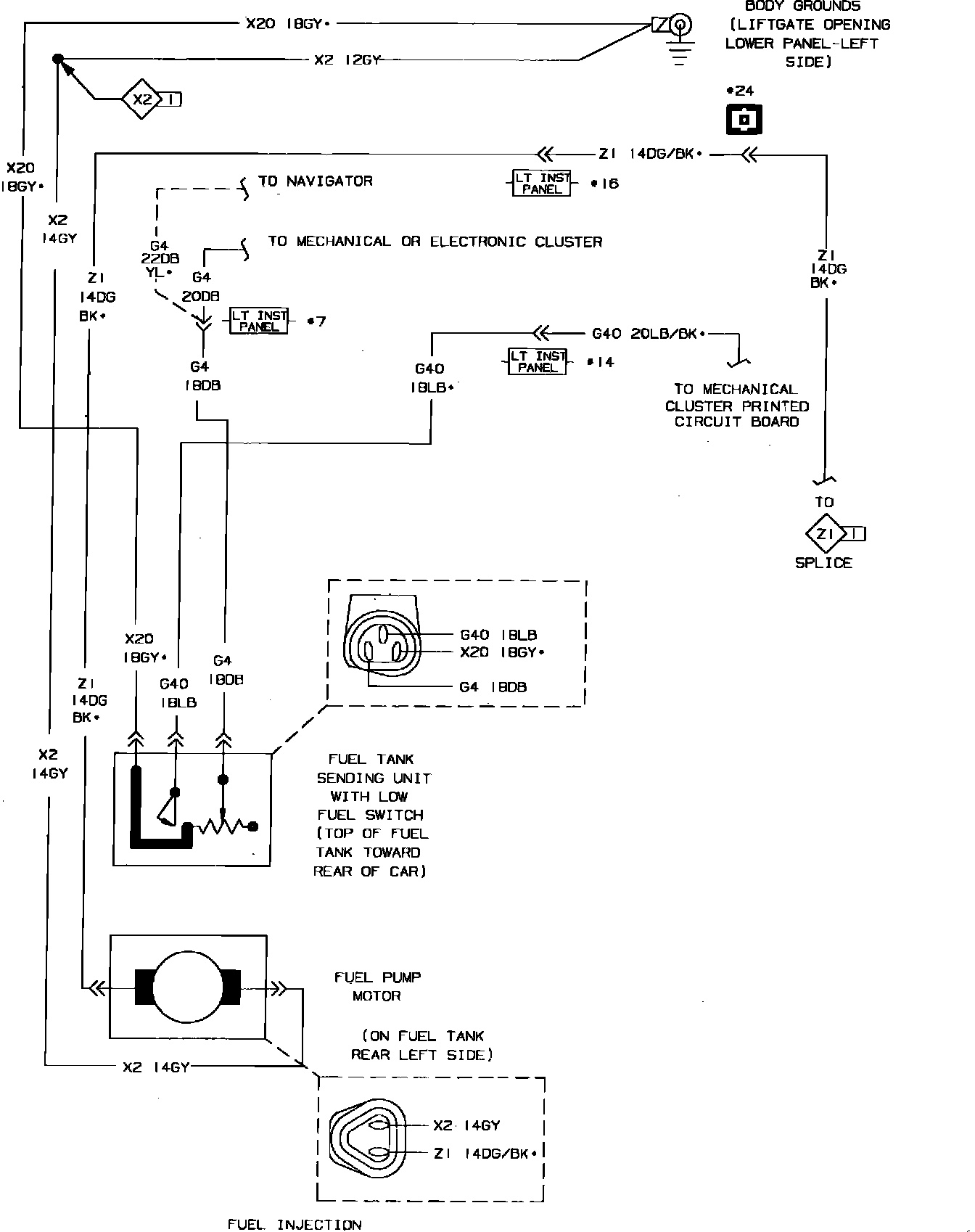

Fig. 30 Fuel Tank System Wiring Circuit:
