Headlamp Switch Controlled Interior Lighting

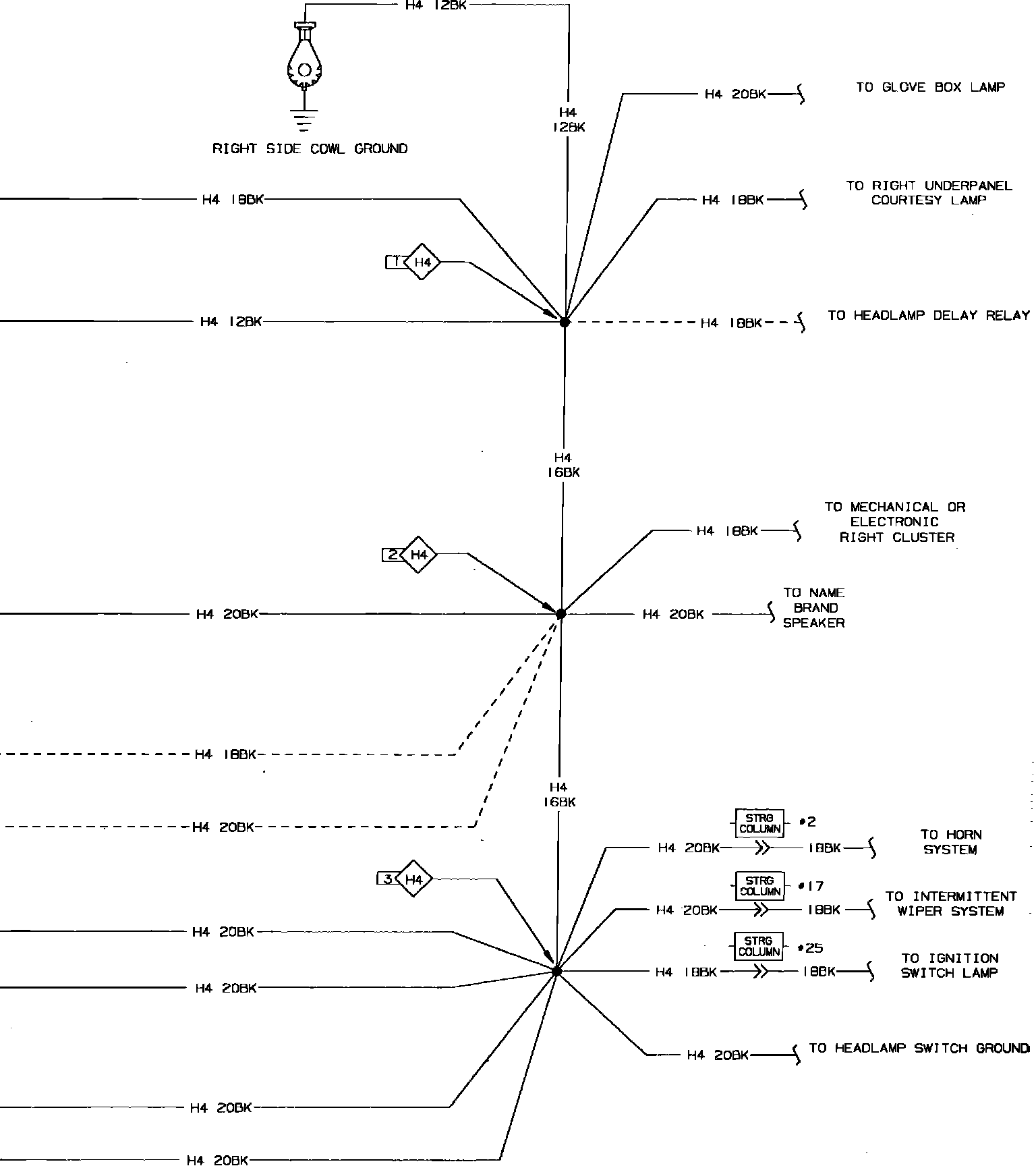

Fig. 34 Headlamp Switch Controlled Interior Lighting Wiring Circuit (Part 1 of 2):

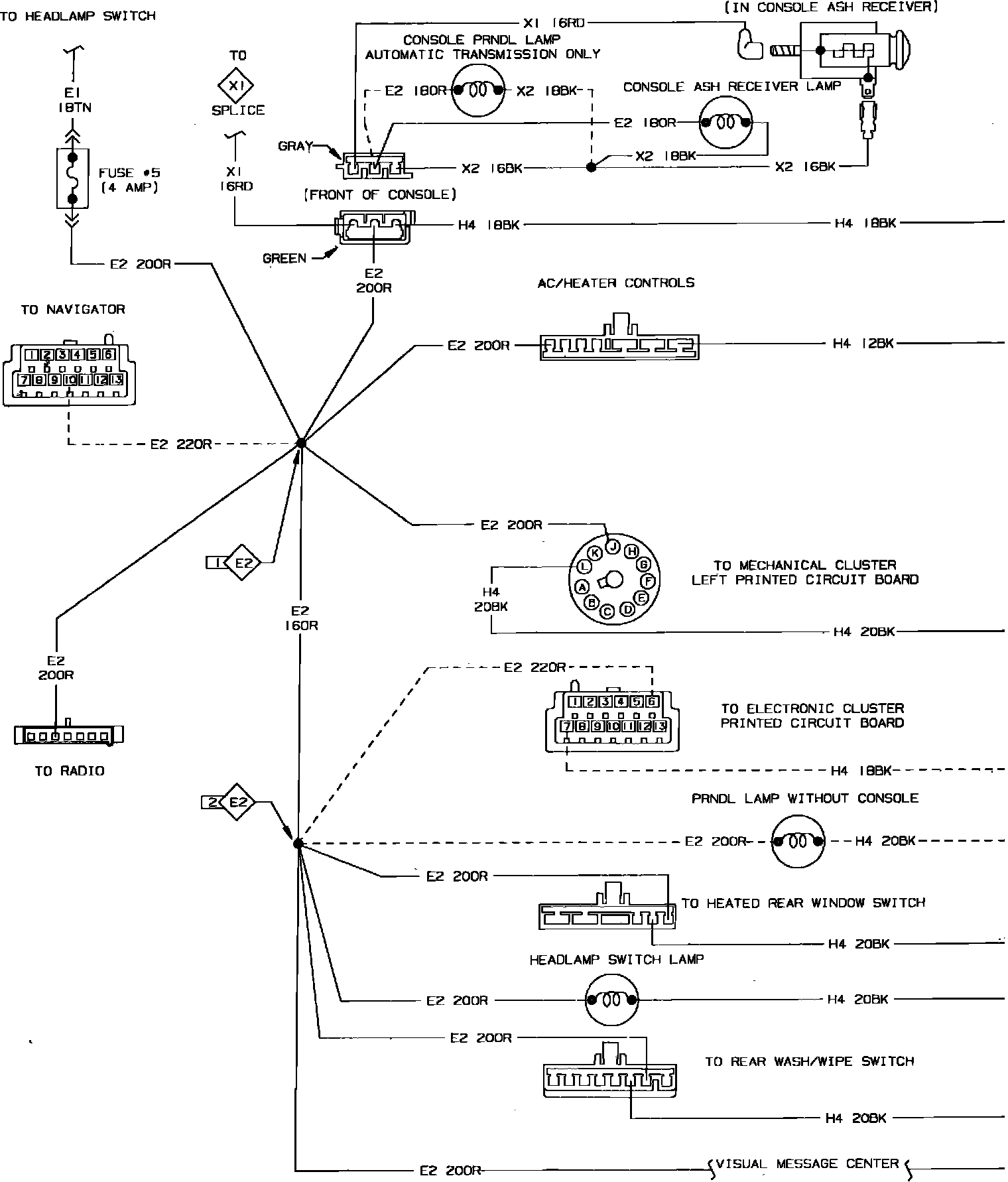

Fig. 34 Headlamp Switch Controlled Interior Lighting Wiring Circuit (Part 2 of 2):
